Product Description
Service Life: 6-10 Years
Size: Large
Color: Green
Condition: New
Wheel-Driving: 5060×2330×2983
Gear Shift: 16f+8r Starting
Method: Electric
Package: Standard
Specification: standard
Origin: Weifang, Shandong, China HS
Code: 8701901190
1.Parking brake: Disc brake;
2.Flexible and stable mesh sleeve shift;
3.Full hydraulic front-wheel steering with independent circuit;
4.Gearbox is 4X(2+1)×2 shuttle shift,8 forward gears+ 4 reverse gears;
5.Rear semi-independent Power Output, with 6-spline 540/1000 r/min;
6.The use of a simple floor structure and an external divider is easy for maintenance;
7.Adopt YTO engine, Chinese famous diesel engine , big brand, quality assurance;
8.Rear three-point linkage, tire (front wheel+rear wheel) is 6.50-16+11.2-24
9.Planet-gear Final Transmission with small volume and large reduction ratio;
10.Planet-gear Final Transmission with small volume and large reduction ratio;
11.9-inch single or double action clutch & Semi-split lifter LT354 types of four wheels farm tractor ,full hydraulic steering;

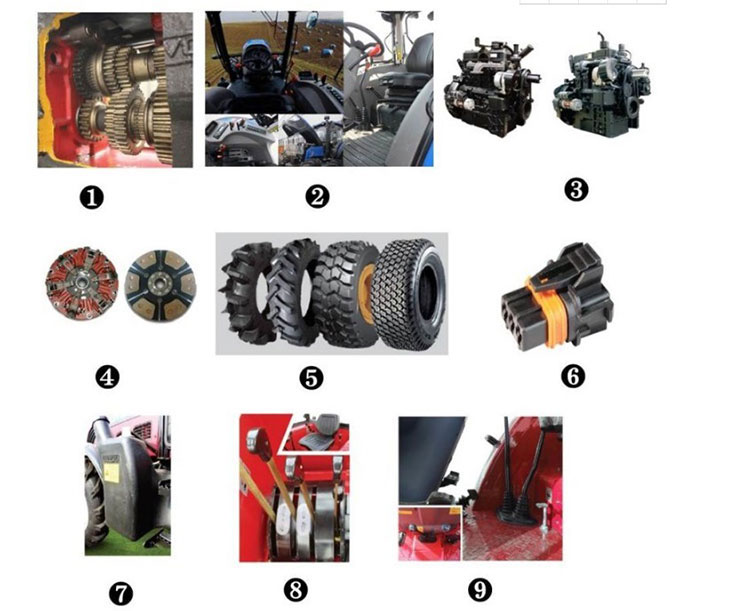

Detailed Images
Parameter
HB1354,HB1454,HB1504 | ||||||||
Model | 1304 | 1354 | 1454 | 1504 | 1604 | |||
Tractor | ||||||||
4×4 | ||||||||
Wheel-Driving | 5060×2330×2983 | 5060×2345×2940 | ||||||
Dimensions | 5510 | 5700 | ||||||
Weight(kg) | 1784,1792,1912,1954,2074,2082,2202 | |||||||
Front Wheel Tread(mm) | 1650~2285 | 1620~2420 | ||||||
Rear Wheel Thread(mm) | 2582 | |||||||
Wheel Base(mm) | 480 | |||||||
Gear Shift | 16F+8R | |||||||
Tyre | 14.9-24/18.4-34 | 14.9-26/18.4-38 | ||||||
Engine | ||||||||
Model | QC6108/LR6M5-T90 | QC6110/LR6A3Z | LR6M3Z-T173 | QC6105Z/LR6M3Z-T146X | LR6M3Z-T146Y | |||
Engine | Water cooling,Vertical,4 Stroke,Direct Injection | |||||||
Rated Power(kW) | 95.6 | 99.3 | 106.6 | 110 | 117 | |||
Rated Speed(r/min) | 2200/2300/2400 | |||||||
Starting Method | Electric | |||||||
Transmission | 4×(2+1)×2 | |||||||
Clutch | Single,Dry Friction, Dual Stage Clutch | |||||||
PTO speed | 540/760 or 760/1000 or 540/1000 | |||||||
Factory&Cetification
WEIFANG BINHAI GROUP WORK WIN CO.,LTD. is a leading manufacturer and provider of total integrated supply chain solutions. We offer the best agricultural equipments, garden equipments, and accessories.
Our main product lines: tractor series, agricultural cultivating machinery series,spraying series, harvesting machinery series, post-processing machinery series, casting and forgings series. Our farm implements could match with domestic tractor (FOTON, YTO), and foreign famous brand tractor (JOHN DEERE, NEW HOLLAND, KUBOTA etc.)
We have a multilingual team, and many big branch factories. A regional market presence-including southeast Asia, Indonesia, Russia, Spain, Chile, Brasil, Australia etc.
Group Work Win strives to build a long term relationships by providing our customers with continuous and reactive support. We aim to supply better quality products and after-sales service.

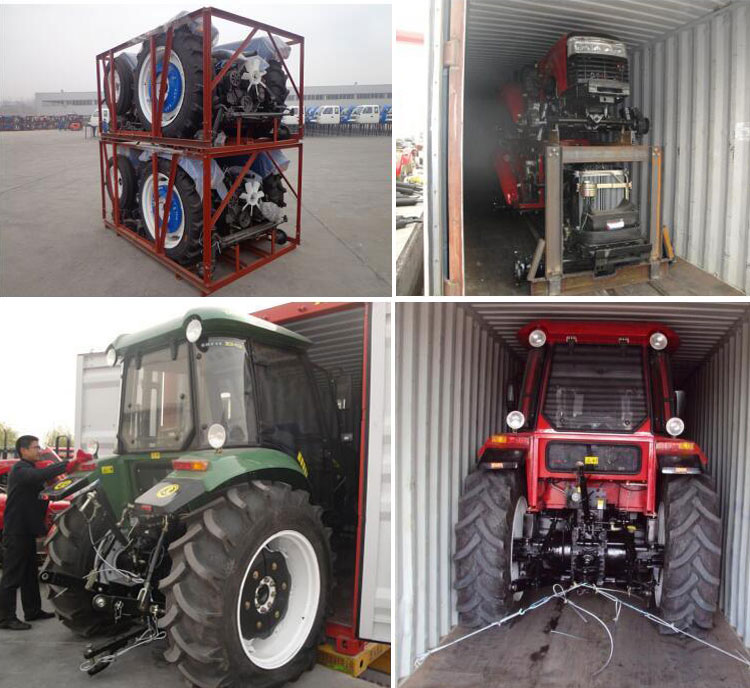

Packing & Delivery
Packaging Mode: standard export package
Delivery Time: Within 15-25 working days after payment
FAQ
Q1: How about your company?
A1: We are a leading manufacturer and provider of total integrated supply chain solutions for agricultural machinery.
Q2: What is the MOQ?
A2: Normally the MOQ is one set. There are some exceptions to this requirement because of the type of machines.
Q3: What is the delivery time?
A3: 15-20 working days after payment.
Q4: About the package?
A4: Iron frame or wooden box.
Q5: Can I put my brand name on your agricultural machines instead of your brand name?
A5: Yes. We could do OEM/OBM.
Q6: What about the payment terms?
A6: T/T. We also can accept other payment terms.
Q7: Can we mix different models together?
A7: Sure. We can offer different agricultural equipments, you could mix different products or models in 20FT or 40FT container but in order to make the best use of container room, usually we advise you to check the size of the machines.
