1-cabin with a/cDiesel Engine
2-Brand: Yuchai
3-No. of Cylinders: 4
4-Original: China
Domestic famous engines, strong driving force, low fuel consumption.

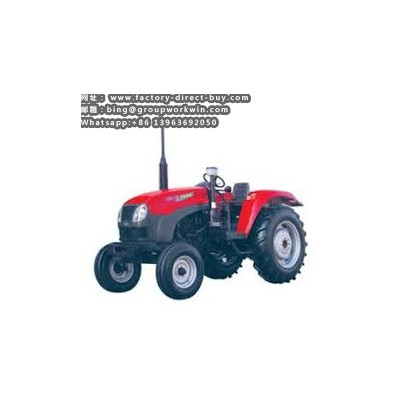

SADIN 1404-1504 Series Tractor | ||||
Main Technical Specifications | ||||
Model | SADIN1404 | SADIN1504 | ||
Type | 4x4 Wheeled Type,4WD | |||
Dimensions of Tractor | Length | 4670 | 4750 | |
Width | 2490 | |||
Height | 2800 | 3000 | ||
Tread | Front Wheel | 1740 | 1780 | |
Rear Wheel | 1800(usual)-2000 | 1860(usual)-2000 | ||
Wheel Base | 2550 | |||
Min.Ground clearance | 500(the bottom of front axle) | 480(the bottom of front axle) | ||
Min.operational Mass | 5300 | 5900 | ||
Engine | Model | LR6M3Z-23 | DEUT WP6G150E330 | |
Type | Vertical, water cooled and 4-stroke | |||
Rated Power(KW) | 103 | 110.3 | ||
Rated Rev.(r/min) | 2300 | |||
Fuel | Diesel | |||
Tire | Front Wheel | 14.9-26(Optional:14.9-24) | ||
Rear Wheel | 18.4-38(Optional:16.9-38) | |||
Clutch | Dry-friction, single disc, dual stage | |||
Steering | Hydraulic power steering | |||
Transmission Box | 4x(2+1)x2 Composed | |||
Hitching Type | rear mounted, 3-point linkage, catagory III | |||
PTO | Type and Rev.(r/min) | rear mounted, independent,760/1000 or 540/1000 or 540/760 | ||
Spline Size | I38 Rectangle Spline with 8 teeth | |||
Our Service

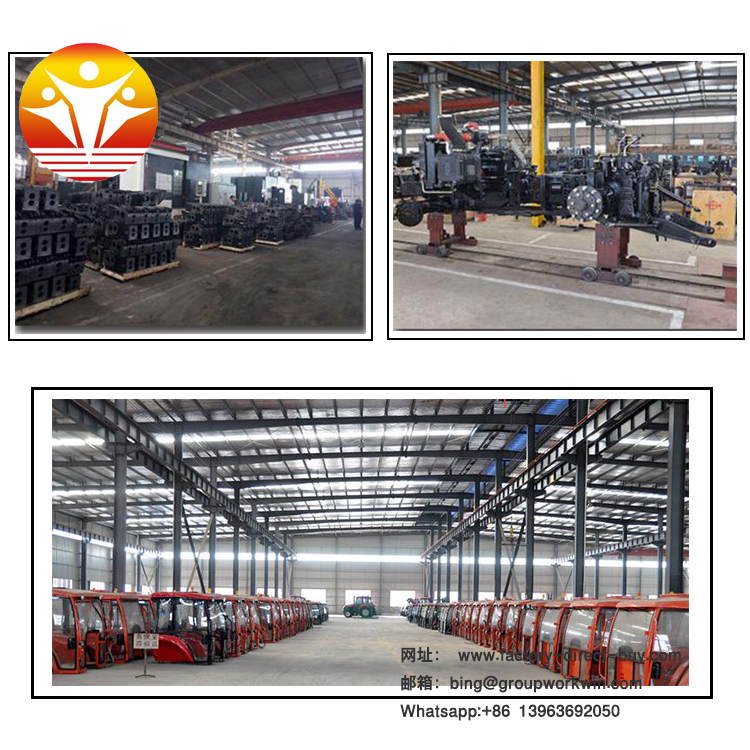

Our company was established in 1984, based mainly in the production of agricultural machinery, research and development and promotion of services in one liability entity. Advanced walking tractor, micro farming machine production lines and advanced testing equipment, technical means perfect, complete quality assurance system, production and service facilities.
Visitor
Corporate honor
Packaging & Delivery
Nude Packing or Iron Packing according to customer's requirements.
Shipped in 15-25 days after payment
Port:Qingdao
Lead Time :15-25 Days
FAQ
Q1. What is your terms of payment?
A: T/T 30% as deposit, and 70% against copy of B/L.
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
Q3. How about your delivery time?
A: Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order. Sometimes we have some in stock.
Q4. Are you interested in dealership with local company?
A: Yes, we are quite interested in this business. We'd like to cooperate with some local partner to sell more World machines in local market and supply better service.
Q5. What is your warranty policy?
A: We can supply one year warranty or 2000h for our machines. We will provide parts as free within warranty. We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.
