Weifang high quality agricultural equipment tractor planting machine four lines of corn planting

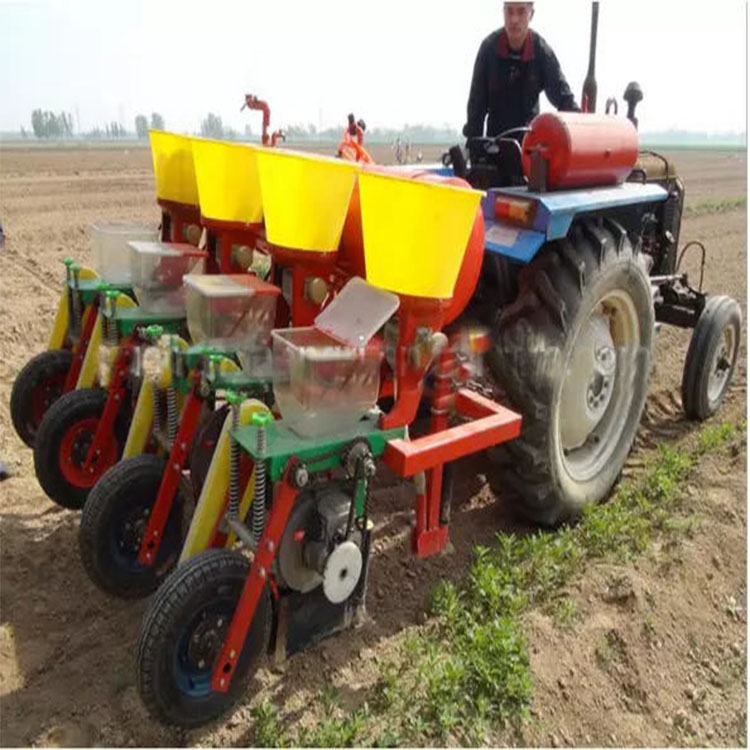

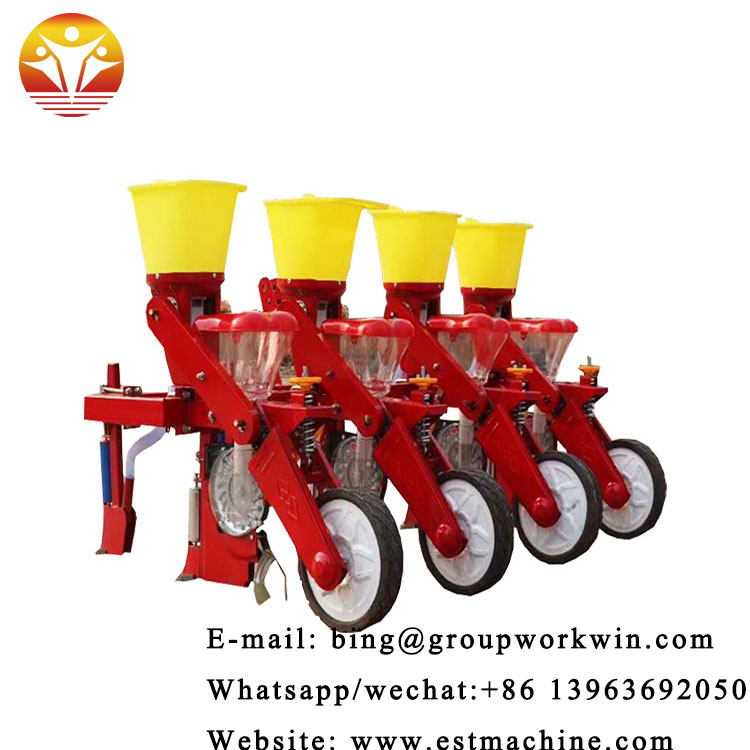

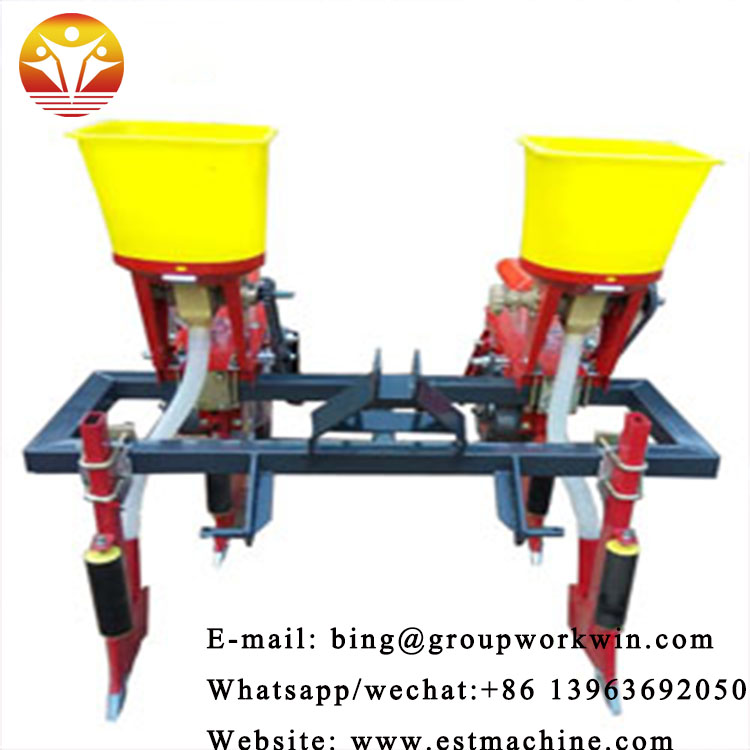

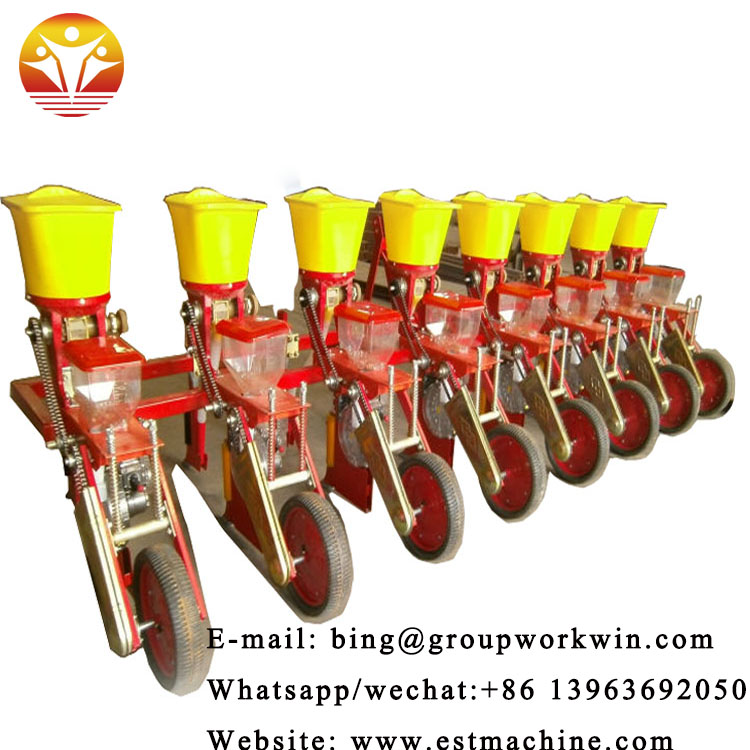

The product is a fine seeder with seeding grains one by one. It applies for loosing soil, digging, applying fertilizer, covering and pressing in one operation. Sowing by weight, no damage to seeds. High precise seeds clearance, evenly sowing stale, seeds saving and less thin out seeding. Adopt “zero speed”, equal potential energy, low position feeding sturdy, seedling spacing is even. Mainly for sowing corn, can also sowing bean, cotton seeds, peanut and sunflower seeds. The machine can spread the basis fertilizer during planting, and can complete the suppression at the same time. Feed outlet is driven by gear. There is an anti-reverse mechanism at the inside of driving gear to avoid troubles arising from machine reverse turning. Seeds clearance is convenient and thoroughly.Characteristics :narrow trenching, moisture, and the fertilizers front, side spreading is spreading is suitable the machine can match a wide range of tractors.
1.using gravity cleaning without hurting the seeds;
2. cleaning, sowing quantity of high precision, uniformity and stability of provinces, less thinning out;
3. adopt the "zero velocity", such as potential, low to throw away, acupuncture point accurately, miao agent, healthy, MiaoJu uniform;
4. anchor corn, soybean, cotton and sowing, peanut oil sunflower multi-usage, sowing while, can with chemical fertilizer, but also achieve turns the soil repression;
5. metering device by gear transmission, active gear has anti pour institutions, avoid machine caused by fault; non-overturned;
6. adjust different driven gear, adjustable ZhuJu;
7. and when cleaning off the platoon kind of plate cover, clear convenient and thoroughly;
8. the machine has cultivated land and not cultivated land are applicable;
9. the machine open ditch narrow, good, fertilizer is subsoil joash, side shi all can, supporting scope.
odel | 2BYSF-2 | 2BYSF-3 | 2BYSF-4 | 2BYSF-5 | 2BYSF-6 | 2BYSF-7 | 2BYSF-8 | |
Overall dimension (mm) | 1050*1440*980 | 1600*1440*980 | 2110*1440*980 | 2680*1440*980 | 3250*1440*980 | 3820*1440*980 | 4400*1440*980 | |
Rows | 2 | 3 | 4 | 5 | 6 | 7 | 8 | |
Matched Power | HP | 12hp-18hp | 15-25 | 25-40 | 40-50 | 50-60 | 50-75 | 60-90 |
KW | 8.8-13.2 | 11-18.4 | 18.4-29.4 | 29.4-36.8 | 36.8-44.1 | 36.8-55.2 | 44.1-66.2 | |
Row Spacing(mm) | 428-630 | 428-600 | 428-570 | 428-570 | 428-570 | 428-570 | 428-570 | |
Weight (kg) | 140 | 200 | 260 | 300 | 350 | 400 | 450 | |
Working Efficiency | ha/h | 0.2-0.3 | 0.3-0.45 | 0.4-0.6 | 0.5-0.75 | 0.6-0.9 | 0.7-1.05 | 0.8-1.2 |
Capacity of fertilizer tank (L) | 20*2 | 20*3 | 20*4 | 20*5 | 20*6 | 20*6 | 20*8 | |
Fertilize Depth(mm) | 60-80 | |||||||
Capacity of seed tank (L) | 8.5*2 | 8.5*3 | 8.5*4 | 8.5*5 | 8.5*6 | 8.5*7 | 8.5*8 | |
Plant Depth (mm) | 30-50 | |||||||
Plant spacing (mm) | 140mm / 173mm / 226mm / 280mm optional | |||||||
Linkage | Three-point suspension | |||||||
Forbid | 1. No turning when machine works . 2. No retrogression when the machine works . |
Packaging Details: iron box and according the custoner request
Port: QINGDAO
Description of core advantages:Weifang Binhai Group Work Win Supply Chain Co., Ltd is a leading manufacturer and provider of total integrated supply chain solutions. We offer the best chemical products for the orders.

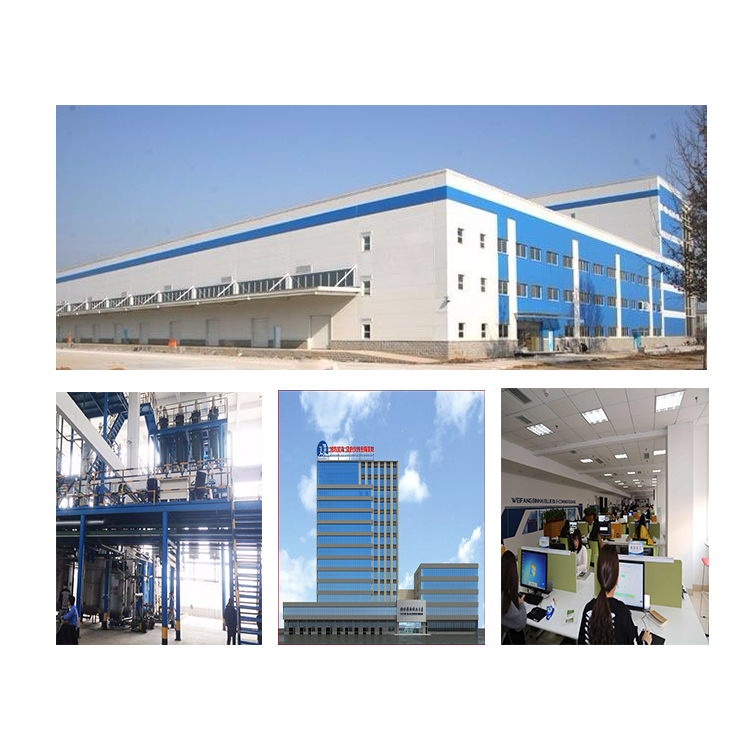

Company details:Weifang Binhai Group Work Win Supply Chain Co., Ltd is a leading manufacturer and provider of total integrated supply chain solutions. We offer the best chemical products for the orders.
We have a multilingual team, and many big branch factories. A regional market presence-including southeast Asia, Indonesia, Russia, Spain, Chile, Brasil, Australia etc.
Group Work Win strives to build a long term relationships by providing our customers with continuous and reactive support. We aim to supply better quality products and after-sales service.
1. Where is your plant located ?
Binhai Economic Development Area, Weifang City, Shandong
