90HP 4WD Best price large tractor price
Product Description
1, match the famous country Ⅲ engine, powerful, high reliability, torque reserve factor;
2, gearbox stalls 16F +8 R, crawler 16F +8 R, optional 8F +4 R, the speed match is reasonable, agronomic adaptability, high efficiency, fuel economy is good;
3, enhanced two-speed power output, supporting a wide range of equipment, high reliability. Using double-cylinder forced lifting device, lifting force, more suitable for supporting large-scale equipment for farm operations;
4, optional configuration: 2 sets of hydraulic output; optional gas brake device to meet the transport and other operational requirements;
5, a new generation of streamlined hood beautiful atmosphere, to meet the safety, dust, noise, heat and other performance requirements.
Specification
| Model | QLN-900/904 | ||
| Dimensions | Length×Width×Height(mm) | 4280×2085×2925 | |
| Wheel Tread(mm) | Front Wheel(mm) | 1610—1820(4WD) 1520—1820(2WD) | |
| Rear Wheel(mm) | 1620—2020 | ||
| Min.Ground Clearance(mm) | 370—450 | ||
| Dry Mass | With Cab(kg) | 3635(2WD) 3785(4WD) | |
| Without Cab(kg) | 3420(2WD) 3570(4WD) | ||
| Engine | Trade Mark or Brand | YTO/YUCHAI | |
| Engine Model | Vertical Water Cooled 4-stroke | ||
| Directly Injection | |||
| Number of Cylinder | 4 | ||
| Cooling System Type | Water Cooled | ||
| Rated Power(kw) | 66.2KW | ||
| Max. Torsion(N.M) | 360 | ||
| Rated Speed(r/min) | 2300 or 2400 | ||
| Fuel Tank | Volume(L) | 150 | |
| Transmission System | Clutch | Single,Dry,Dual Stage Type | |
| Gear Box | F16+R8/F16+R8(creeper gear) | ||
| Differential | Closed 4-planetary Gears | ||
| Differential Lock | Mechanical Sliding Sleeve | ||
| Braking System | Wet Double Plate Disc Brake | ||
| Running System | Tyre Model | F/R(2WD) | 6.5—20/16.9—34 |
| F/R(4WD) | 11.2—24/16.9—34 | ||
| Steering System | Hydraulic Wheel Steering | ||
| Working Device | Hydraulic System Type | Positive lifter | |
| Linkage Type | II Rear Mount 3-point Linkage | ||
| PTO(Standard) | φ38,8teeth φ35,6teeth | ||
| PTO Speed(r/min) | 540/1000 | ||
| Drawbar Type | Fixed Drawbar/Swing Drawbar | ||

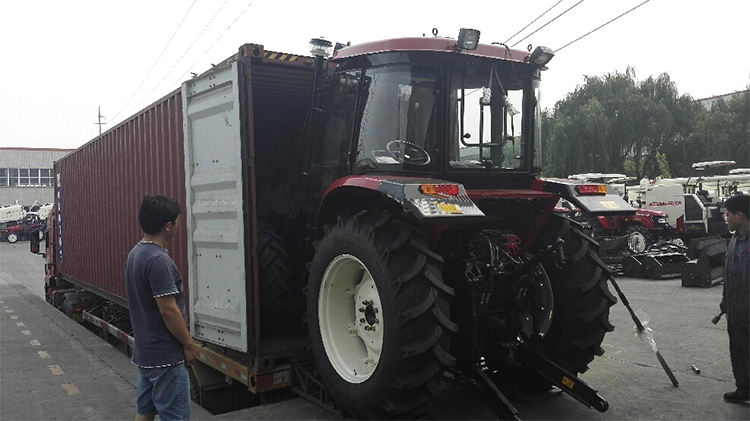

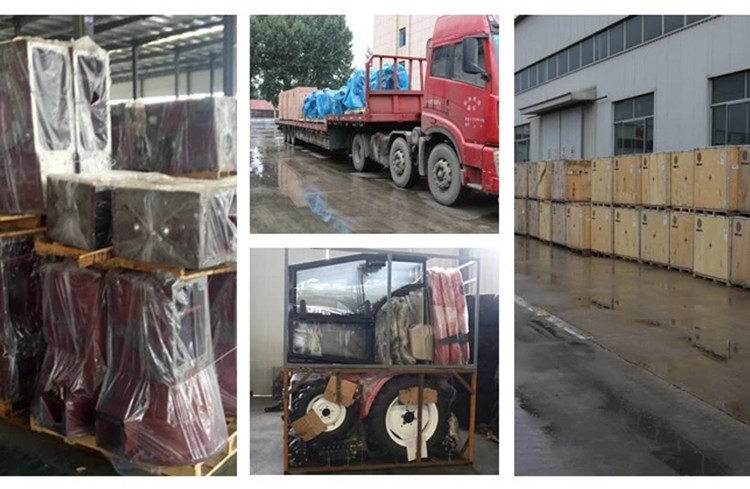

Packaging & Delivery
Nude Packing or Iron Packing according to customer's requirements.
Company
Feicheng Haochuang Group Work Win Co., Ltd. is a leading manufacturer and provider of total integrated supply chain solutions. We offer the best agricultural machinery products for the orders.We have a multilingual team, and many big branch factories. A regional market presence-including southeast Asia, Indonesia, Russia, Spain, Chile, Brasil, Australia etc.Group Work Win strives to build a long term relationships by providing our customers with continuous and reactive support. We aim to supply better quality products and after-sales service.
FAQ
1. What tractor does your company produce?
We can offer farm tractor
2. Can you recommend us a tractor of suitable horsepower?
Yes, of course, please advice us all your specific requirements for the tractor usage, such as farm area, corn type, working space and so on.
3. How can I choose a right accessory for the tractor?
Normally, the accessory is matched with tractor according to the horsepower required.
4. Where is your factory?
Our factory is in Weifang City, you can come here by train or plane, we are glad to pick you up.
5. Can we visit your factory?
Yes, of course, you are warmly welcomed to our factory, you can see all the production progress and can try to drive it.
