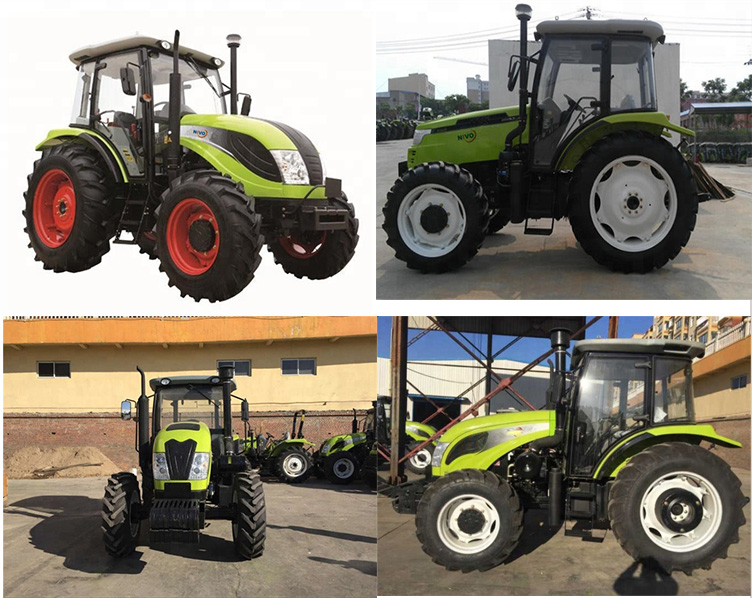

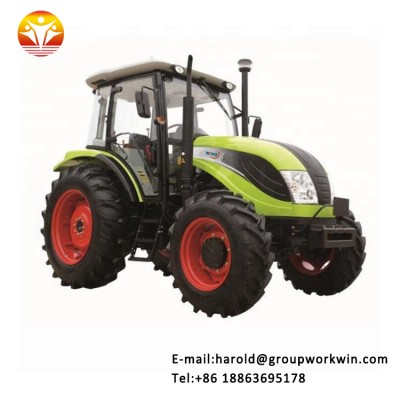

130hp 4wheel drive tractor mini farm tractor
Tractor is a self-propelled power machine used to tract and drive operating machinery to complete various mobile operations.
1. Adopting Dong fang hong famous diesel engine, large torque reserve, low fuel consumption;
2. Operate independently double clutch, high transfer ability, reliable effect, operation more comfortable;
3. Gear box use 16+8, gear are reasonable, high working efficiency;
4. Adopt independent power output device, steady transmission, large bearing capacity;
5. Using independent hydraulic steering system operation, flexible operation, reliable energy saving;
6. Using disc brakes, large braking torque, good braking effecting;
7. Using forced type lifter, reliable use, convenient maintenance;
8. Final drive adopts planetary reduction structure, compact structure, large reduction ratio;
9. New streamlined appearance, greaceful, fashion;
1. Careful handling of "boiling" when cooling water "boiling" should be handled cautiously. The correct way is to make the engine run at medium speed, open the radiator cover, release hot gas, and then slowly add cold water after cooling. When opening the radiator cover, the operator should stand in the upwind position, face not toward the nozzle, in order to avoid being scalded by the hot water spraying out.
2. To keep the cooling system clean before summer comes, the cooling system should be thoroughly cleaned to make the water pipes of pumps and radiators unblocked and ensure the normal circulation of cooling water. In addition, weeds and other substances attached to the radiator surface should be removed in time.
3. Prevent leakage of water cooling system mostly occurs at the pump shaft sleeve, at this time, tighten the water seal pressure nut properly. If the filler is invalid, it should be replaced in time. The filler can be wrapped with asbestos rope coated with graphite powder.
NV804 | NV904 | NV1004 | |
ENGINE | |||
Rated power(Hp)/Rated speed rpm | 80/2300 | 90/2300 | 100/2300 |
Max. Torque(N.m/rpm) | 285/1700 | 345/1500/1700 | 345/1500/1700 |
No.of cylinders and type | 4 cylinder,Inline,direct injection | ||
Displacement(L) | 4.76 | 5.13 | 5.61 |
Rated fuel consumption(g/kw.h) | ≤242 | ≤220 | ≤220 |
Fuel tank capacity(Ltr) | 130 | ||
PTO | |||
Max PTO power(Hp) | 50.2 | 56.3 | 62.5 |
PTO speed Std(Opt) | 540/1000, 6 tooth | ||
POWER TRAIN | |||
Basic trans Std | 12F/4R | ||
Max.traction force(k.n) | ≥17.6 | ≥19.8 | ≥24.0 |
HYDRAULICS | |||
Delivery(Lpm) hydraulic pump | 46 | ||
Steering pump | 16 | ||
Lift capacity at ball eng(kg) | ≥1420(14.2kN) | ≥1590(15.9kN) | ≥1760(17.6kN) |
DIMENSIONS & WEIGHT | |||
Length*width*height mm | 4531*2100*3000 | ||
Wheelbase mm | 2325 | ||
Wheel tread F mm | 1630-1960 | ||
Wheel tread R mm | 1500-2100 | 1520-2120 | |
Min.ground clearance mm | 430 | 415 | 440 |
Min.operation weight (kg) | 3675 | 3920 | 3920 |
Tire size(F/R)(Ag) | 11.2-28/13.6-38 | 13.6-24/16.9-34 |
