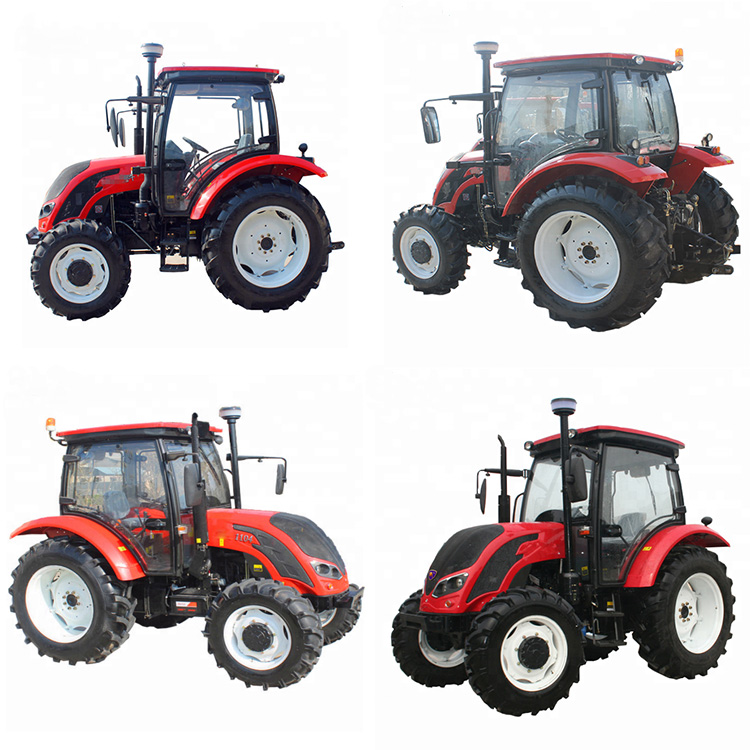

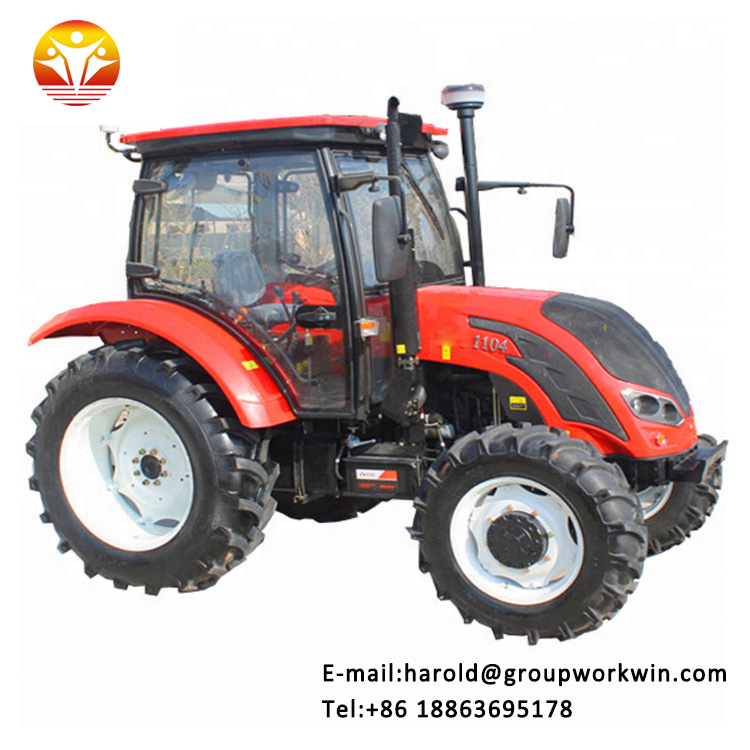

80hp 4x2 Farm Tractor

Tractor is a self-propelled power machine used to tract and drive operating machinery to complete various mobile operations.

1.  Adopting Dong fang hong famous diesel engine, large torque reserve, low fuel consumption;
2. Operate independently double clutch, high transfer ability, reliable effect, operation more comfortable;
3. Gear box use 16+8, gear are reasonable, high working efficiency;
4. Adopt independent power output device, steady transmission, large bearing capacity;
5. Using independent hydraulic steering system operation, flexible operation, reliable energy saving;
6. Using disc brakes, large braking torque, good braking effecting;
7. Using forced type lifter, reliable use, convenient maintenance;
8. Final drive adopts planetary reduction structure, compact structure, large reduction ratio;
9. New streamlined appearance, greaceful, fashion;

1. Careful handling of "boiling" when cooling water "boiling" should be handled cautiously. The correct way is to make the engine run at medium speed, open the radiator cover, release hot gas, and then slowly add cold water after cooling. When opening the radiator cover, the operator should stand in the upwind position, face not toward the nozzle, in order to avoid being scalded by the hot water spraying out.

2. To keep the cooling system clean before summer comes, the cooling system should be thoroughly cleaned to make the water pipes of pumps and radiators unblocked and ensure the normal circulation of cooling water. In addition, weeds and other substances attached to the radiator surface should be removed in time.

3. Prevent leakage of water cooling system mostly occurs at the pump shaft sleeve, at this time, tighten the water seal pressure nut properly. If the filler is invalid, it should be replaced in time. The filler can be wrapped with asbestos rope coated with graphite powder.

Specification
Type										4x2       2WD
Rated traction force (N)										14000
Steering system										Hydraulic
Braking system										Mechanical
Engine	Number of cyliner									4
	Bore&Stroke									108 & 120
	Displacement									4.4
	Max. torque									280N.m/1600rpm
	Specific fuel consumption									205g/kWh
Exterior dimension (mm)	Length(with front ballast)								4090
	Width								1900
	Height(to the exhaust vent)								2690
Wheel base(mm)								2268
Front wheel base(mm)								1380
Rear wheel base(mm)								1520
Min. Ground clearance(Cross tie tod)(mm)								430
Structure weight(Kg)								2650
Min. Operational weight(Including shelves ballast)(kg)								2860
Weight distribution(Kg)		Front axle					1170
		Rear axle					1480
Ballast weight(kg)			<span style="box-sizing: content-box; margin: 0px; padding: 0px; border: 0px; font-style: inherit; font-variant: inherit; font-weight: inherit; font-stretch: inherit; line-height: 21px; vertical-align: baseline; font-family: arial, helv ... View detail View this Supplier's Website Basic Information Business Type: Manufacturer Main Products: Big tractor, Big tractor, Agricultural machinery,walking tractor Number of Employees: 51 - 100 People Factory Area (Sq.meters): Supplier Assessment Report Supplier Assessment Reports are detailed on-line reports about the supplier's capabilities. It helps you get all the information you need to trade confidently with suppliers Hot Product Rice Wheat Combine Harvester Kubota Similar DC70 DC60 4LZ-4.5 For Sale High quality combine harvester agricultural machinery Send your message to this manufacturer Email: Message: Your message must be between 20-8000 characters   © 2015 - 2024, wfdbn.com All rights reserved.
