mini tractor 120 12HP 2WD tractor
mini tractor 120 12HP 2WD tractor
FOB Price:
US $4,530.000 / Set
Min.Order:
1 Set/Sets
Supply Ability:
1000 Set/Sets per 0
Port:
qingdao
Email:
Quantity:
Set
  • Product Detils
  • Company Profile
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
group work win
Model Number:
Mini Small Farm Tractor
Packaging & Delivery
1 units loaded by a 20'GP container.

3 units loaded by a 40'HQ container.
Product Description


mini tractor 120 12HP 2WD tractor

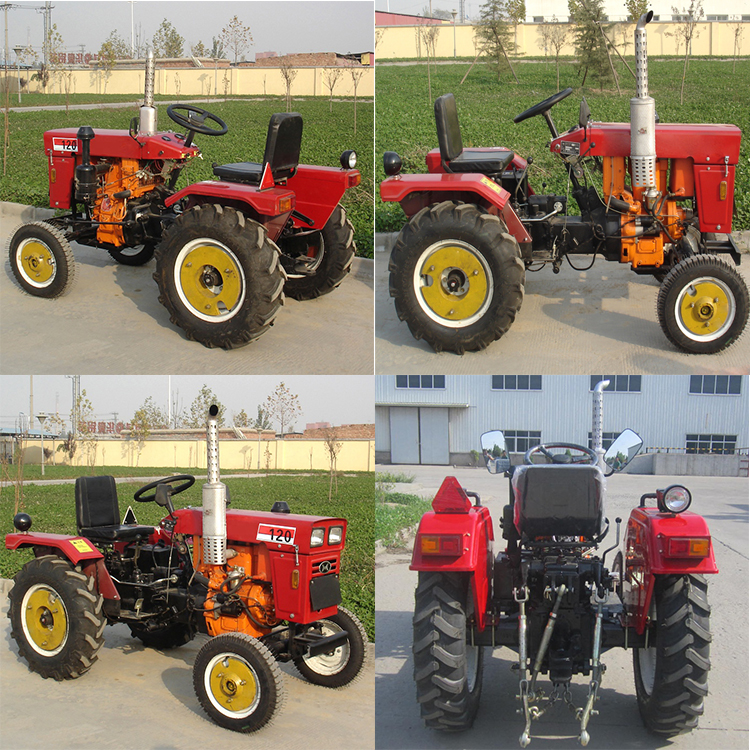

120 1.jpg

Tractor is a self-propelled power machine used to tract and drive operating machinery to complete various mobile operations.

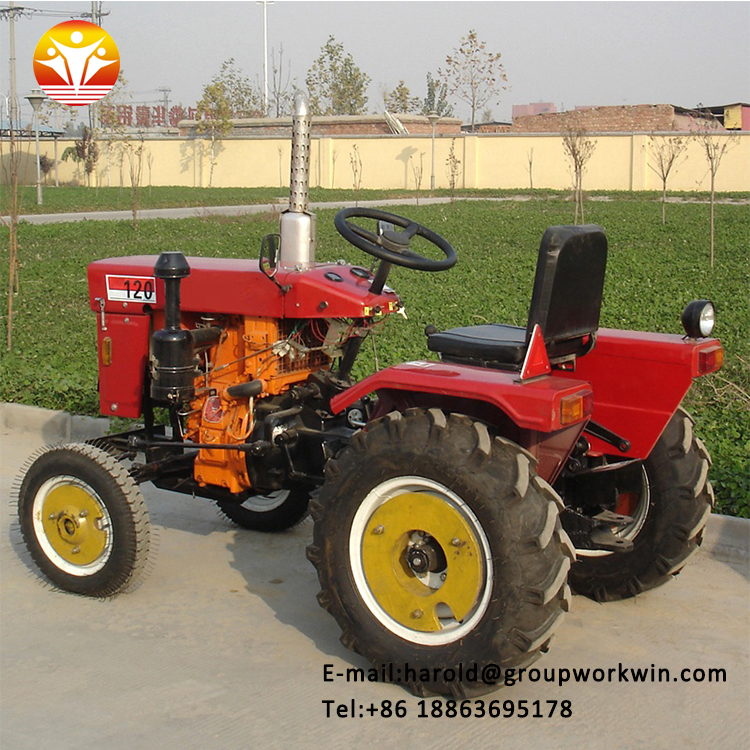

120 5.jpg



Tractor is a self-propelled power machine used to tract and drive operating machinery to complete various mobile operations. Can also do fixed operation power. It consists of engine, transmission, walking, steering, hydraulic suspension, power output, electrical instruments, driving control and traction systems or devices. The engine power is transmitted from the transmission system to the driving wheel, which makes the tractor run. In real life, rubber belt is commonly used as the power transmission medium.


1. Careful handling of "boiling" when cooling water "boiling" should be handled cautiously. The correct way is to make the engine run at medium speed, open the radiator cover, release hot gas, and then slowly add cold water after cooling. When opening the radiator cover, the operator should stand in the upwind position, face not toward the nozzle, in order to avoid being scalded by the hot water spraying out.

2. To keep the cooling system clean before summer comes, the cooling system should be thoroughly cleaned to make the water pipes of pumps and radiators unblocked and ensure the normal circulation of cooling water. In addition, weeds and other substances attached to the radiator surface should be removed in time.

3. Prevent leakage of water cooling system mostly occurs at the pump shaft sleeve, at this time, tighten the water seal pressure nut properly. If the filler is invalid, it should be replaced in time. The filler can be wrapped with asbestos rope coated with graphite powder.




Model

120

Type

4X2

Overall dimension (mm)

Length

2385

Width

1250

High

1665

Wheelbase (mm)

1400

Front wheel tread (mm)

850 or 960

Rear wheel tread (mm)

880 or 990

Min. ground clearance (mm)

275

Min. using mass(kg)

775

Gear box

6+2

Speed (km/h)

Forward

2.00/3.82/6.26/7.59/14.48/22.14

Reverse

2.00/7.59

Engine

Model

Deli, DL190-12

Type

Vertical, single cylinder, water cooled, 4-stroke

Rated Power (kw/12hours)

8.1

Rated Rev. (r/min)

2200

Fuelconsumption (g/kw•h)

≤257

Tyre type

Front Wheel

4.00-12/4.00-14

Rear Wheel

7.50-16/7.50-20

Start type

Electrical start

Steering system type

Mechnical type (Hydraulic for optional)

Clutch

Dry-friction, single stage

Suspension type

Tri-point suspension, catalogue O

PTO speed (r/min)

540

PTO spline size

35mm Rectangle Spline with 6 teeth

* Parameter shall be subject to any changes without additional notices.
