100hp 4wd farm tractor
100hp 4wd farm tractor
FOB Price:
US $9,000.000 / Set
Min.Order:
1 Set/Sets
Supply Ability:
1000 Set/Sets per 0
Port:
qingdao
Email:
Quantity:
Set
  • Product Detils
  • Company Profile
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
group work win
Model Number:
100hp 4wd
Packaging & Delivery
container. one 40HQ container can load 6sets 70HP-85HP farm tractor with packing

One 40HQ container can load 3sets 70HP-100HP farm tractor with or without cabin(no packing)
Product Description

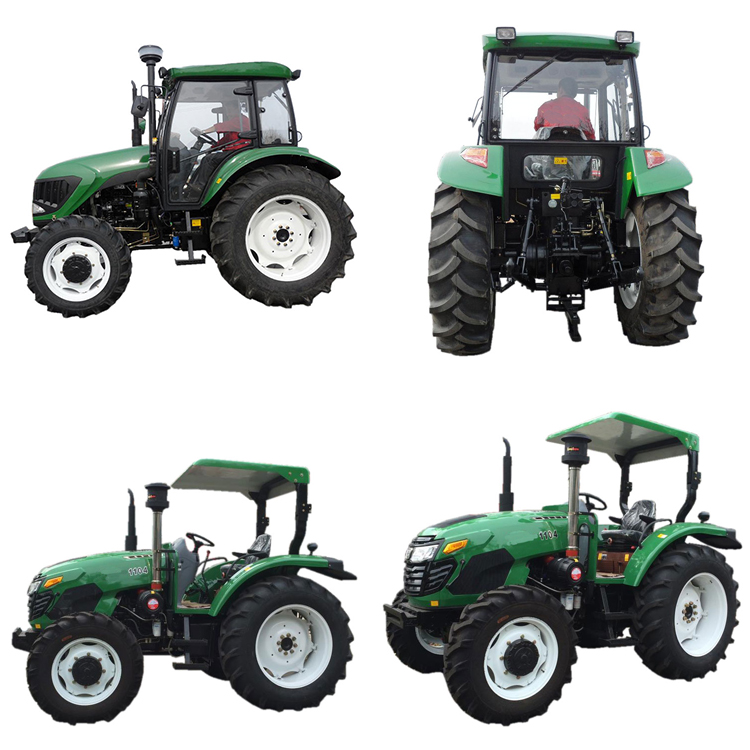

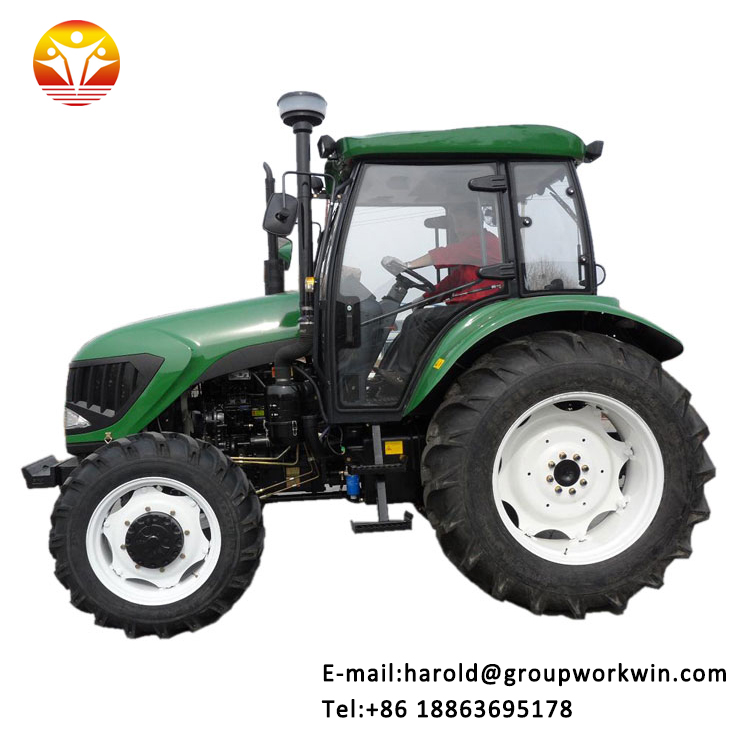

100hp 4wd farm tractor



Tractor is a self-propelled power machine used to tract and drive operating machinery to complete various mobile operations.





Tractor is a self-propelled power machine used to tract and drive operating machinery to complete various mobile operations. Can also do fixed operation power. It consists of engine, transmission, walking, steering, hydraulic suspension, power output, electrical instruments, driving control and traction systems or devices. The engine power is transmitted from the transmission system to the driving wheel, which makes the tractor run. In real life, rubber belt is commonly used as the power transmission medium.


1. Careful handling of "boiling" when cooling water "boiling" should be handled cautiously. The correct way is to make the engine run at medium speed, open the radiator cover, release hot gas, and then slowly add cold water after cooling. When opening the radiator cover, the operator should stand in the upwind position, face not toward the nozzle, in order to avoid being scalded by the hot water spraying out.

2. To keep the cooling system clean before summer comes, the cooling system should be thoroughly cleaned to make the water pipes of pumps and radiators unblocked and ensure the normal circulation of cooling water. In addition, weeds and other substances attached to the radiator surface should be removed in time.

3. Prevent leakage of water cooling system mostly occurs at the pump shaft sleeve, at this time, tighten the water seal pressure nut properly. If the filler is invalid, it should be replaced in time. The filler can be wrapped with asbestos rope coated with graphite powder.


Model

1004

Drive type

4x4

Engine

Engine model

LR4M3Z-23

Capacity of fuel tank(L)

150

Rated speed (r/min)

2300

Engine power (kw)

69.9

Lowest fuel consumption (g/kw·h)

≤242

Transmission

Clutch

Dry,Dual-stage type

PTO Speed(rpm)

540/1000 or 760/1000(optional)

Gear shift

16F+8R SHUTTLE SHIFT

Hydraulic system

Hydraulic output valve

4-Way (optional)

Three point linkage

Category of 3-point link

Category II

Lifting capacity(at point
of 610mm)KN

16

Technical parameter

Dimension LxWxH mm

4593x2050x2810

Wheel base(mm)

2195

Track base(mm) front wheel

1610

Track base(mm) rear wheel

1620-2020 (usual 1620)

The smallest clearance(mm)

379

Front tyre

12.4-24

Rear tyre

16.9-34
