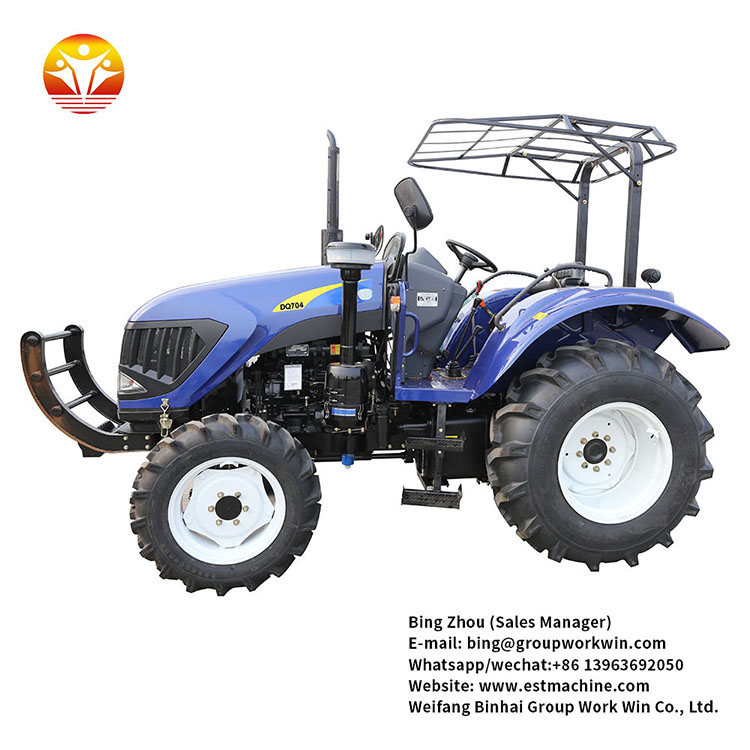

large tractor--Linyipingyiliuyu Group Work Win Co., Ltd.

large tractor

1. Dual Stage Clutch;

2. Oil Immersed Disc Brake;

3. Power Steering;

4. Multi-valve Hydraulic Output;

5. PTO Rev. 540/1000rpm;

6. Shuttle Gear;

7. Creeper Gear

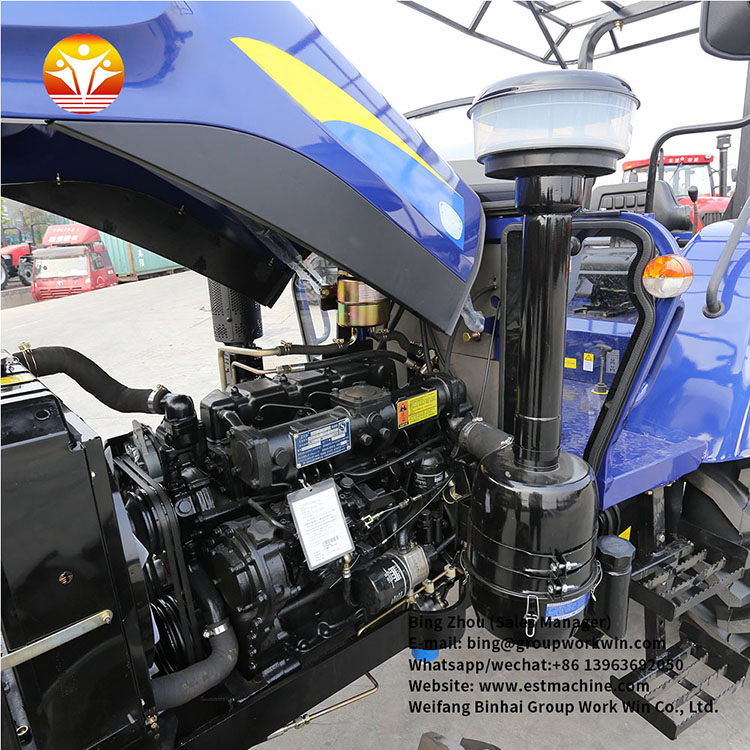

1. Adopting Dong fang hong famous diesel engine, good reliability, large torque reserve, low fuel consumption, high economic benefits;

2. Adopting 12 inch double clutch ,high transferability,reliable effect,operation more comfortable;

3. Gearbox 16forward gears,8 reverse gears, gear are reasonable, high working efficiency;

4. Adopt independent power output device, steady transmission, large bearing capacity;

5. Using independent oil hydraulic steering system operation, flexible operation, reliable energy saving;

6. Using disc brakes, large braking torque, good braking effecting;

7.Using forced type lifter, reliable use, convenient maintenance;

8. Final drive adopts planetary reduction structure, compact structure, large reduction ratio;

Item	Model		GWW-854	GWW-904	GWW-1004	GWW-1204	GWW-1304	GWW-1504
Basic Parameters	Engine Model		LR4B5-22	LR4M3Z-23		LR6B5-23	LR6M5-23	DEUTZ WP6G150E330
	Rated Power(kw)		62.5	66.2	73.5	88.2	95.6	110.3
	Rated Rev.(r/min)		2300
	Tyre	Front Wheel	8.3-24	12.4-24				14.9-26 18.4-38
		Rear Wheel	14.9-30	16.9-34
	Transmission Way		Gear
	Clutch		Dry-friction, single disc and dual-stage

Packaging Mode: Standard Export Package

Delivery Time: Within 30-35 working days after payment.
