Product Description

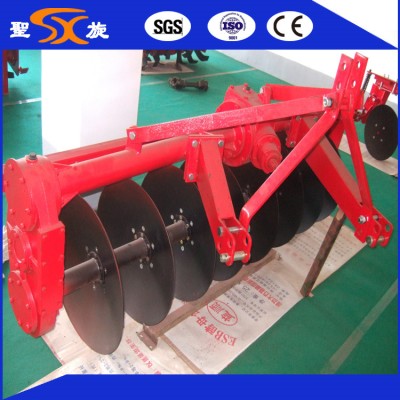

ILYQ series driven disc plough is mounted with tractor by the rear 3-point suspension device and drives the plough discs to rotate in the way of delivering power by tractor's rear PTO to the disc plough's gear box. This machine is mainly used for cultivating on paddy field with the advantages of non-tangling weeds,high quality and efficiency.
Name:1LYQ-822/China /driven disc plough with 8discs
1. 1LYQ driven disc plough adopts 3-point suspension central gear or side gear transmission structure.
2.1LYQ driven disc plough can match with 18-130hp tractor.
3.1LYQ driven disc plough uses pot-shape disc plough
4.1LYQ driven disc plough adopts angular suspension that right wheel marks are all covered.
5.1LYQ driven disc plough can turn up soil to make soil up-side-down in lines and level, rice stubble and Chinese milk vetch are turned down and buried in the field,then rot to be the organic-fertilizer.
Our services:
Professional: more than 30 years manufacturing experience of Agriculture machines. ( rotary cultivator ,disc plough, disc harrow, mower...)
2. Super Service: All customers are our good friends
3. Good Quality: We have strict quality control system & team. High reputation in the market.
4. Fast Delivery Time & Cheap Freight: We have big discount from our own forwarder
5. Quick and Safe Delivery
6. Experienced Service Team
7. Full range products for choice(disc plough, disc harrow, mower, rotary cultivator...)
8. Competitive Price, Attractive Design, Best performance, High Good Quality.
How To Order:
1. Please tell us the model with quantity and other requirement which you needed.
2. We issue the Proforma Invoice to you after confirmed the price and other details.
3. We arrange the order production upon receipt of confirmed PI and your deposit or T/T.
4. After the goods is ready to ship, we will inform you the shipment date and other information by email at the same time.
5. We will help to track your goods until you receive them safely
If you are interest in this model, contact me!
NAME: Amici
TEL: 0086-15726361761
Website : www.shengxuanjixie.com
Other models :
| Model | Matched power(hp) | Working width
(cm) | Working depth
(cm) | No.ofdisc | Total weight
(kg) | O.D. mm
(L*W*H) |
| 1LYQ-320 | 18-25 | 660 | 12-20 | 3 | 180 | 1200*900*900 |
| 1LYQ-420 | 25-30 | 880 | 12-20 | 4 | 216 | 1400*900*900 |
| 1LYQ-520 | 30-35 | 1100 | 12-20 | 5 | 276 | 1600*900*900 |
| 1LYQ-622 | 40-55 | 1320 | 12-20 | 6 | 321 | 1800*900*900 |
| 1LYQ-722 | 60-70 | 1540 | 12-20 | 7 | 357 | 2000*900*900 |
| 1LYQ-822 | 70-80 | 1760 | 12-20 | 8 | 393 | 2200*900*900 |
| 1LYQ-922 | 80-85 | 1980 | 12-20 | 9 | 430 | 1555*2465*1050 |
| LYQ-825 | 90-120 | 1900 | 12-20 | 8 | 650 | 2400*1000*1000 |
| LYQ-925 | 90-130 | 2100 | 12-20 | 9 | 700 | 2600*1000*1000 |
