Double Side Gearbox Rotary Disc Harrow for Paddy Field--Weifang Shengxuan Machinery Co., Ltd.

Basic Info

Model NO.: 1LYQ-1025
Application Field: Agriculture
Power Source: Tractor
Traction Type: Hanging
Arbor Configuration: Horizontal Axis
Color: Green
Working Width: 2500mm
Weight: 750kg
Matched Power: 100-120HP
Factory: Weifang Shengxuan
Transport Package: Iron Frame
Origin: China

Type: Disc Plough
Farming Policy: Paddy Field Machinery
Operation: Soil Preparation Machinery, Continuous Running Operation
Drive Type: Gear Drive
Certification: SGS, CE
No. of Discs: 10
Working Depth: 120-180mm
Packing Size: 2400*1000*1000mm
Material: Iron Plate
Trademark: sx
Specification: 1LYQ-1025
HS Code: 8432100000

Product Description

driven disc harrow,disc plough, paddy field plough, waterland plow, rotary cultivator,rotary disc plough.
Weifang Shengxuan Machinery Factory

---- Product Technical Parameter ----

Product Informations.
1.Name: Farm machinery PADDY FIELD driven disc plough
2.Cetification:CE(Europe standarded)
3.Suitable for the paddy field land ,with hydraulic scraper .
4.Speed of PTO shaft is:540RPM
5.Brand:SHENGXUAN
6.Three piont linkage
7.Type of drive: single Side gear trabsmission
8.There are 1LYQ-320,420,520,622,722,822,922 ,825 .925.1025 suitable for18-120hp tractors

Double Side Gearbox Rotary Disc Harrow for Paddy Field

Model	Matched power(hp)	(cm) Working width	(cm) Working depth	No.ofdisc	Total weight(kg)	O.D. mm(LWH)
1LYQ-320	12-18	660	12-20	3	180	86511651050
1LYQ-420	18-25	880	12-20	4	216	96513651050
1LYQ-520	25-30	1100	12-20	5	276	107515851050
1LYQ-622	40-50	1320	12-20	6	321	121018051050
1LYQ-722	60-80	1540	12-20	7	357	132520251050
1LYQ-822	70-80	1760	12-20	8	393	144022451050
1LYQ-922	80-90	1980	12-20	9	430	155524651050
LYQ-825	90-120	1900	12-20	8	650	145023001050
LYQ-925	90-120	2100	12-20	9	700	160025001050
LYQ-1025	100-120	2500	12-20	10	750	170027001050

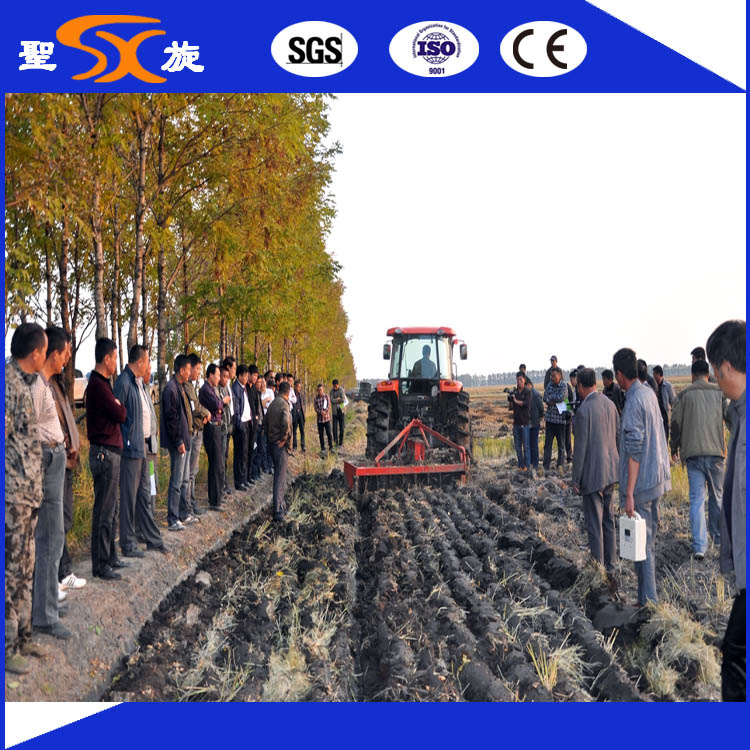

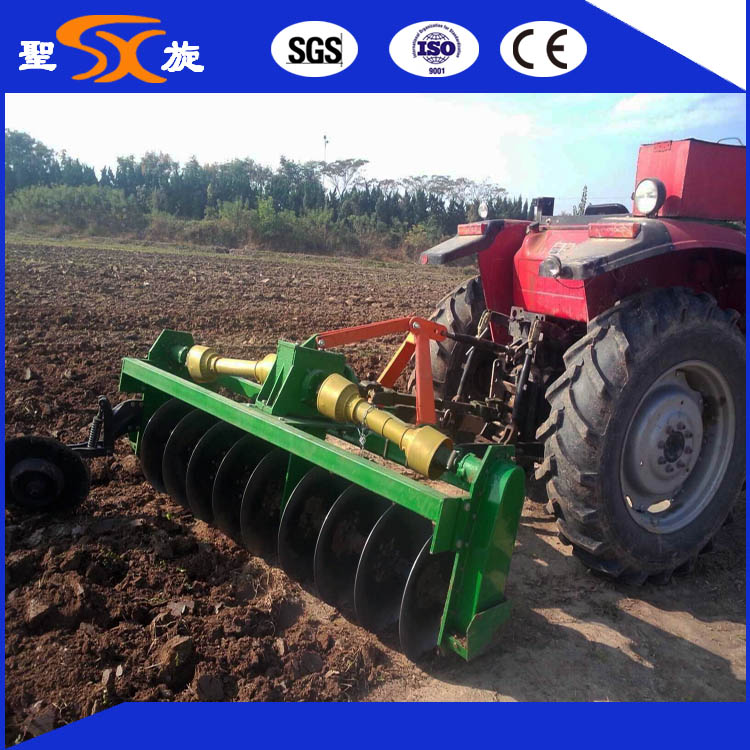

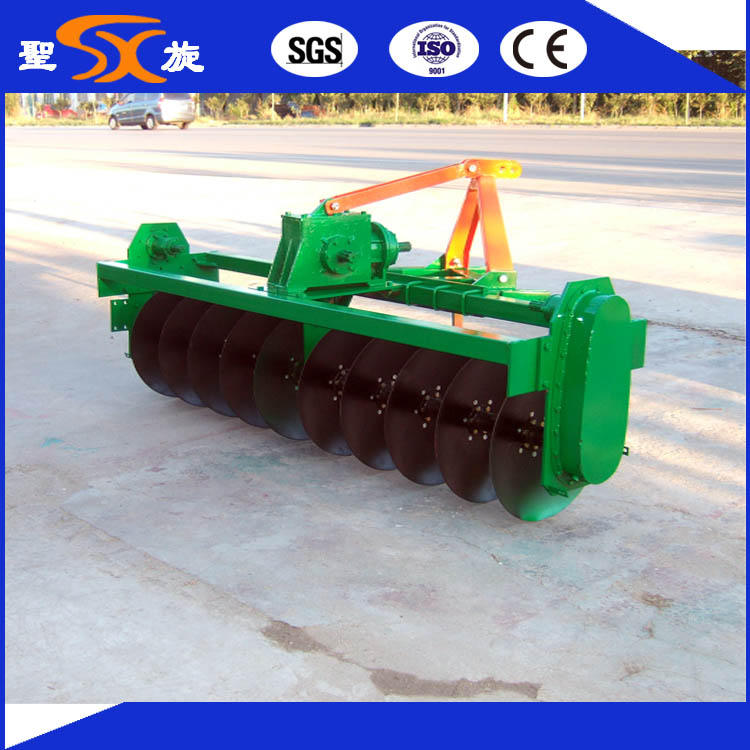

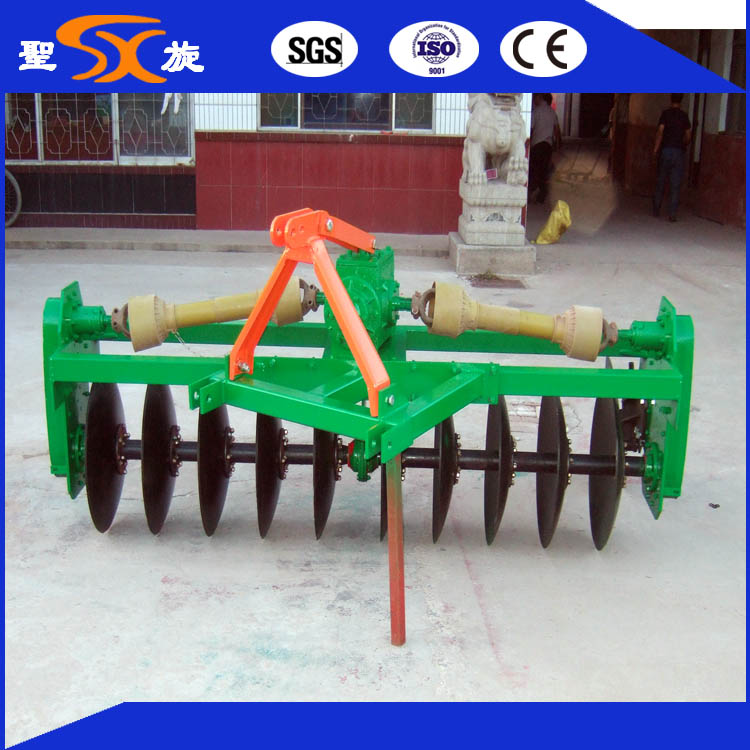

---- Products Show ----

Double Side Gearbox Rotary Disc Harrow for Paddy Field

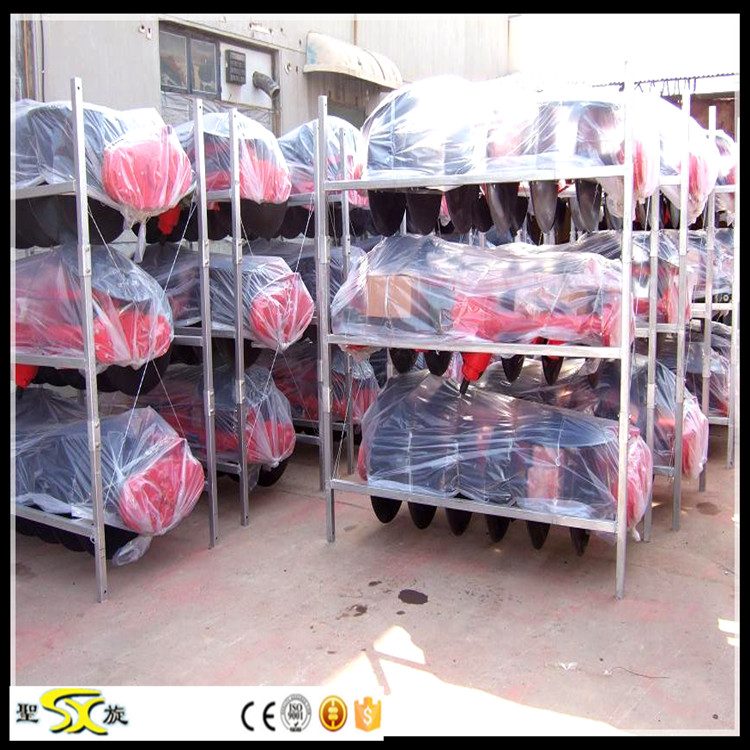

---- Packing &shipping ----

Double Side Gearbox Rotary Disc Harrow for Paddy Field

---- Certifications ----

----Buyer reading----

1. Trade terms: FOB,CIF,EXW
2. Sample Policy: You can test the quality of our sample firstly before you purchase them in mass quantity.
3. MOQ: 1 set
4. Payment Way: T/T, L/C, Western Union, D/P.
5. Delivery Date: 10-30 days after deposit paid. It depends on your order quantity.
6. Shipping Way: By Sea or By Air.
7. After Service: 12 months guarantee of the main parts, we will send the guarantee parts together with the machine in your next order or we can send them by air express if you need them urgently.

----FAQ----

1.Q: Full price list for these products
A:If you need the price list for these products, please notify the product model so that i can quote you accordingly.
Please understand we have a very wide product range, we don't usually offer full products price list.

2. Q: Business terms
A:
Shipment time: 25-40days after your payment
Shipment: By sea
Loading port: qingdao port, China
Destination port: ...To be advised
Payment: T/T, L/C, Western Union
Warranty: 1 year

3. RE: CE
A: Most of our products are certified by CE.

Why choose SX for cooperation

Comparing with our competitors, we have much more advantages as follows:
1.More than 30 years in manufacturing farming machine 2.More Professional Sales staffs to guarantee the better service
3. More agri machines for your choice
4. More New products into your range to avoid price competition
5.Larger quantity production and shipment
6.Better quality to guarantee better Credit.
7.Faster delivery time:only45days
8.More stick quality checking before shipment.
9.More reasonable after-sales service terms.
10.More famous brand: SHENGXUAN" brand and "CE"SGS ceitification.;
11..Lower repair rate and bad review rate.
12. We have American Branch to show our main products.We can give customers best service.
Welcome to contact us for more details!!!
