---- Product Technical Parameter ----
Rotary tiller's function.
1GQN series Rotary tiller is mainly used for agricultural planting, before sowing tillage operations. After cultivation, the surface is smooth, soft, fine, It is able to meet the intensive agronomic requirements. When working on wet or paddy fields, it can reduce the tractor wheels sinking and slipping lost . In southern China, rotary tiller is used for tillage before seedding winter wheat, rice as well as suburban vegetable land plowing operations, orchard weeding.

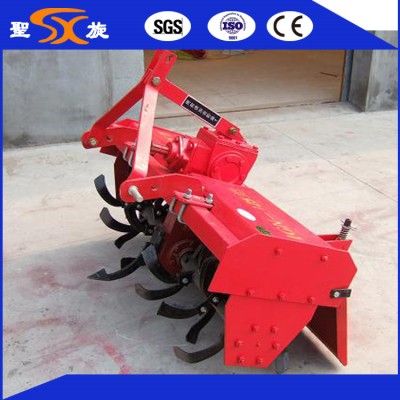

1GQN-125 rotary tiller features :
1.The 1GQN-125 rotary tiller adopts middle gear transmission and can be mounted with 25hp tractor.
3.There is 26 IT225 blades . material of blades is 65Mn.
4.Blade seat is made of double welded iron plate(thickness of iron plate is 4mm),more firm and durable.
5.High quality bearings,oil seal and gears. (bearings are bought from wanxiang group, gears are from famous factory in china, oil seal is imported from Taiwan)
6.More thicker iron plate: side panels thickness: 8mm, tailing plate: 2mm, cover plate:2mm
7.PTO shaft is with clutch to make the rotary tiller safe.
![Hot Sale High-Quality Farm/Agriculturure/Rotary Machine (1GQN-80, 120, 150, 160, 180, 200, 250, 300)]()
Rotary tiller working process:
1GQN series Rotary tiller is a power-driven machinery for cultivating. It is driven by tractor PTO rotating reel roller bladed to work. When working on dry land, tractor PTO drives rotary blades rotating, cutting the soil,. After the cracked clods, uniform coverage level, the ground does not appear furrows. Size and vertical structure are buried trip short edge of the corresponding reduced, and thus a higher productivity. With high Pulverizer performance, the ground is level. It can make full use of the power of tractor.
1GQN-125 rotavator specifications:\
Model | 1GQN-125 |
(hp)
Matched power | 25 |
(cm)
.Working width | 120 |
NO. of blades | 26 |
Type of blade | IT-225 |
(kg)
Total weight | 190 |
(mm)
O.D. | (L) | 1020 |
| (W) | 1350 |
| (H) | 1152 |
| (cm) working depth | | 12-16 |
| | |
(r/min)
PTO axle rotary speed | 540 |
| Linkage | (Standard three-point mounted) |
| packing size(mm) | 1300*700*700 |
![Hot Sale High-Quality Farm/Agriculturure/Rotary Machine (1GQN-80, 120, 150, 160, 180, 200, 250, 300)]()
![Hot Sale High-Quality Farm/Agriculturure/Rotary Machine (1GQN-80, 120, 150, 160, 180, 200, 250, 300)]()

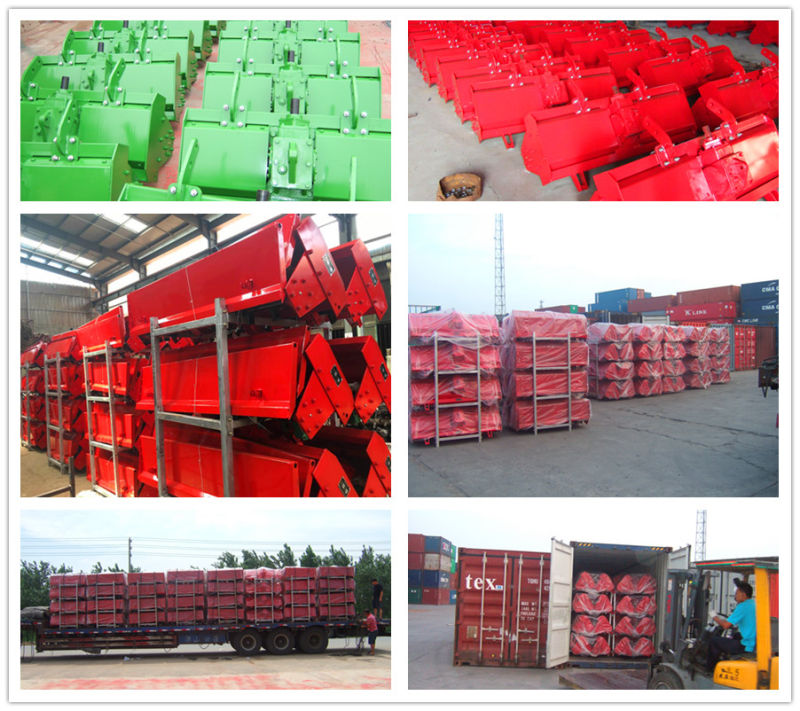

---- Packing &shipping ---- ![Hot Sale High-Quality Farm/Agriculturure/Rotary Machine (1GQN-80, 120, 150, 160, 180, 200, 250, 300)]()

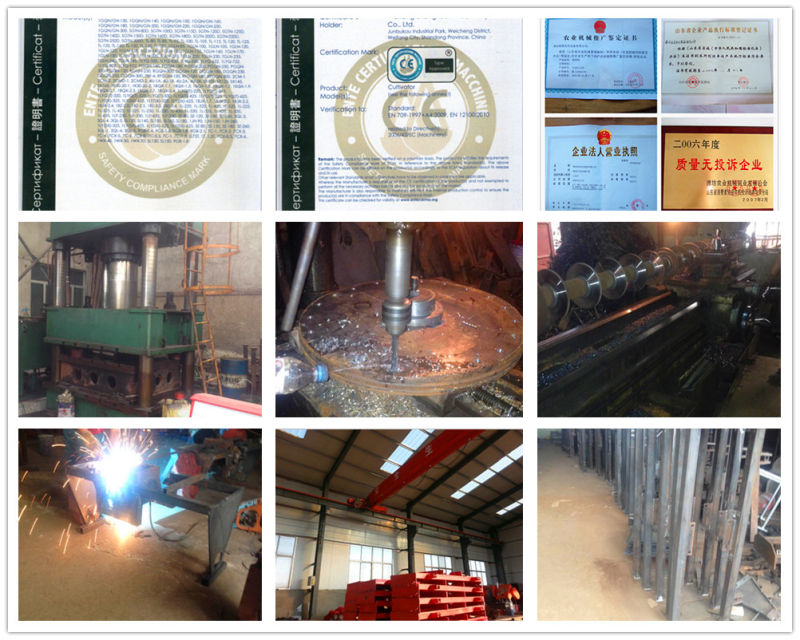

---- Certifications ---- ![Hot Sale High-Quality Farm/Agriculturure/Rotary Machine (1GQN-80, 120, 150, 160, 180, 200, 250, 300)]()
We also have other models:
1GQN-80 rotary machine
1GQN-100 rotary machine
1GQN-120 rotary machine
1GQN-125 rotary machine
1GQN-150 rotary machine
1GQN-160 rotary machine
1GQN-180 rotary machine
1GQN-200 rotary machine
1GQN-220 rotary machine
1GQN-300 rotary machine
1GQN-350 rotary machine
1GQN-380 rotary machine
1GQN-400 rotary machine
| Model | Matched power(hp) | No.of knives | Depth(cm) | Width(cm) | Type of knife | Weight
(kg) |
| 1GQN/GN-80 | 18-20 | 18 | 10-18 | 80 | IT225 | 180 |
| 1GQN/GN-100 | 18-20 | 22 | 10-18 | 100 | IT225 | 195 |
| 1GQN/GN-120 | 25 | 22 | 10-18 | 120 | IT225 | 205 |
| 1GQN/GN-125 | 25 | 26 | 10-18 | 125 | IT225 | 210 |
| 1GQN/GN-140 | 25-30 | 30 | 10-18 | 140 | IT225 | 220 |
| 1GQN/GN-150 | 25-30 | 34 | 10-18 | 150 | IT225 | 230 |
| 1GQN/GN-160 | 30-40 | 38 | 10-18 | 160 | IT225 | 240 |
| 1GQN/GN-180 | 50-55 | 42 | 12-20 | 180 | IT245 | 350 |
| 1GQN/GN-200 | 55-75 | 46 | 12-20 | 200 | IT245 | 370 |
| 1GQN/GN-220 | 60-80 | 50 | 12-20 | 220 | IT245 | 390 |
| 1GQN/GN-230 | 70-80 | 50 | 12-20 | 230 | IT245 | 400 |
| 1GQN/GN-250 | 75-90 | 58 | 12-20 | 250 | IT245 | 420 |
| 1GQN/GN-300 | 80-90 | 70 | 12-20 | 300 | IT245 | 480 |
