Farm machinery rotavator,rotary cultivator, rotary tiller ,farm tiller,agricultural tillerWeifang Shengxuan Machinery Factory ---- Product Technical Parameter of large rotary tiller---- Rotary tiller's function. 1GQN series Rotary tiller is mainly used for agricultural planting, before sowing tillage operations. After cultivation, the surface is smooth, soft, fine, It is able to meet the intensive agronomic requirements. When working on wet or paddy fields, it can reduce the tractor wheels sinking and slipping lost . In southern China, rotary tiller is used for tillage before seedding winter wheat, rice as well as suburban vegetable land plowing operations, orchard weeding.1GQN-200 rotary tiller features :1.The 1GQN-200rotary tiller adopts middle gear transmission and can be mounted with 55-75hp tractor.
3.There is 46 IT245 blades , longer than ordinary one . material of blades is 65Mn.
4.Blade seat is made of double welded iron plate(thickness of iron plate is 4mm),more firm and durable.
5.High quality bearings,oil seal and gears. (bearings are bought from wanxiang group, gears are from famous factory in china, oil seal is imported from Taiwan)
6.More thicker iron plate: side panels thickness: 10mm, tailing plate: 2mm, cover plate:2mm
7.PTO shaft is with clutch to make the rotary tiller safe. ![Large Rotary/Farming/Garden Tiller with 2m Working Width]()
Rotary tiller working process:
1GQN series Rotary tiller is a power-driven machinery for cultivating. It is driven by tractor PTO rotating reel roller bladed to work. When working on dry land, tractor PTO drives rotary blades rotating, cutting the soil,. After the cracked clods, uniform coverage level, the ground does not appear furrows. Size and vertical structure are buried trip short edge of the corresponding reduced, and thus a higher productivity. With high Pulverizer performance, the ground is level. It can make full use of the power of tractor.
1GQN-200 Specifications
Model | 1GQN-200 |
(hp)
Matched power | 55-75 |
(cm)
.Working width | 195 |
NO. of blades | 46 |
Type of blade | IT-245 |
(kg)
Total weight | 380 |
(mm)
O.D. | (L) | 1020 |
| (W) | 2200 |
| (H) | 1152 |
| (cm) working depth | | 12-16 |
| | |
(r/min)
PTO axle rotary speed | 540 |
| Linkage | (Standard three-point mounted) |
| packing size(mm) | 2100*720*800 |

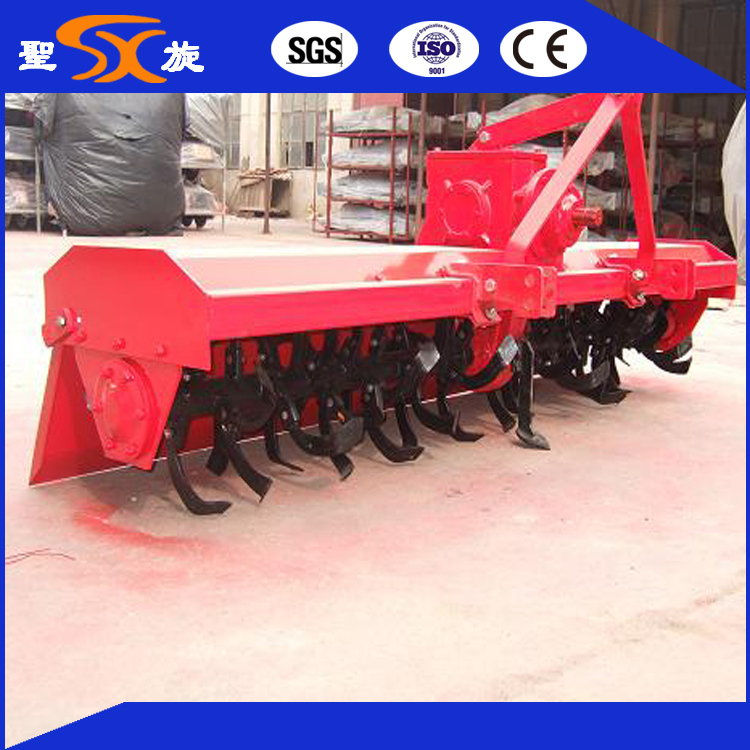

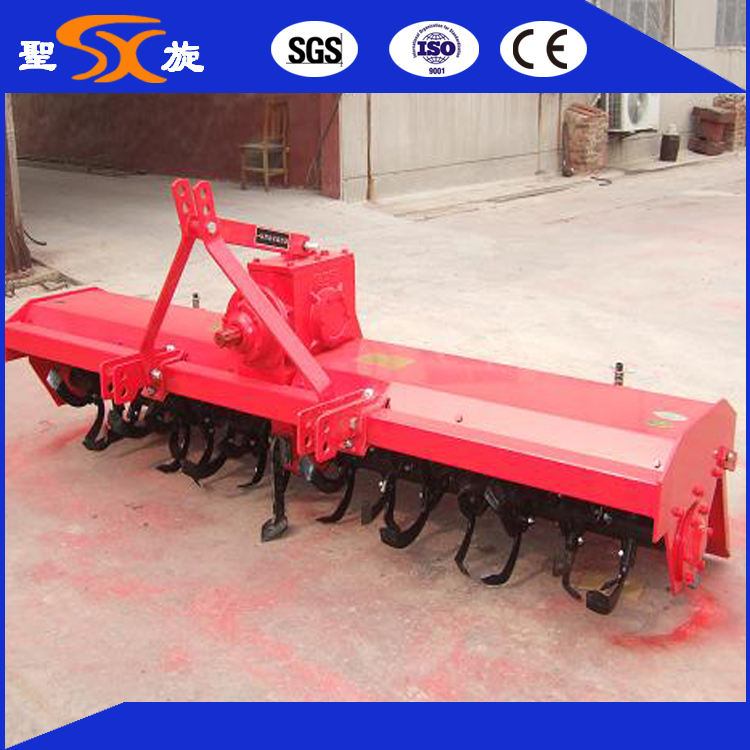

![Large Rotary/Farming/Garden Tiller with 2m Working Width]()
![Large Rotary/Farming/Garden Tiller with 2m Working Width]()
![Large Rotary/Farming/Garden Tiller with 2m Working Width]()

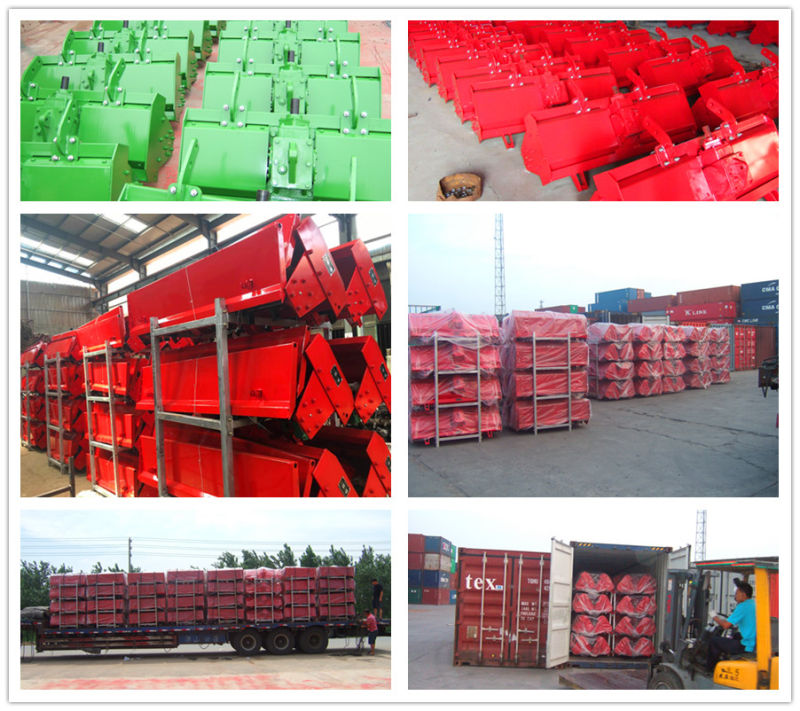

---- Packing &shipping of large rotary tiller---- ![Large Rotary/Farming/Garden Tiller with 2m Working Width]()

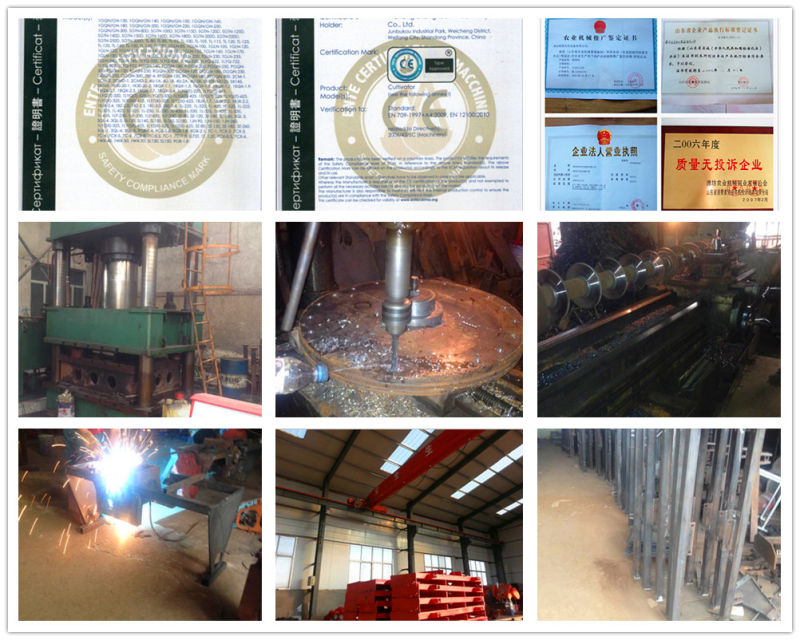

---- Certifications of large rotary tiller----
![Large Rotary/Farming/Garden Tiller with 2m Working Width]()
We also have other models:
1GQN-80 rotary tiller
1GQN-100 rotary tiller
1GQN-120 rotary tiller
1GQN-125 rotary tiller
1GQN-150 rotary tiller
1GQN-160 rotary tiller
1GQN-180 rotary tiller
1GQN-200 rotary tiller
1GQN-220 rotary tiller
1GQN-250 rotary tiller
1GQN-300 rotary tiller
1GQN-350 rotary tiller
1GQN-380 rotary tiller
1GQN-400 rotary tiller| Model | Matched power(hp) | No.of knives | Depth(cm) | Width(cm) | Type of knife | Weight
(kg) |
| 1GQN/GN-80 | 18-20 | 18 | 10-18 | 80 | IT225 | 180 |
| 1GQN/GN-100 | 18-20 | 22 | 10-18 | 100 | IT225 | 195 |
| 1GQN/GN-120 | 25 | 22 | 10-18 | 120 | IT225 | 205 |
| 1GQN/GN-125 | 25 | 26 | 10-18 | 125 | IT225 | 210 |
| 1GQN/GN-140 | 25-30 | 30 | 10-18 | 140 | IT225 | 220 |
| 1GQN/GN-150 | 25-30 | 34 | 10-18 | 150 | IT225 | 230 |
| 1GQN/GN-160 | 30-40 | 38 | 10-18 | 160 | IT225 | 240 |
| 1GQN/GN-180 | 50-55 | 42 | 12-20 | 180 | IT245 | 350 |
| 1GQN/GN-200 | 55-75 | 46 | 12-20 | 200 | IT245 | 370 |
| 1GQN/GN-220 | 60-80 | 50 | 12-20 | 220 | IT245 | 390 |
| 1GQN/GN-230 | 70-80 | 50 | 12-20 | 230 | IT245 | 400 |
| 1GQN/GN-250 | 75-90 | 58 | 12-20 | 250 | IT245 | 420 |
| 1GQN/GN-300 | 80-90 | 70 | 12-20 | 300 | IT245 | 480 |
About Our company
Established in 1984, Weifang Shengxuan Machinery Co., Ltd. is a professional manufacturer and exporter that is concerned with the design, development and production of farm machinery. We are located in Weifang City, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
We have over 150 employees, with an annual sales figure that exceeds USD 1500,000 and are currently exporting 90% of our products to worldwide countries. Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction.
As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching Italy, Germany, and Turkey.
----Buyer reading---- 1. Trade terms: FOB,CIF,EXW2. Sample Policy: You can test the quality of our sample firstly before you purchase them in mass quantity. 3. MOQ: 1 set 4. Payment Way: T/T, L/C, Western Union, D/P. 5. Delivery Date: 10-30 days after deposit paid. It depends on your order quantity. 6. Shipping Way: By Sea or By Air. 7. After Service: 12 months guarantee of the main parts, we will send the guarantee parts together with the machine in your next order or we can send them by air express if you need them urgently. ----FAQ---- 1.Q: Full price list for these products A:If you need the price list for these products, please notify the product model so that i can quote you accordingly.Please understand we have a very wide product range, we don't usually offer full products price list. 2. Q: Business termsA:Shipment time: 25-40days after your paymentShipment: By seaLoading port: qingdao port, ChinaDestination port: ...To be advisedPayment: T/T, L/C, Western UnionWarranty: 1 year 3. RE: CEA: Most of our products are certified by CE. 4.Q:Sample testA:Now our agri machines are exported in large quantity.If you need one sample for test, we advise you to get this sample from the domestic dealers.If you want to get from us directly, usually we advise to order at least one pallet per product. 5.Q:Why choose SX for cooperation?A: Comparing with our competitors, we have much more advantages as follows:1.More than 30 years in manufacturing farming machine 2.More Professional Sales staffs to guarantee the better service3. More agri machines for your choice4. More New products into your range to avoid price competition5.Larger quantity production and shipment6.Better quality to guarantee better Credit.7.Faster delivery time:only45days8.More stick quality checking before shipment.9.More reasonable after-sales service terms.10.More famous brand: SHENGXUAN" brand and "CE"ceitification.;11.
