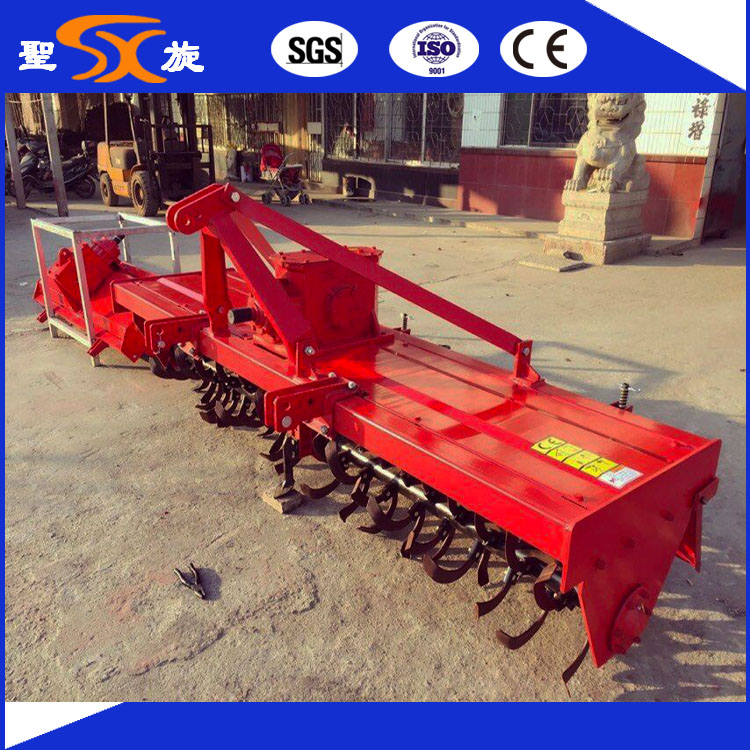

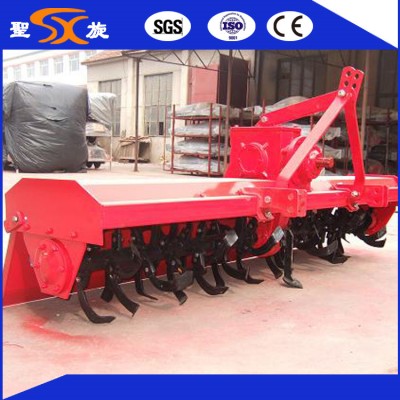

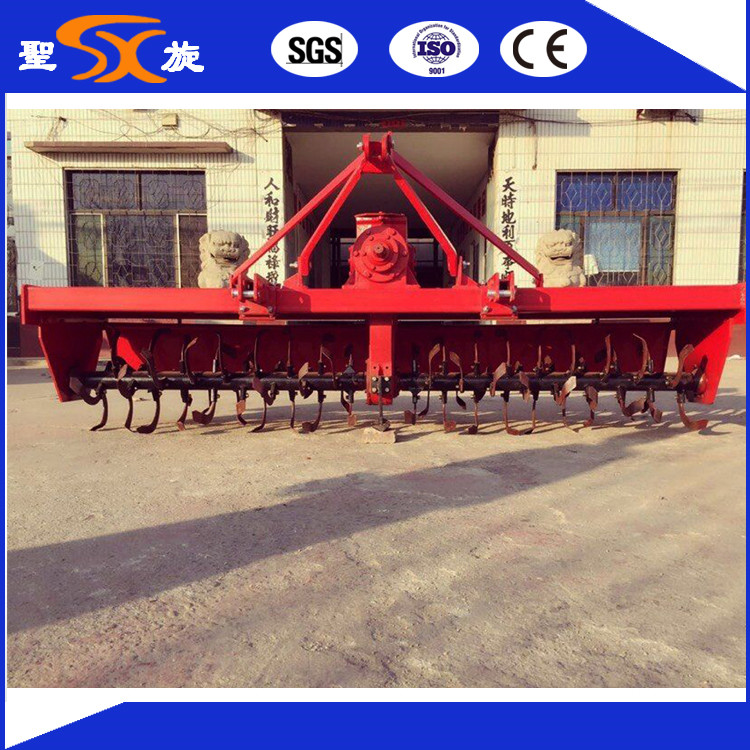

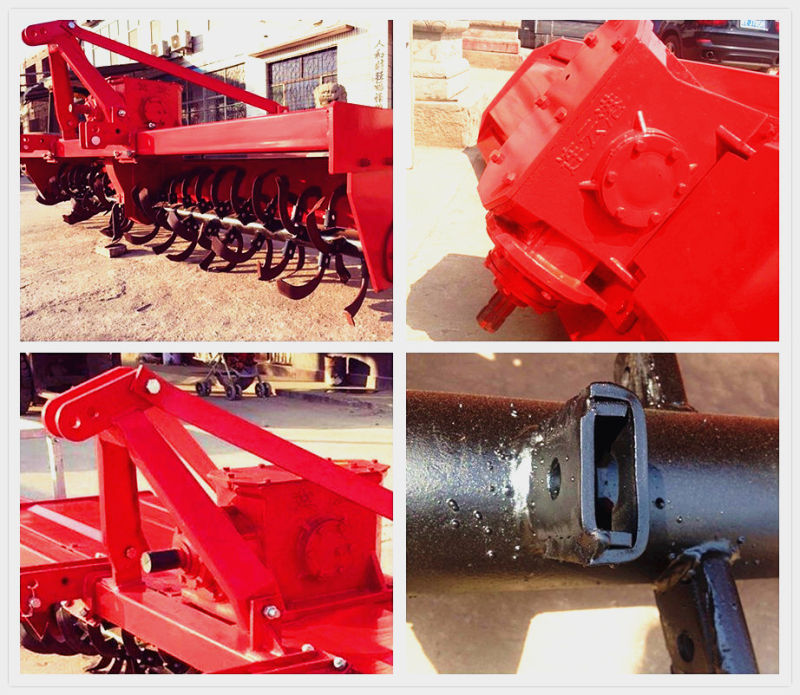

Farm machinery rotavator,rotary cultivator, rotary tiller ,farm tiller,agricultural tillerWeifang Shengxuan Machinery Factory ---- Product Technical Parameter of tractor tillers---- Rotary tiller's function. 1GKN series Rotary tiller is mainly used for agricultural planting, before sowing tillage operations. After cultivation, the surface is smooth, soft, fine, It is able to meet the intensive agronomic requirements. When working on wet or paddy fields, it can reduce the tractor wheels sinking and slipping lost . In southern China, rotary tiller is used for tillage before seeding winter wheat, rice as well as suburban vegetable land plowing operations, orchard weeding.1GKN-250 rotary tiller features :1.The 1GKN-250 rotary tiller adopts middle gear transmission . It uses middle high gear box which can be matched with 90-120hp tractor.
3.There are 58 IT245 blades , longer than ordinary one . material of blades is 65Mn.
4.Blade seat is made of double welded iron plate(thickness of iron plate is 4mm),more firm and durable.
5.High quality bearings,oil seal and gears. (bearings are bought from wanxiang group, gears are from famous factory in china, oil seal is imported from Taiwan)
6.More thicker iron plate: side panels thickness: 12mm, tailing plate: 3mm, cover plate:3mm
7.PTO shaft is with clutch to make the rotary tiller safe. ![Middle High Gear Box Farm/Agricultural Tractor Tillers on Sale]()

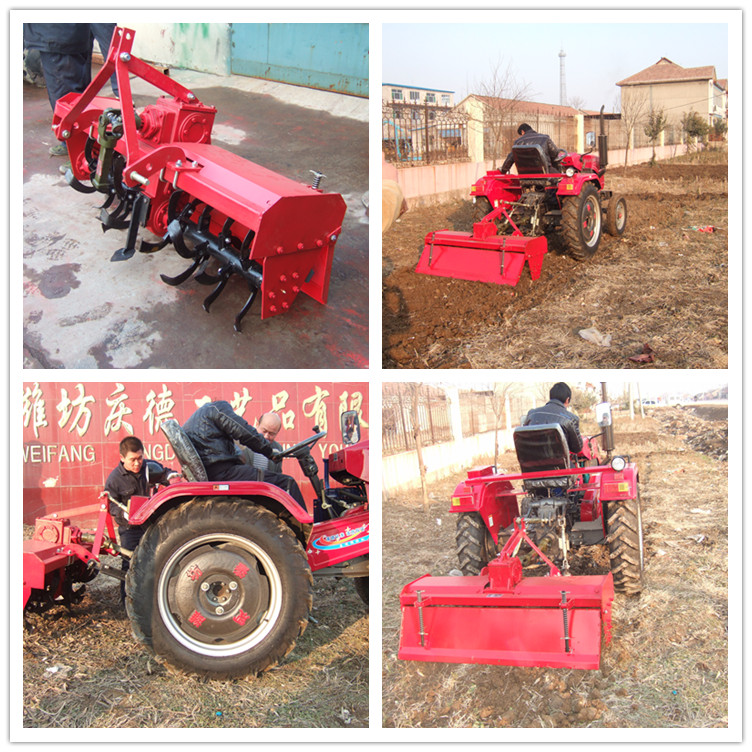

Rotary tiller working process: 1GQN series Rotary tiller is a power-driven machinery for cultivating. It is driven by tractor PTO rotating reel roller bladed to work. When working on dry land, tractor PTO drives rotary blades rotating, cutting the soil,. After the cracked clods, uniform coverage level, the ground does not appear furrows. Size and vertical structure are buried trip short edge of the corresponding reduced, and thus a higher productivity. With high Pulverizer performance, the ground is level. It can make full use of the power of tractor.1GKN-250 rotary tiller specification:
Model | 1GKN-250 |
(hp)
Matched power | 90-120 |
(cm)
.Working width | 245 |
| Working depth(cm) | 12-20 |
NO. of blades | 58 |
Type of blade | IT-245 |
(kg)
Total weight | 580 |
(r/min)
PTO axle rotary speed | 540 |
| Linkage | (Standard three-point mounted) |
spline | (6 spline) |
![Middle High Gear Box Farm/Agricultural Tractor Tillers on Sale]()
![Middle High Gear Box Farm/Agricultural Tractor Tillers on Sale]()
![Middle High Gear Box Farm/Agricultural Tractor Tillers on Sale]()

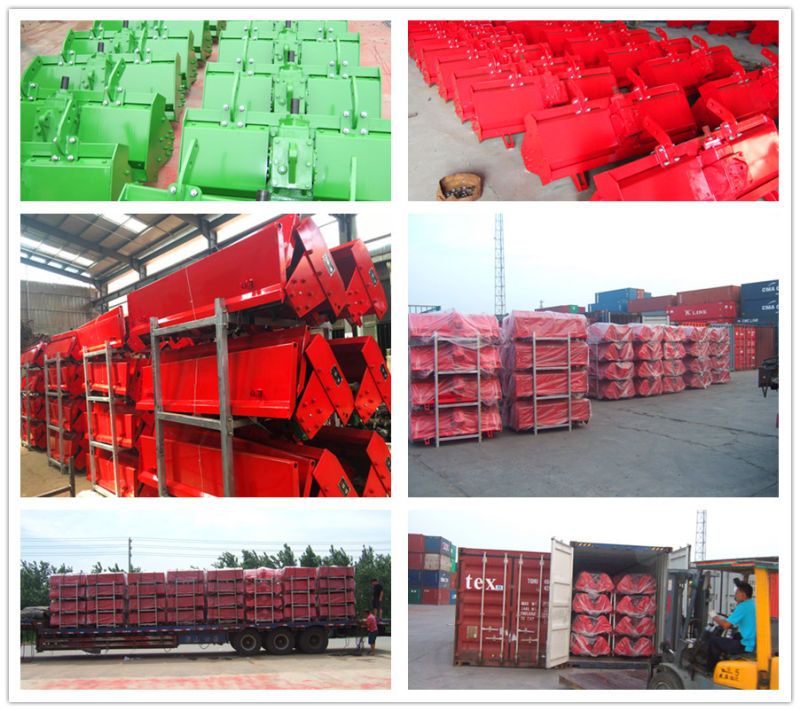

---- Packing &shipping of tractor tillers---- ![Middle High Gear Box Farm/Agricultural Tractor Tillers on Sale]()

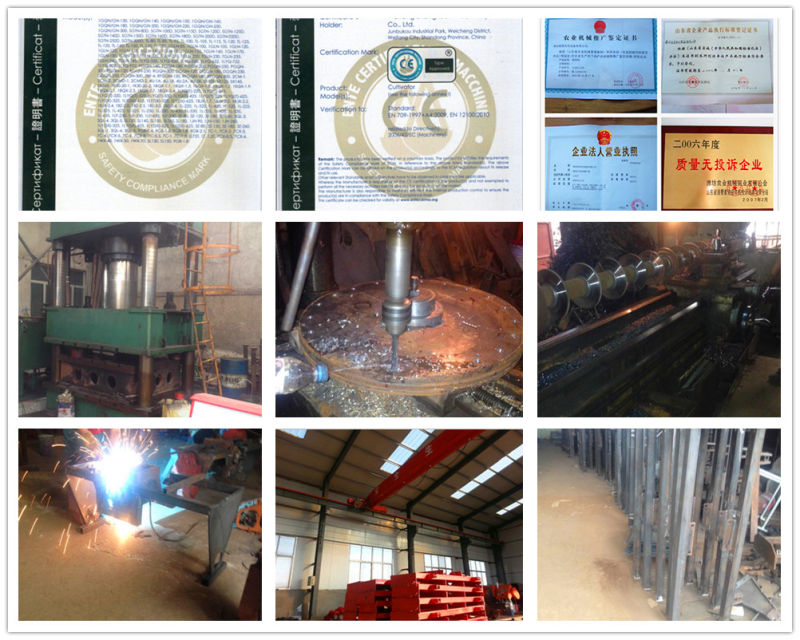

---- Certifications of tractor tillers---- ![Middle High Gear Box Farm/Agricultural Tractor Tillers on Sale]()
We also have other models:
1GQN-80 tractor tillers
1GQN-100 tractor tillers
1GQN-120 tractor tillers
1GQN-125 tractor tillers
1GQN-150 tractor tillers
1GQN-160 tractor tillers
1GQN-180 tractor tillers
1GQN-200 tractor tillers
1GQN-220 tractor tillers
1GQN-250 tractor tillers
1GQN-300 tractor tillers
1GQN-350 tractor tillers
1GQN-380 tractor tillers
1GQN-400 tractor tillers| Model | Matched power(hp) | No.of knives | Depth(cm) | Width(cm) | Type of knife | Weight
(kg) |
| 1GQN/GN-80 | 18-20 | 18 | 10-18 | 80 | IT225 | 180 |
| 1GQN/GN-100 | 18-20 | 22 | 10-18 | 100 | IT225 | 195 |
| 1GQN/GN-120 | 25 | 22 | 10-18 | 120 | IT225 | 205 |
| 1GQN/GN-125 | 25 | 26 | 10-18 | 125 | IT225 | 210 |
| 1GQN/GN-140 | 25-30 | 30 | 10-18 | 140 | IT225 | 220 |
| 1GQN/GN-150 | 25-30 | 34 | 10-18 | 150 | IT225 | 230 |
| 1GQN/GN-160 | 30-40 | 38 | 10-18 | 160 | IT225 | 240 |
| 1GQN/GN-180 | 50-55 | 42 | 12-20 | 180 | IT245 | 350 |
| 1GQN/GN-200 | 55-75 | 46 | 12-20 | 200 | IT245 | 370 |
| 1GQN/GN-220 | 60-80 | 50 | 12-20 | 220 | IT245 | 390 |
| 1GQN/GN-230 | 70-80 | 50 | 12-20 | 230 | IT245 | 400 |
| 1GQN/GN-250 | 75-90 | 58 | 12-20 | 250 | IT245 | 420 |
| 1GQN/GN-300 | 80-90 | 70 | 12-20 | 300 | IT245 | 480 |
About our factory
Established in 1984, Weifang Shengxuan Machinery Co., Ltd. is a professional manufacturer and exporter that is concerned with the design, development and production of farm machinery. We are located in Weifang City, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
We have over 150 employees, with an annual sales figure that exceeds USD 1500,000 and are currently exporting 90% of our products to worldwide countries. Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction.
As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching Italy, Germany, and Turkey.
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients from around the world in the near future.
----Buyer reading---- 1. Trade terms: FOB,CIF,EXW2. Sample Policy: You can test the quality of our sample firstly before you purchase them in mass quantity. 3. MOQ: 1 set 4. Payment Way: T/T, L/C, Western Union, D/P. 5. Delivery Date: 10-30 days after deposit paid. It depends on your order quantity. 6. Shipping Way: By Sea or By Air. 7. After Service: 12 months guarantee of the main parts, we will send the guarantee parts together with the machine in your next order or we can send them by air express if you need them urgently. ----FAQ---- 1.Q: Full price list for these products A:If you need the price list for these products, please notify the product model so that i can quote you accordingly.Please understand we have a very wide product range, we don't usually offer full products price list. 2. Q: Business termsA:Shipment time: 25-40days after your paymentShipment: By seaLoading port: qingdao port, ChinaDestination port: ...To be advisedPayment: T/T, L/C, Western UnionWarranty: 1 year 3. RE: CEA: Most of our products are certified by CE. Why choose SX for cooperation?
Comparing with our competitors, we have much more advantages as follows:1.More than 30 years in manufacturing farming machine 2.More Professional Sales staffs to guarantee the better service3. More agri machines for your choice4. More New products into your range to avoid price competition5.Larger quantity production and shipment6.Better quality to guarantee better Credit.
