Large Waterland Gap Disc Cultivator with Hydraulic Scraper--Weifang Shengxuan Machinery Co., Ltd.

Purchase Qty.: (set)	1-9 10-49 50+
FOB Unit Price:	US $1,460 US $1,450 US $1,440

Purchase Qty. (set)	FOB Unit Price
1-9	US $1,460
10-49	US $1,450
50+	US $1,440

Basic Info

Model NO.: 1LYQ-825
Application Field: Agriculture
Power Source: Tractor
Traction Type: Hanging
Arbor Configuration: Horizontal Axis
Color: Red
Working Width: 1900mm
Weight: 650kg
Matched Power: 90-120HP
Factory: Weifang Shengxuan
Transport Package: Iron Frame
Origin: China

Type: Disc Plough
Farming Policy: Paddy Field Machinery
Operation: Soil Preparation Machinery, Continuous Running Operation
Drive Type: Gear Drive
Certification: SGS, CE
No. of Discs: 8
Working Depth: 120-180mm
Packing Size: 2400*1000*1000mm
Material: Iron Plate
Trademark: sx
Specification: 1LYQ-825
HS Code: 8432100000

Product Description

Weifang Shengxuan Machinery Factory
---- Product Technical Parameter ----
Product Informations.
1.Name: Farm machinery PADDY FIELD driven disc plough
2.Cetification:CE(Europe standarded)
3.Suitable for the paddy field land
4.Speed of PTO shaft is:540RPM
5.Brand:SHENGXUAN
6.Three piont linkage
7.Type of drive:Side gear trabsmission
8.There are 1LYQ-320,420,520,622,722,822,922 ,825 .925 suitable for18-120hp tractors

Model	Matched power(hp)	(cm) Working width	(cm) Working depth	No.ofdisc	Total weight(kg)	O.D. mm(LWH)
1LYQ-320	12-18	660	12-20	3	180	86511651050
1LYQ-420	18-25	880	12-20	4	216	96513651050
1LYQ-520	25-30	1100	12-20	5	276	107515851050
1LYQ-622	40-50	1320	12-20	6	321	121018051050
1LYQ-722	60-80	1540	12-20	7	357	132520251050
1LYQ-822	70-80	1760	12-20	8	393	144022451050
1LYQ-922	80-90	1980	12-20	9	430	155524651050
LYQ-825	90-120	1900	12-20	8	650	145023001050
LYQ-925	90-120	2100	12-20	9	700	160025001050
LYQ-1028	100-120	2500	12-20	10	750	170027001050

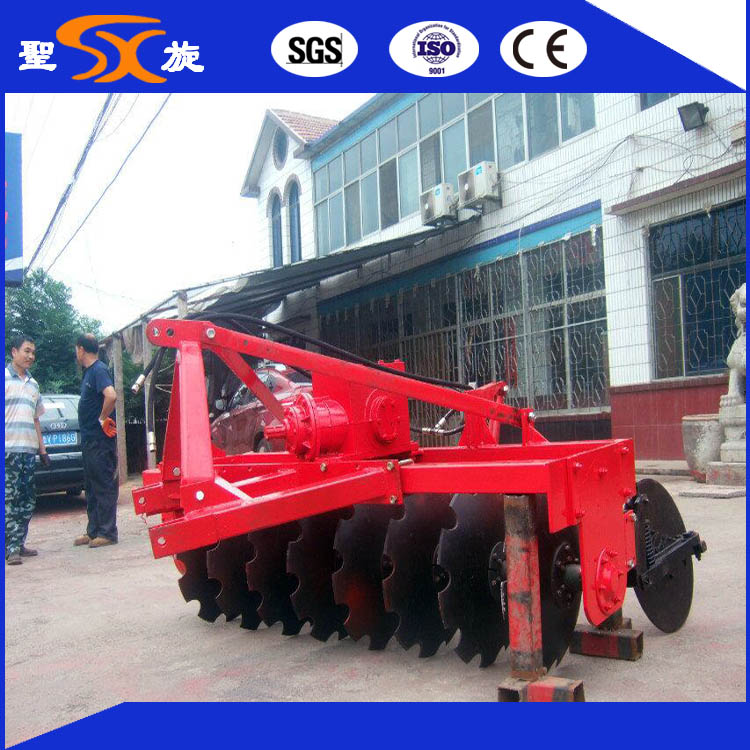

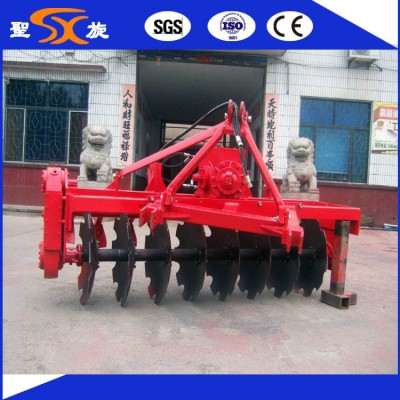

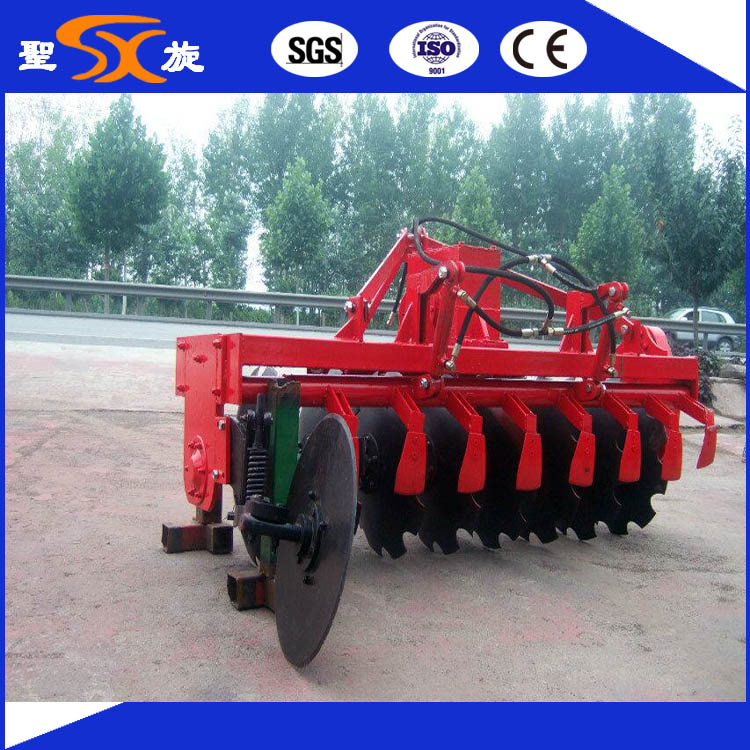

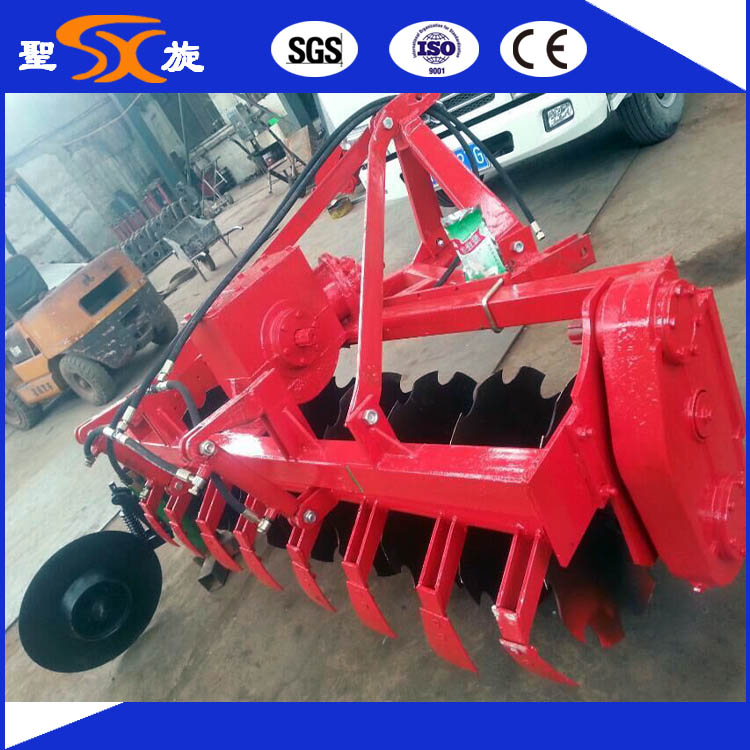

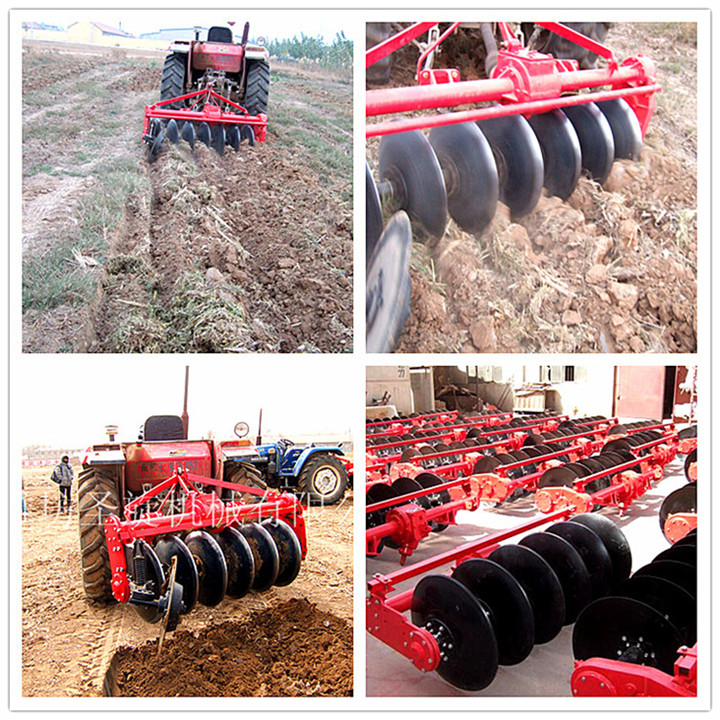

---- Products Show ----
Large Waterland Gap Disc Cultivator with Hydraulic Scraper

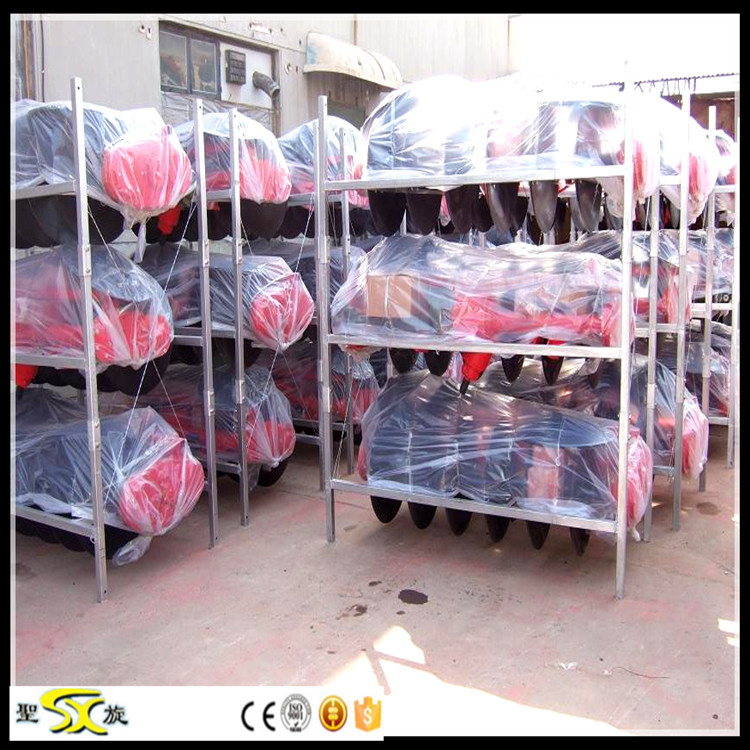

---- Packing &shipping ----

Large Waterland Gap Disc Cultivator with Hydraulic Scraper

---- Certifications ----

----Buyer reading----

1. Trade terms: FOB,CIF,EXW
2. Sample Policy: You can test the quality of our sample firstly before you purchase them in mass quantity.
3. MOQ: 1 set
4. Payment Way: T/T, L/C, Western Union, D/P.
5. Delivery Date: 10-30 days after deposit paid. It depends on your order quantity.
6. Shipping Way: By Sea or By Air.
7. After Service: 12 months guarantee of the main parts, we will send the guarantee parts together with the machine in your next order or we can send them by air express if you need them urgently.

----FAQ----

1.Q: Full price list for these products
A:If you need the price list for these products, please notify the product model so that i can quote you accordingly.
Please understand we have a very wide product range, we don't usually offer full products price list.

2. Q: Business terms
A:
Shipment time: 25-40days after your payment
Shipment: By sea
Loading port: qingdao port, China
Destination port: ...To be advised
Payment: T/T, L/C, Western Union
Warranty: 1 year

3. RE: CE
A: Most of our products are certified by CE.

4.Q:Sample test
A:Now our agri machines are exported in large quantity.
If you need one sample for test, we advise you to get this sample from the domestic dealers.
If you want to get from us directly, usually we advise to order at least one pallet per product.

5.Q:Why choose SX for cooperation?
A: Comparing with our competitors, we have much more advantages as follows:
1.More than 30 years in manufacturing farming machine 2.More Professional Sales staffs to guarantee the better service
3. More agri machines for your choice
4. More New products into your range to avoid price competition
5.Larger quantity production and shipment
6.Better quality to guarantee better Credit.
7.Faster delivery time:only45days
8.More stick quality checking before shipment.
9.More reasonable after-sales service terms.
10.More famous brand: SHENGXUAN" brand and "CE"ceitification.;
11..Lower repair rate and bad review rate.
12. We have American Branch to show our main products.We can give customers best service.
Welcome to contact us for more details!!!
