Small farm equipment Rotary Cultivator/Rotary Tiller/Rototiller(1GQN-120/1GQN-125/1GQN-140)Weifang Shengxuan Machinery Factory
---- Product Technical Parameter ----
Rotary tiller's function. 1GQN series Rotary tiller is mainly used for agricultural planting, before sowing tillage operations. After cultivation, the surface is smooth, soft, fine, It is able to meet the intensive agronomic requirements. When working on wet or paddy fields, it can reduce the tractor wheels sinking and slipping lost . In southern China, rotary tiller is used for tillage before seedding winter wheat, rice as well as suburban vegetable land plowing operations, orchard weeding.1GQN-140 rotary tiller features :1.The 1GQN-140 rotary tiller adopts middle gear transmission and can be mounted with 50-55hp tractor.The rotary speed of blade axle is 190-270 r/min. The number of bevel bear teeth is 20. which is more faster than ordinary one.
3.There is 30 IT225 blades . material of blades is 65Mn.
4.Blade seat is made of double welded iron plate(thickness of iron plate is 4mm),more firm and durable.

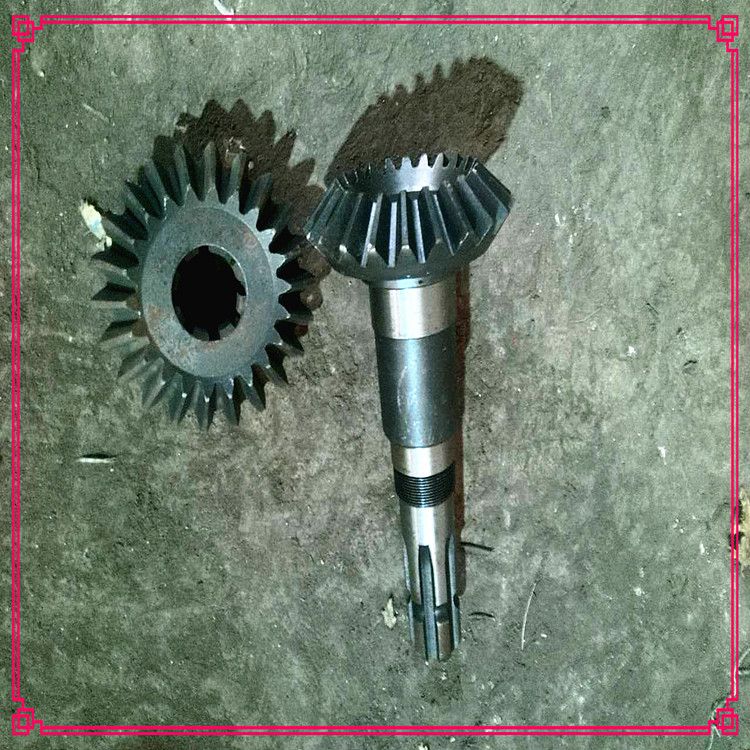

5.High quality bearings,oil seal and gears. (bearings are bought from wanxiang group, gears are from famous factory in china, oil seal is imported from Taiwan)
6.More thicker iron plate: side panels thickness: 10mm, tailing plate: 2mm, cover plate:2mm

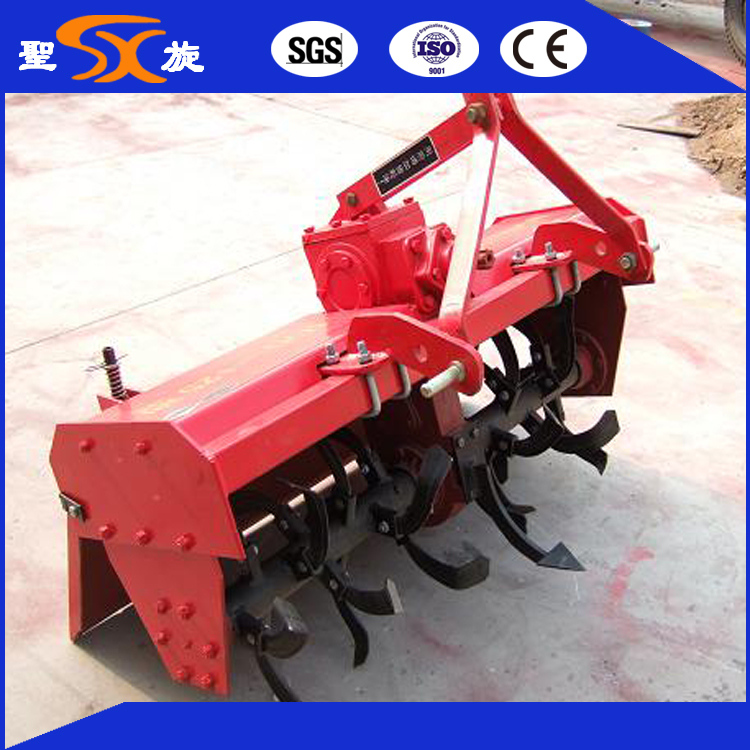

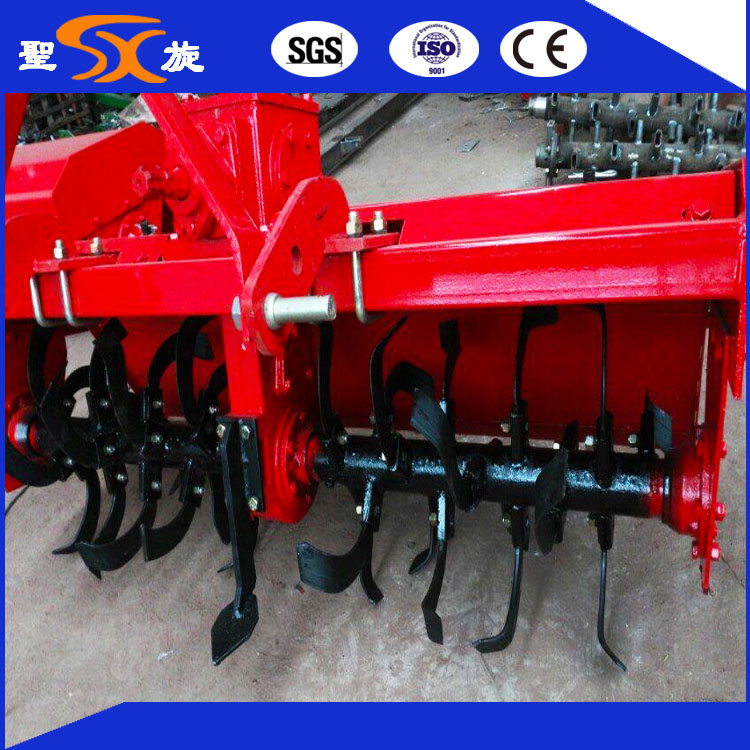

7.PTO shaft is with clutch to make the rotary tiller safe. ---- Products Show of the rototiller ----
![High Axle Rotary Speed Rotatiller on Sale]()
---- Product specifications of the rototiller----
| Model | Matched power(hp) | Working width(cm) | Working depth cm | No.of knives | Type of knife | Total weight(kg) | O.D. mm
(L*W*H) |
| 1GQN/GN-80 | 15-20 | 70 | 10~18 | 18 | IT225 | 175 | 850*700*700 |
| 1GQN/GN-100 | 18-22 | 90 | 10-18 | 18 | IT225 | 180 | 1050*700*700 |
| 1GQN/GN-120 | 20-25 | 110 | 10-18 | 22 | IT225 | 190 | 1250*700*700 |
| 1GQN/GN-125 | 20-25 | 115 | 10-18 | 26 | IT225 | 195 | 1300*700*700 |
| 1GQN/GN-140 | 25-30 | 130 | 10-18 | 30 | IT225 | 200 | 1450*700*700 |
| 1GQN/GN-150 | 25-30 | 140 | 10-18 | 34 | IT225 | 210 | 1550*800*800 |
| 1GQN/GN-160 | 30-40 | 150 | 10-18 | 38 | IT225 | 230 | 1650*800*800 |
| 1GQN/GN-180 | 50-60 | 165 | 12-20 | 42 | IT245 | 350 | 900*800*800 |
| 1GQN/GN-200 | 55-75 | 185 | 12-20 | 46 | IT245 | 380 | 2100*800*800 |
| 1GQN/GN-220 | 60-80 | 205 | 12-20 | 50 | IT245 | 400 | 2303*800*800 |
| 1GQN/GN-250 | 75-80 | 235 | 12-20 | 58 | IT245 | 400 | 2600*800*800 |
| 1GQN/GN-300 | 90-120 | 285 | 12-20 | 70 | IT-245 | 600 | 3100*900*900 |
| 1GQN/GN-350 | 125-150 | 335 | 12-20 | 82 | IT-245 | 870 | 3600*950*950 |
| 1GQN/GN-400 | 140-160 | 385 | 12-20 | 94 | IT-245 | 940 | 4100*950*950 |
![High Axle Rotary Speed Rotatiller on Sale]()

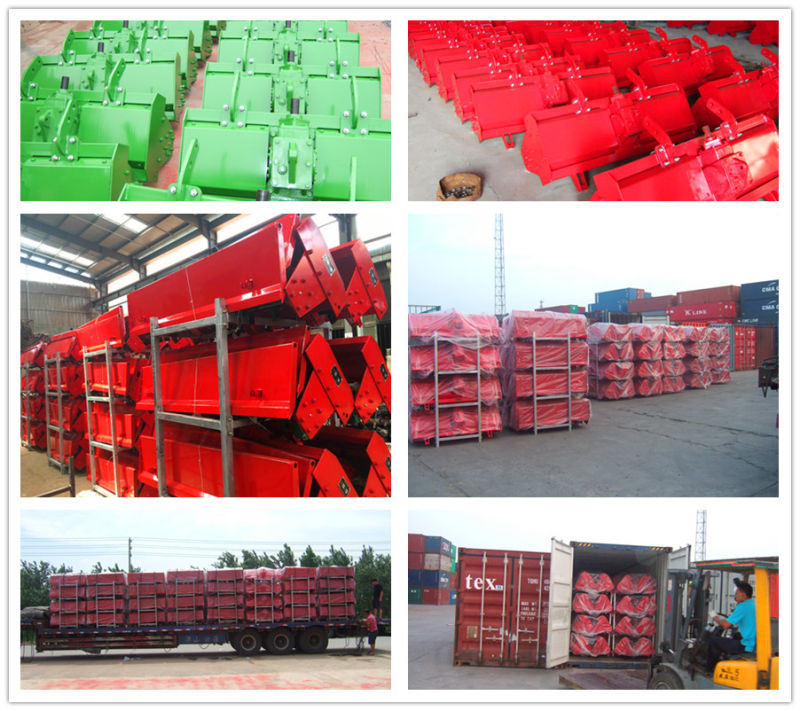

---- Packing &shipping of the rototiller---- ![High Axle Rotary Speed Rotatiller on Sale]()

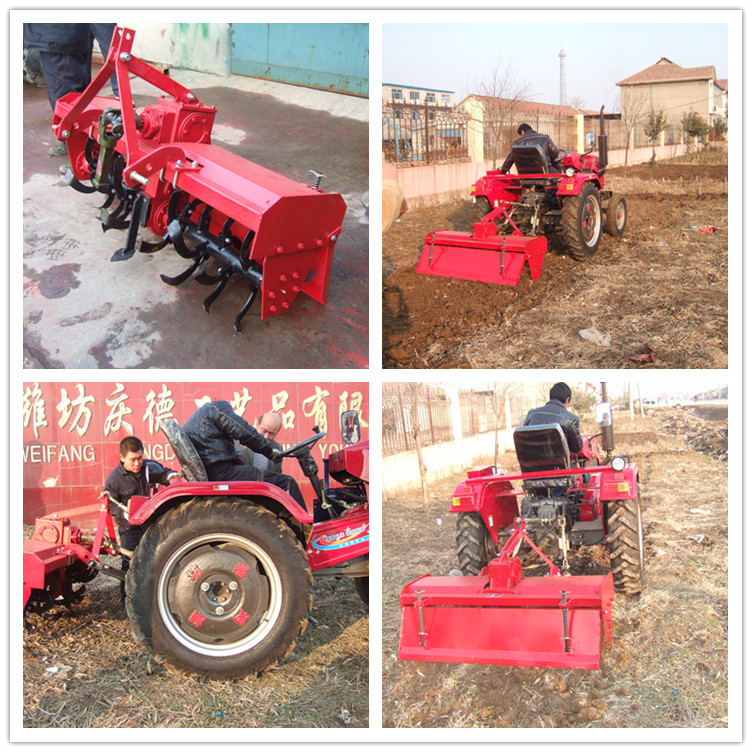

---- The working image of the rototiller----
![High Axle Rotary Speed Rotatiller on Sale]()

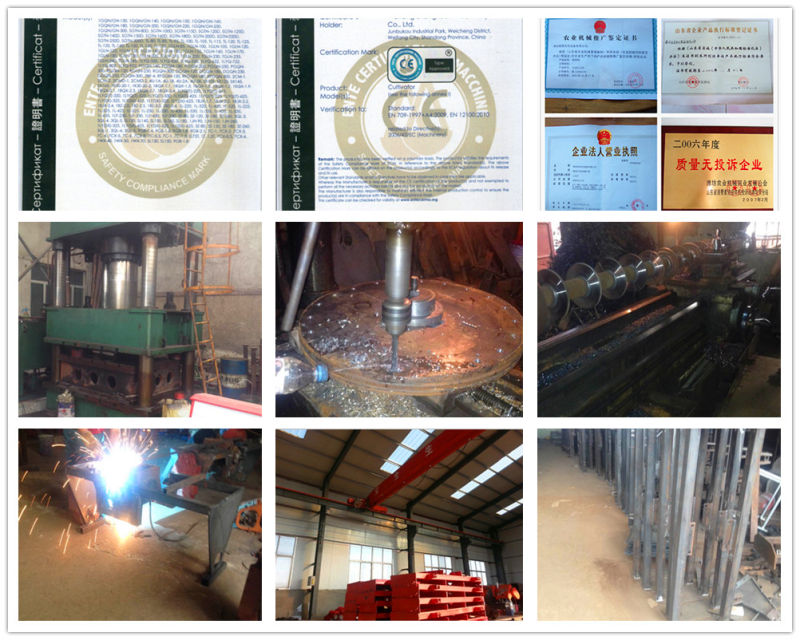

---- Certifications of the rototiller----
![High Axle Rotary Speed Rotatiller on Sale]()
We also have other models:
1GQN-80 rotatiller
1GQN-100 rotatiller
1GQN-120 rotatiller
1GQN-125 rotatiller
1GQN-150 rotatiller
1GQN-160 rotatiller
1GQN-180 rotatiller
1GQN-200 rotatiller
1GQN-220 rotatiller
1GQN-250 rotatiller
1GQN-300 rotatiller
1GQN-350 rotatiller
1GQN-380 rotatiller
1GQN-400 rotatiller About Our Factory
Established in 1984, Weifang Shengxuan Machinery Co., Ltd. is a professional manufacturer and exporter that is concerned with the design, development and production of farm machinery. We are located in Weifang City, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
We have over 150 employees, with an annual sales figure that exceeds USD 1500,000 and are currently exporting 90% of our products to worldwide countries. Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction.
As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching Italy, Germany, and Turkey.
-------Factory advantages-------A: Comparing with our competitors, we have much more advantages as follows:
1.More than 30 years in manufacturing farming machine 2.More Professional Sales staffs to guarantee the better service
3. More agri machines/garden tools for your choice
4. More New products into your range to avoid price competition
5.Larger quantity production and shipment
6.Better quality to guarantee better Credit.
7.Faster delivery time:only45days
8.More stick quality checking before shipment.
9.More reasonable after-sales service terms.
10.More famous brand: SHENGXUAN" brand and "CE" "SGS"ceitification.;
11..Lower repair rate and bad review rate.
12. We have American Branch to show our main products.We can give customers best service.
Welcome to contact us for more details!!!
----Buyer reading &FAQ----
1. Trade terms: FOB,CIF,EXW
2. Sample Policy: You can test the quality of our sample firstly before you purchase them in mass quantity.
3. MOQ: 1 set
4. Payment Way: T/T, L/C, Western Union, D/P.
5. Delivery Date: 10-30 days after deposit paid. It depends on your order quantity.
6. Shipping Way: By Sea or By Air.
7. After Service: 12 months guarantee of the main parts, we will send the guarantee parts together with the machine in your next order or we can send them by air express if you need them urgently.
8.The model of the cultivator:1GQN-100/1GQN-120/1GQN-150/1GQN-160/1GQN-180/1GQN-200/1GQN-250/1GQN-300/1QN-350/1GQN-400
Q1: Full price list for these products
A:If you need the price list for these products, please notify the product model so that i can quote you accordingly.Please understand we have a very wide product range, we don't usually offer full products price list.
Q2: Business terms
Shipment time: 25-40days after your payment
Shipment: By sea
Loading port: qingdao port, China
Destination port: ...To be advised
Payment: T/T, L/C, Western Union
Warranty: 1 year
Q3:RE: CE
A: Most of our products are certified by CE.
