Best Price for Farm/Agricultural Tilling Machine with--Weifang Shengxuan Machinery Co., Ltd.

Purchase Qty.: (set)	1-9 10-49 50+
FOB Unit Price:	US $870 US $860 US $850

Purchase Qty. (set)	FOB Unit Price
1-9	US $870
10-49	US $860
50+	US $850

Basic Info

Model NO.: SGTN-180
Application Field: Agriculture
Power Source: Tractor
Traction Type: Hanging
Arbor Configuration: Horizontal Axis
Color: Red
Working Width: 1750mm
Weight: 365kg
Type of Blades: Sgtn-L
Material: Iron Plate
Trademark: sx
Specification: GB
HS Code: 8432100000

Type: Rotary Tiller
Farming Policy: Dry Cultivating Machinery
Operation: Soil Preparation Machinery, Continuous Running Operation
Drive Type: Gear Drive
Certification: SGS, CE
No. of Blades: 48
Working Depth: 80-160mm
Matched Power: 50-60HP
Packing Size: 1950*700*700
Factory: Weifang Shengxuan
Transport Package: Iron Frame
Origin: China

Product Description

Weifang Shengxuan Machinery Factory

---- Product Technical Parameter ----
Rotary tiller's function.
SGTN series Rotary tiller is mainly used for agricultural stubble and tillage operations. After cultivation, the surface is smooth, soft, fine, and the straw can be crushed into small parts. It is able to meet the intensive agronomic requirements. When working on wet or paddy fields, it can reduce the tractor wheels sinking and slipping lost . In southern China, rotary tiller is used for tillage before seedding winter wheat, rice as well as suburban vegetable land plowing operations, orchard weeding.

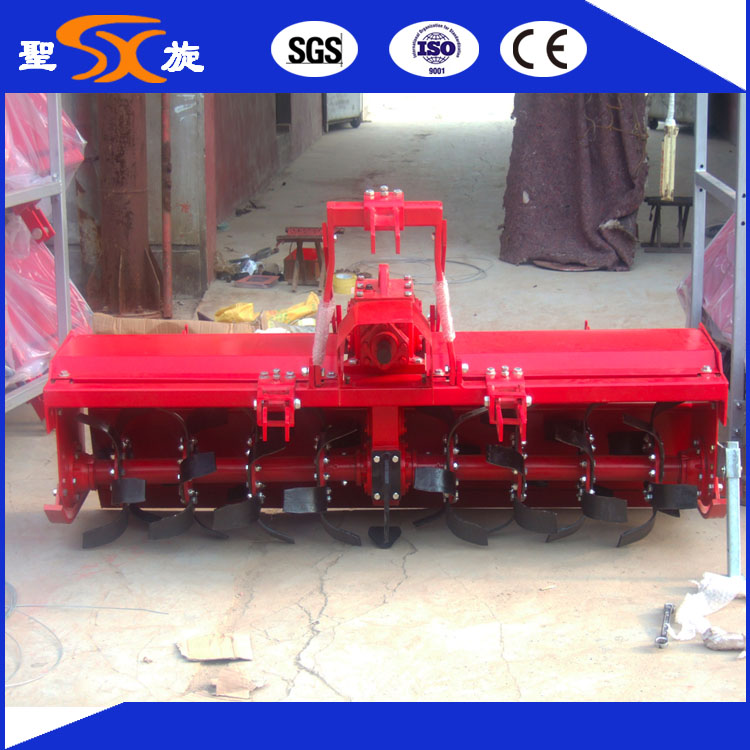

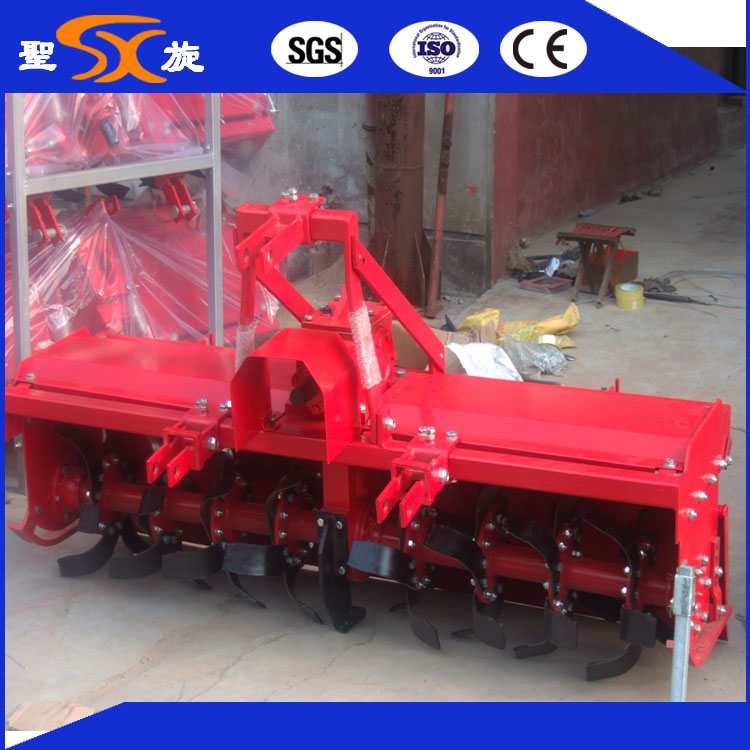

SGTN-180 rotary tiller features :
1.The SGTN-180 rotary tiller adopts middle gear transmission and can be mounted with 50-55hp tractor.

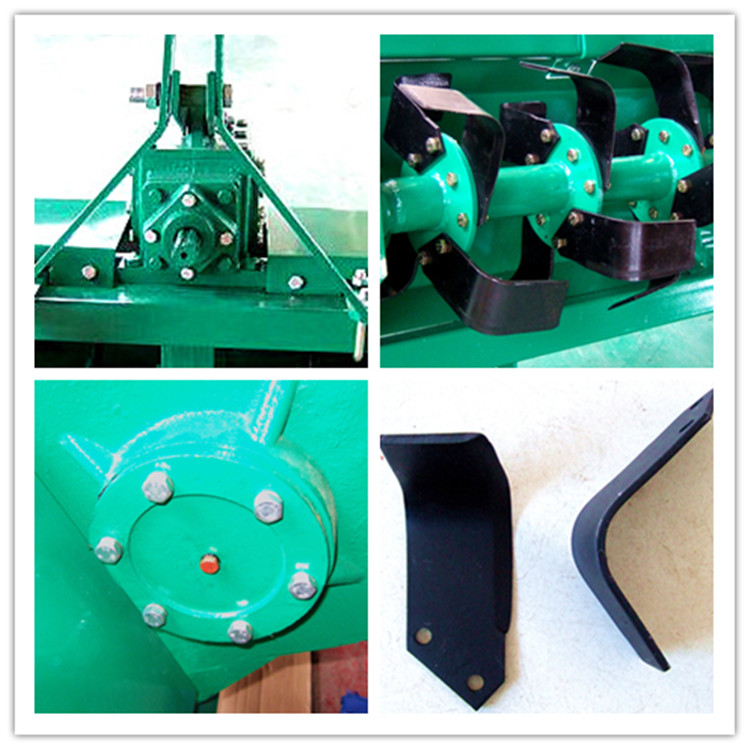

3.There is 48 sgtn-L blades .more wider and more thicker than ordinary blades. material of blades is 60Si2Mn, three time than ordinary blades in Durability.
4.Blade seat is made of Flanges(thickness of iron plate is 12mm),more firm and durable. Every flange has 6 blades.
5.High quality bearings,oil seal and gears. (bearings are bought from wanxiang group, gears are from famous factory in china, oil seal is imported from Taiwan)
6.More thicker iron plate: side panels thickness: 12mm, tailing plate: 2mm, cover plate:2mm
7.PTO shaft is with clutch to make the rotary tiller safe. Best Price for Farm/Agricultural Tilling Machine with

Best Price for Farm/Agricultural Tilling Machine with

Rotary tiller working process:

SGTN series Rotary tiller is a power-driven machinery for cultivating. It is driven by tractor PTO rotating reel roller bladed to work. When working on dry land, tractor PTO drives rotary blades rotating, cutting the soil,. After the cracked clods, uniform coverage level, the ground does not appear furrows. Size and vertical structure are buried trip short edge of the corresponding reduced, and thus a higher productivity. With high Pulverizer performance, the ground is level. It can make full use of the power of tractor.

SGTN-180 rotary tiller specifications:

Model		SGTN-180
Matched power(hp)		50-55
. Working width (cm)		1750
NO. of knivf		48
Type of kinf		L
Total weight(kg)		390
O. D. (mm)	L	900
	W	1950
	H	1000
working depth (cm)	Dry farmland	8-14
	paddy field	10-16
Esport axle rotory speed(r/min)		540
Linkage		(Standard three-point mounted)

---- Packing &shipping ----

Best Price for Farm/Agricultural Tilling Machine with

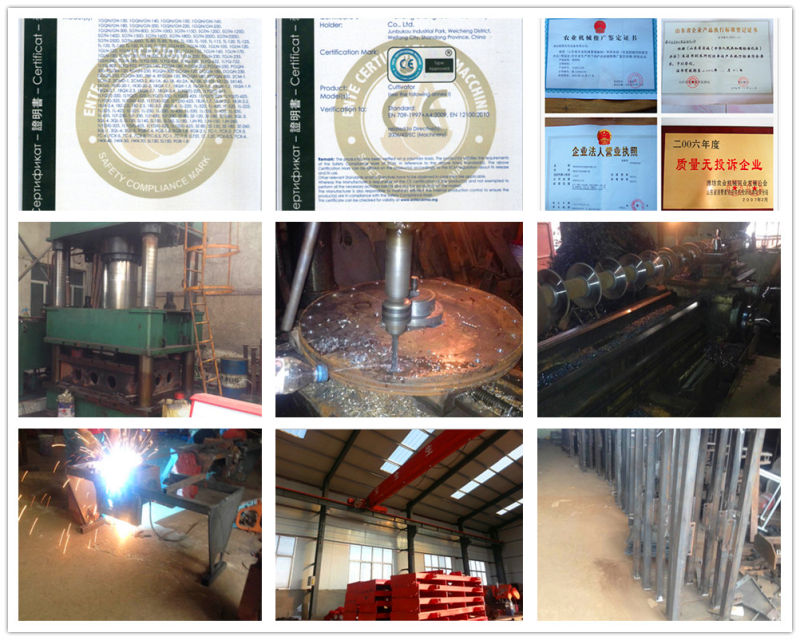

---- Certifications ----

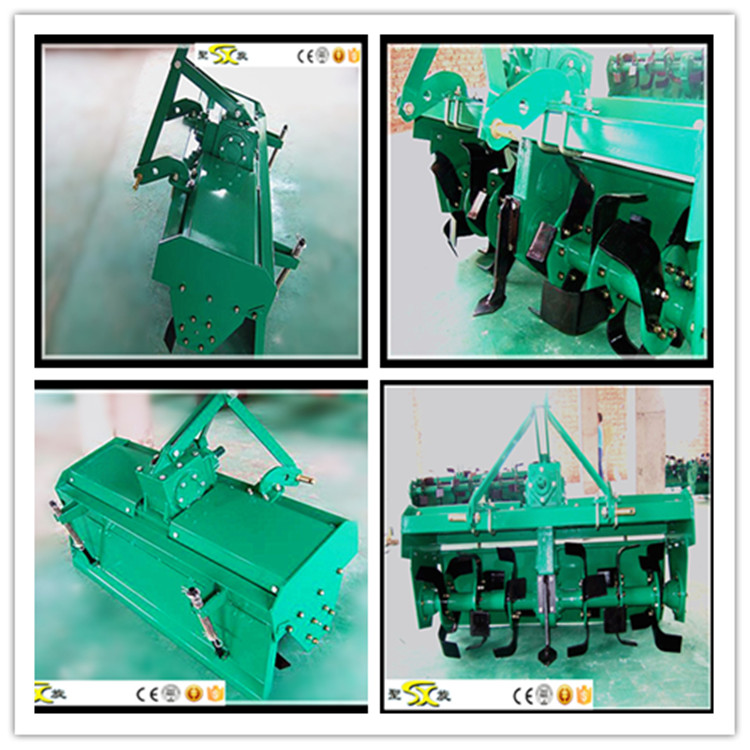

We also have other models:

Model		SGTN-100	SGTN-115	SGTN-120	SGTN-125	SGTN-140	SGTN-150	SGTN-160	SGTN-180	SGTN-200	SGTN-220	SGTN-250		SGTN-300

(hp) Matched power		18-20	18-20	25	25	25-30	25-30	30-40	50-55	55-75	60-80	75-90		80-90
(cm) .Working width		95	110	115	120	135	145	155	175	195	215	245		295
NO. of blades		24	24	24	24	24	24	24	32	32	40	40		56
Type of blade		SGTN-L
(kg) Total weight		200	205	210	215	220	230	250	370	390	410	440	500
(mm) O.D.	(L)	850	900	900	900	900	900	900	1020	1020	1020	1020	1020
	(W)	1040	1190	1240	1290	1440	1540	1640	1860	2060	2260	2560	3060
	(H)	1000	1000	1000	1000	1000	1000	1000	1152	1152	1152	1152	1152
(cm) working depth		8-14
		10-16
(r/min) PTO axle rotary speed		530-730							540-720
(r/min) Knife axle rotary speed		180-250							200-240
(km/h) Walking speed		1-4							2-5
(%) Rate of working depth		≥85
(cm) Soil level after worked		≤5
(%) Vegetation covered rate		≥55
(%) The rate of crushed soil		≥50
Linkage		(Standard three-point mounted)
