---- Product Technical Parameter ---- Rotary tiller's function.
SGTN series Rotary tiller is mainly used for agricultural stubble and tillage operations. After cultivation, the surface is smooth, soft, fine, and the straw can be crushed into small parts. It is able to meet the intensive agronomic requirements. When working on wet or paddy fields, it can reduce the tractor wheels sinking and slipping lost . In southern China, rotary tiller is used for tillage before seedding winter wheat, rice as well as suburban vegetable land plowing operations, orchard weeding. The difference between this SGTN series rotary tiller from other rotary tiller is:
1. SGTN series tiller uses wider and thicker blades. Blade material is 60Si2Mn, wear-resistant and durable, suitable for straw jobs, increase soil organic matter content and improve soil fertility. 2. Besides, SGTN series rotary tiller uses knife flanges, thickness is 12mm,not easily damaged, increasing its useful life,every flange has 4 wide blades.
3.SGTN type rotary tiller is with a beautiful appearance, strong and thick texture, economical and durable quality by the local users of all ages.
4. Our company can offers tillage width from 1m to 4m .bearings and oil seals are all from well-known parts domestic manufacturers, quality assurance.
5. More sophisticated surface treatment, the shot blasting machine , paint rooms, punching machines and other equipment are readily available, There are hundreds of rotary tiller exported to Europe, North and South America, Southeast Asia, Central Asia, Russia and other countries every year.
6. With CE certification, SGS certification
7. With middle gear transmission
![Matched with Big Tractor Rotary Stubbling Tiller on Sale]()
Rotary tiller working process:
SGTN series Rotary tiller is a power-driven machinery for cultivating. It is driven by tractor PTO rotating reel roller bladed to work. When working on dry land, tractor PTO drives rotary blades rotating, cutting the soil,. After the cracked clods, uniform coverage level, the ground does not appear furrows. Size and vertical structure are buried trip short edge of the corresponding reduced, and thus a higher productivity. With high Pulverizer performance, the ground is level. It can make full use of the power of tractor.
| Model | SGTN-200 |
| Matched power(hp) | 55-75 |
| . Working width (cm) | 1950 |
| NO. of knivf | 32 |
| Type of kinf | L |
| Total weight(kg) | 400 |
| O. D. (mm) | L | 900 |
| W | 2100 |
| H | 1000 |
| working depth (cm) | Dry farmland | 8-14 |
| paddy field | 10-16 |
| Esport axle rotory speed(r/min) | 540 |
| Linkage | (Standard three-point mounted) |
![Matched with Big Tractor Rotary Stubbling Tiller on Sale]()
![Matched with Big Tractor Rotary Stubbling Tiller on Sale]()
![Matched with Big Tractor Rotary Stubbling Tiller on Sale]()

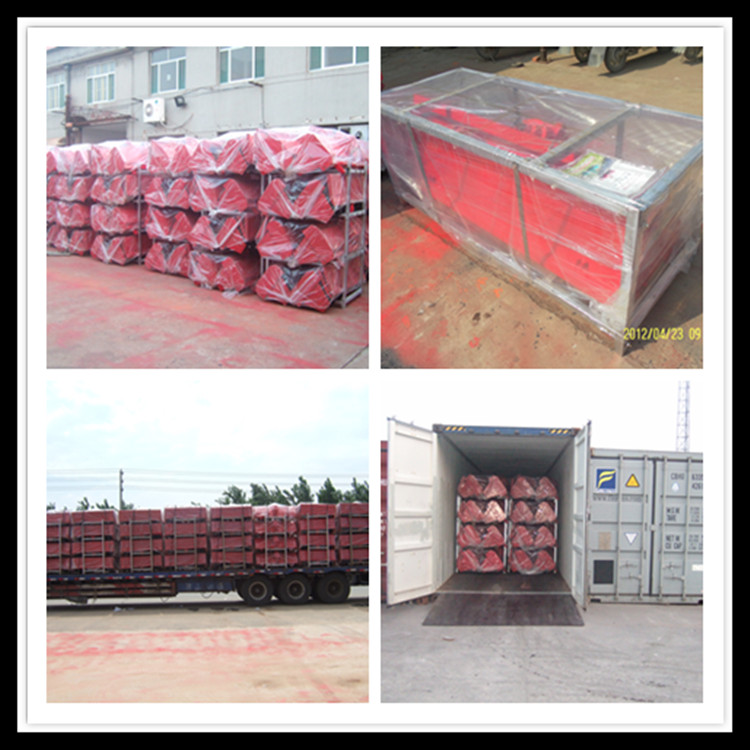

---- Packing &shipping ----
![Matched with Big Tractor Rotary Stubbling Tiller on Sale]()
---- Certifications ----
![Matched with Big Tractor Rotary Stubbling Tiller on Sale]()
We also have other models for rotary machine:
SGTN-100 rotary stubbling machine
SGTN-120 rotary stubbling machine
SGTN-125 rotary stubbling machine
SGTN-140 rotary stubbling machine
SGTN-150 rotary stubbling machine
SGTN-160rotary stubbling machine
SGTN-180 rotary stubbling machine
SGTN-200 rotary stubbling machine
SGTN-220 rotary stubbling machine
SGTN-250 rotary stubbling machine
SGTN-280 rotary stubbling machine
SGTN-300 rotary stubbling machine
SGTN-350 rotary stubbling machine
Model | SGTN-100 | SGTN-115 | SGTN-120 | SGTN-125 | SGTN-140 | SGTN-150 | SGTN-160 | SGTN-180 | SGTN-200 | SGTN-220 | SGTN-250 | SGTN-300 |
| | | | | | | | | | | | | |
(hp)
Matched power | 18-20 | 18-20 | 25 | 25 | 25-30 | 25-30 | 30-40 | 50-55 | 55-75 | 60-80 | 75-90 | 80-90 |
(cm)
.Working width | 95 | 110 | 115 | 120 | 135 | 145 | 155 | 175 | 195 | 215 | 245 | 295 |
NO. of blades | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 32 | 32 | 40 | 40 | 56 |
Type of blade | SGTN-L |
(kg)
Total weight | 200 | 205 | 210 | 215 | 220 | 230 | 250 | 370 | 390 | 410 | 440 | 500 |
(mm)
O.D. | (L) | 850 | 900 | 900 | 900 | 900 | 900 | 900 | 1020 | 1020 | 1020 | 1020 | 1020 |
| | (W) | 1040 | 1190 | 1240 | 1290 | 1440 | 1540 | 1640 | 1860 | 2060 | 2260 | 2560 | 3060 |
| | (H) | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1152 | 1152 | 1152 | 1152 | 1152 |
| (cm) working depth | | 8-14 |
| | | 10-16 |
(r/min)
PTO axle rotary speed | 530-730 | 540-720 |
(r/min)
Knife axle rotary speed | 180-250 | 200-240 |
(km/h)
Walking speed | 1-4 | 2-5 |
(%)
Rate of working depth | ≥85 |
(cm)
Soil level after worked | ≤5 |
(%)
Vegetation covered rate | ≥55 |
(%)
The rate of crushed soil | ≥50 |
| Linkage | (Standard three-point mounted) |
About Our Factory
Established in 1984, Weifang Shengxuan Machinery Co., Ltd. is a professional manufacturer and exporter that is concerned with the design, development and production of farm machinery. We are located in Weifang City, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
We have over 150 employees, with an annual sales figure that exceeds USD 1500,000 and are currently exporting 90% of our products to worldwide countries. Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction.
As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching Italy, Germany, and Turkey.
