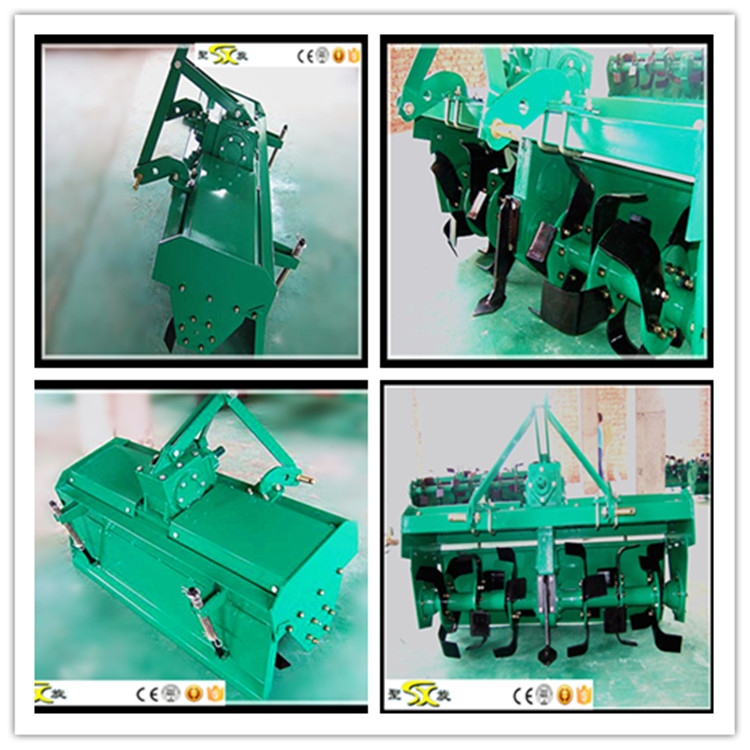

---- Product Technical Parameter ---- Rotary tiller's function. SGTN series Rotary tiller is mainly used for agricultural stubble and tillage operations. After cultivation, the surface is smooth, soft, fine, and the straw can be crushed into small parts. It is able to meet the intensive agronomic requirements. When working on wet or paddy fields, it can reduce the tractor wheels sinking and slipping lost . In southern China, rotary tiller is used for tillage before seedding winter wheat, rice as well as suburban vegetable land plowing operations, orchard weeding.SGTN-150rotary tiller features :1.The SGTN-150 rotary tiller adopts middle gear transmission and can be mounted with 25-30hp tractor.

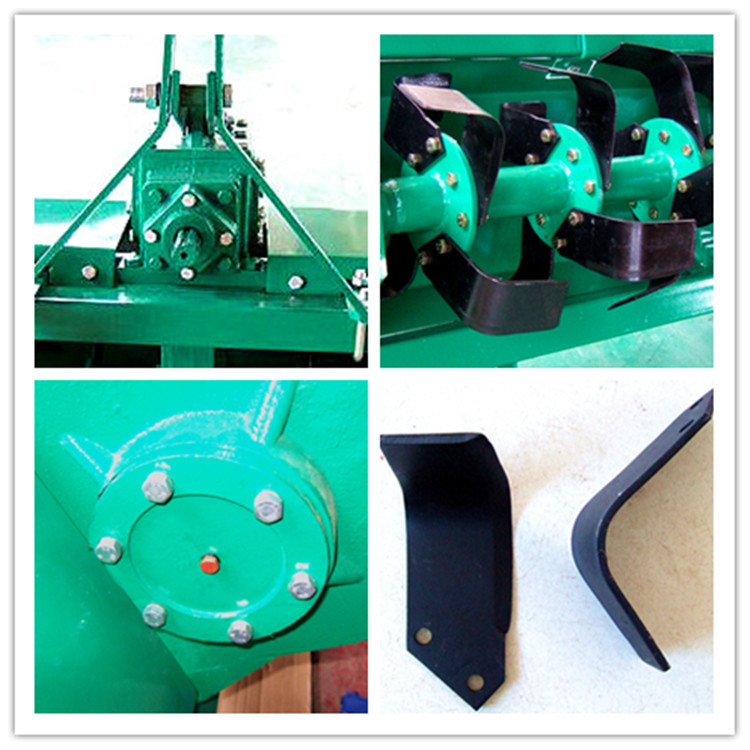

3.There is 24 sgtn-L blades .more wider and more thicker than ordinary blades. material of blades is 60Si2Mn, three time than ordinary blades in Durability.
4.Blade seat is made of Flanges
(thickness of iron plate is 12mm),more firm and durable. Every flange has 4 blades.
5.High quality bearings,oil seal and gears. (bearings are bought from wanxiang group, gears are from famous factory in china, oil seal is imported from Taiwan)
6.More thicker iron plate: side panels thickness: 12mm, tailing plate: 2mm, cover plate:2mm
7.PTO shaft is with clutch to make the rotary tiller safe.![Lower Price for Small Garden Tiller with 24 Stubbling Knives]()
| Model | SGTN-150 |
| Matched power(hp) | 25-30 |
| . Working width (cm) | 1450 |
| NO. of knivf | 24 |
| Type of kinf | L |
| Total weight(kg) | 215 |
| O. D. (mm) | L | 900 |
| W | 1650 |
| H | 1000 |
| working depth (cm) | Dry farmland | 8-14 |
| paddy field | 10-16 |
| Esport axle rotory speed(r/min) | 540 |
| Linkage | (Standard three-point mounted) |
![Lower Price for Small Garden Tiller with 24 Stubbling Knives]()
![Lower Price for Small Garden Tiller with 24 Stubbling Knives]()
---- Packing &shipping ----
![Lower Price for Small Garden Tiller with 24 Stubbling Knives]()
---- Certifications ----
![Lower Price for Small Garden Tiller with 24 Stubbling Knives]()
We also have other models for rotary machine:
SGTN-100 rotary stubbling tiller
SGTN-120 rotary stubbling tiller
SGTN-125 rotary stubbling tiller
SGTN-140 rotary stubbling tiller
SGTN-150 rotary stubbling tiller
SGTN-160rotary stubbling tiller
SGTN-180 rotary stubbling tiller
SGTN-200 rotary stubbling tiller
SGTN-220 rotary stubbling tiller
SGTN-250 rotary stubbling tiller
SGTN-280 rotary stubbling tiller
SGTN-300 rotary stubbling tiller
SGTN-350 rotary stubbling tiller
Model | SGTN-100 | SGTN-115 | SGTN-120 | SGTN-125 | SGTN-140 | SGTN-150 | SGTN-160 | SGTN-180 | SGTN-200 | SGTN-220 | SGTN-250 | SGTN-300 |
| | | | | | | | | | | | | |
(hp)
Matched power | 18-20 | 18-20 | 25 | 25 | 25-30 | 25-30 | 30-40 | 50-55 | 55-75 | 60-80 | 75-90 | 80-90 |
(cm)
.Working width | 95 | 110 | 115 | 120 | 135 | 145 | 155 | 175 | 195 | 215 | 245 | 295 |
NO. of blades | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 32 | 32 | 40 | 40 | 56 |
Type of blade | SGTN-L |
(kg)
Total weight | 200 | 205 | 210 | 215 | 220 | 230 | 250 | 370 | 390 | 410 | 440 | 500 |
(mm)
O.D. | (L) | 850 | 900 | 900 | 900 | 900 | 900 | 900 | 1020 | 1020 | 1020 | 1020 | 1020 |
| | (W) | 1040 | 1190 | 1240 | 1290 | 1440 | 1540 | 1640 | 1860 | 2060 | 2260 | 2560 | 3060 |
| | (H) | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1152 | 1152 | 1152 | 1152 | 1152 |
| (cm) working depth | | 8-14 |
| | | 10-16 |
(r/min)
PTO axle rotary speed | 530-730 | 540-720 |
(r/min)
Knife axle rotary speed | 180-250 | 200-240 |
(km/h)
Walking speed | 1-4 | 2-5 |
(%)
Rate of working depth | ≥85 |
(cm)
Soil level after worked | ≤5 |
(%)
Vegetation covered rate | ≥55 |
(%)
The rate of crushed soil | ≥50 |
| Linkage | (Standard three-point mounted) |
