Weifang Shengxuan Machinery Factory ---- Product Technical Parameter ---- Rotary tiller's function. SGTN series Rotary tiller is mainly used for agricultural stubble and tillage operations. After cultivation, the surface is smooth, soft, fine, and the straw can be crushed into small parts. It is able to meet the intensive agronomic requirements. When working on wet or paddy fields, it can reduce the tractor wheels sinking and slipping lost . In southern China, rotary tiller is used for tillage before seedding winter wheat, rice as well as suburban vegetable land plowing operations, orchard weeding.SGTN-150 rotary tiller features :1.The SGTN-150 rotary tiller adopts middle gear transmission and can be mounted with 25-30hp tractor.

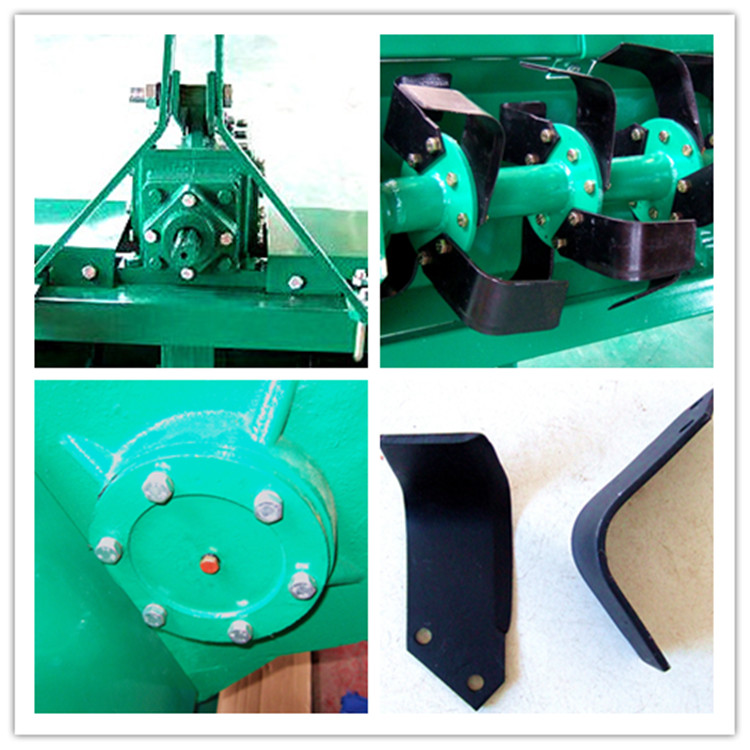

3.There is 36 sgtn-L blades .more wider and more thicker than ordinary blades. material of blades is 60Si2Mn, three time than ordinary blades in Durability.
4.Blade seat is made of Flanges
(thickness of iron plate is 12mm),more firm and durable. Every flange has 6 blades.
5.High quality bearings,oil seal and gears. (bearings are bought from wanxiang group, gears are from famous factory in china, oil seal is imported from Taiwan)
6.More thicker iron plate: side panels thickness: 12mm, tailing plate: 2mm, cover plate:2mm
7.PTO shaft is with clutch to make the rotary tiller safe. ![Wide Blades farm/agricultural Rotary Cultivator for Cultivating and Stubbling]()
Rotary tiller working process:
SGTN series Rotary tiller is a power-driven machinery for cultivating. It is driven by tractor PTO rotating reel roller bladed to work. When working on dry land, tractor PTO drives rotary blades rotating, cutting the soil,. After the cracked clods, uniform coverage level, the ground does not appear furrows. Size and vertical structure are buried trip short edge of the corresponding reduced, and thus a higher productivity. With high Pulverizer performance, the ground is level. It can make full use of the power of tractor.
SGTN-150 rotary tiller specifications:| Model | SGTN-150 |
| Matched power(hp) | 25-30 |
| . Working width (cm) | 145 |
| NO. of knivf | 36 |
| Type of kinf | L |
| Total weight(kg) | 230 |
| O. D. (mm) | L | 900 |
| W | 1350 |
| H | 1000 |
| working depth (cm) | Dry farmland | 8-14 |
| paddy field | 10-16 |
| Esport axle rotory speed(r/min) | 540 |
| Linkage | (Standard three-point mounted) |
![Wide Blades farm/agricultural Rotary Cultivator for Cultivating and Stubbling]()
![Wide Blades farm/agricultural Rotary Cultivator for Cultivating and Stubbling]()
![Wide Blades farm/agricultural Rotary Cultivator for Cultivating and Stubbling]()

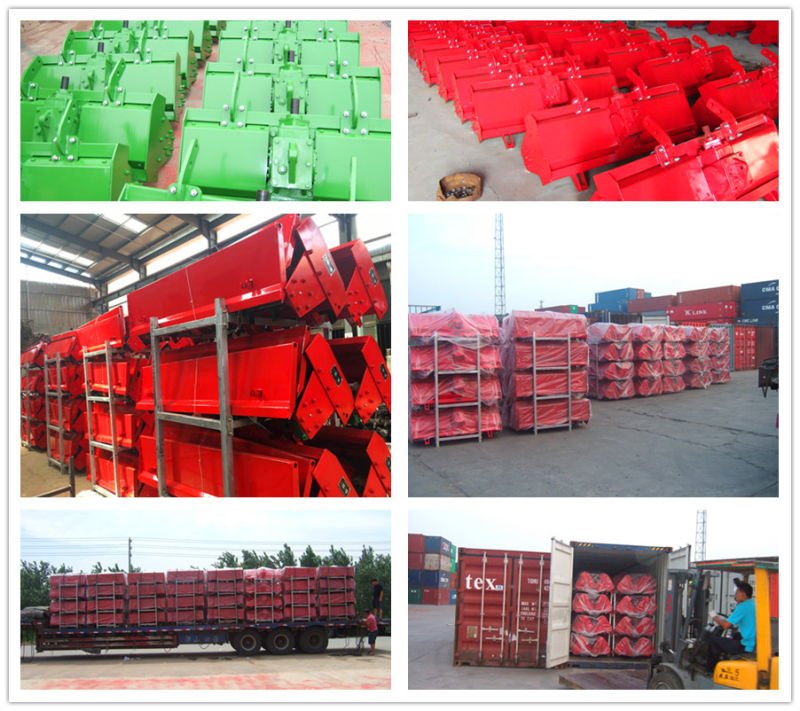

---- Packing &shipping ---- ![Wide Blades farm/agricultural Rotary Cultivator for Cultivating and Stubbling]()

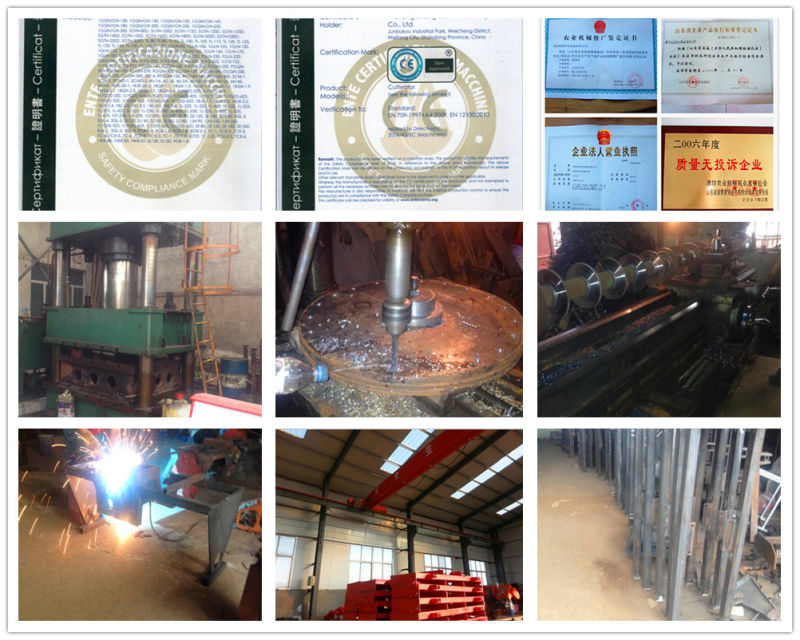

---- Certifications ---- ![Wide Blades farm/agricultural Rotary Cultivator for Cultivating and Stubbling]()
We also have other models:
Model | SGTN-100 | SGTN-115 | SGTN-120 | SGTN-125 | SGTN-140 | SGTN-150 | SGTN-160 | SGTN-180 | SGTN-200 | SGTN-220 | SGTN-250 | SGTN-300 |
| | | | | | | | | | | | | |
(hp)
Matched power | 18-20 | 18-20 | 25 | 25 | 25-30 | 25-30 | 30-40 | 50-55 | 55-75 | 60-80 | 75-90 | 80-90 |
(cm)
.Working width | 95 | 110 | 115 | 120 | 135 | 145 | 155 | 175 | 195 | 215 | 245 | 295 |
NO. of blades | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 32 | 32 | 40 | 40 | 56 |
Type of blade | SGTN-L |
(kg)
Total weight | 200 | 205 | 210 | 215 | 220 | 230 | 250 | 370 | 390 | 410 | 440 | 500 |
(mm)
O.D. | (L) | 850 | 900 | 900 | 900 | 900 | 900 | 900 | 1020 | 1020 | 1020 | 1020 | 1020 |
| | (W) | 1040 | 1190 | 1240 | 1290 | 1440 | 1540 | 1640 | 1860 | 2060 | 2260 | 2560 | 3060 |
| | (H) | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1152 | 1152 | 1152 | 1152 | 1152 |
| (cm) working depth | | 8-14 |
| | | 10-16 |
(r/min)
PTO axle rotary speed | 530-730 | 540-720 |
(r/min)
Knife axle rotary speed | 180-250 | 200-240 |
(km/h)
Walking speed | 1-4 | 2-5 |
(%)
Rate of working depth | ≥85 |
(cm)
Soil level after worked | ≤5 |
(%)
Vegetation covered rate | ≥55 |
(%)
The rate of crushed soil | ≥50 |
| Linkage | (Standard three-point mounted) |
About Our Factory
Established in 1984, Weifang Shengxuan Machinery Co., Ltd. is a professional manufacturer and exporter that is concerned with the design, development and production of farm machinery. We are located in Weifang City, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
We have over 150 employees, with an annual sales figure that exceeds USD 1500,000 and are currently exporting 90% of our products to worldwide countries. Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction.
As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching Italy, Germany, and Turkey.
----Buyer reading---- 1. Trade terms: FOB,CIF,EXW
2. Sample Policy: You can test the quality of our sample firstly before you purchase them in mass quantity.
3. MOQ: 1 set
4. Payment Way: T/T, L/C, Western Union, D/P.
5. Delivery Date: 10-30 days after deposit paid. It depends on your order quantity.
6. Shipping Way: By Sea or By Air.
7. After Service: 12 months guarantee of the main parts, we will send the guarantee parts together with the machine in your next order or we can send them by air express if you need them urgently.
