rotaty stubbling tiller, rotary cultivator,rototiller, rotavator, rotary machine,farm machine, agricultural tiller
Weifang Shengxuan Machinery Factory
---- Product Technical Parameter ----
Rotary tiller's function. SGTN series Rotary tiller is mainly used for agricultural stubble and tillage operations. After cultivation, the surface is smooth, soft, fine, and the straw can be crushed into small parts. It is able to meet the intensive agronomic requirements. When working on wet or paddy fields, it can reduce the tractor wheels sinking and slipping lost . In southern China, rotary tiller is used for tillage before seedding winter wheat, rice as well as suburban vegetable land plowing operations, orchard weeding.SGTN-125 rotary tiller features :1.The SGTN-125 rotary tiller adopts middle gear transmission and can be mounted with 25-30hp tractor.
3.There is 24 sgtn-L blades .more wider and more thicker than ordinary blades. material of blades is 60Si2Mn, three time than ordinary blades in Durability.
4.Blade seat is made of Flanges
(thickness of iron plate is 12mm),more firm and durable. Every flange has 4 blades.
5.High quality bearings,oil seal and gears. (bearings are bought from wanxiang group, gears are from famous factory in china, oil seal is imported from Taiwan)
6.More thicker iron plate: side panels thickness: 12mm, tailing plate: 2mm, cover plate:2mm

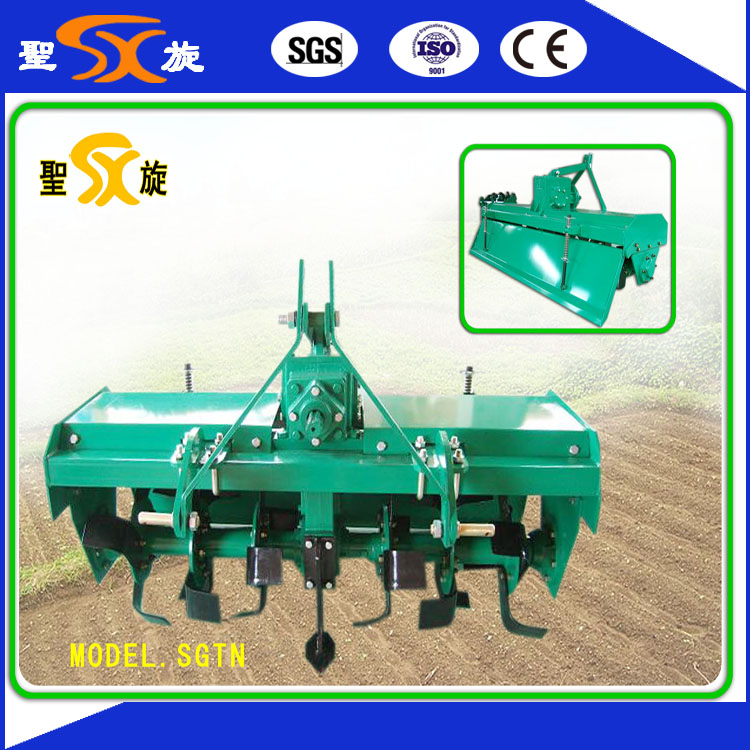

7.PTO shaft is with clutch to make the rotary tiller safe.![Middle Gear Transmission Farm/Agricultural/Rotary Stubbling Tiller with Ce, SGS Certification]()
| Model | SGTN-125 |
| Matched power(hp) | 18-20 |
| . Working width (cm) | 125 |
| NO. of knivf | 24 |
| Type of kinf | L-225 |
| Total weight(kg) | 234 |
| O. D. (mm) | L | 900 |
| W | 1350 |
| H | 1000 |
| working depth (cm) | Dry farmland | 8-14 |
| paddy field | 10-16 |
| Esport axle rotory speed(r/min) | 540 |
| Linkage | (Standard three-point mounted) |

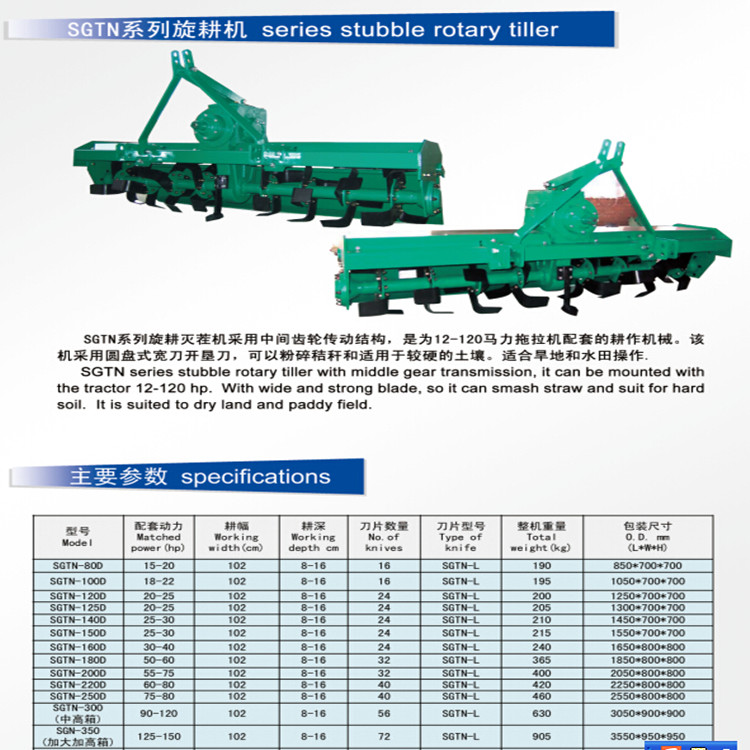

![Middle Gear Transmission Farm/Agricultural/Rotary Stubbling Tiller with Ce, SGS Certification]()

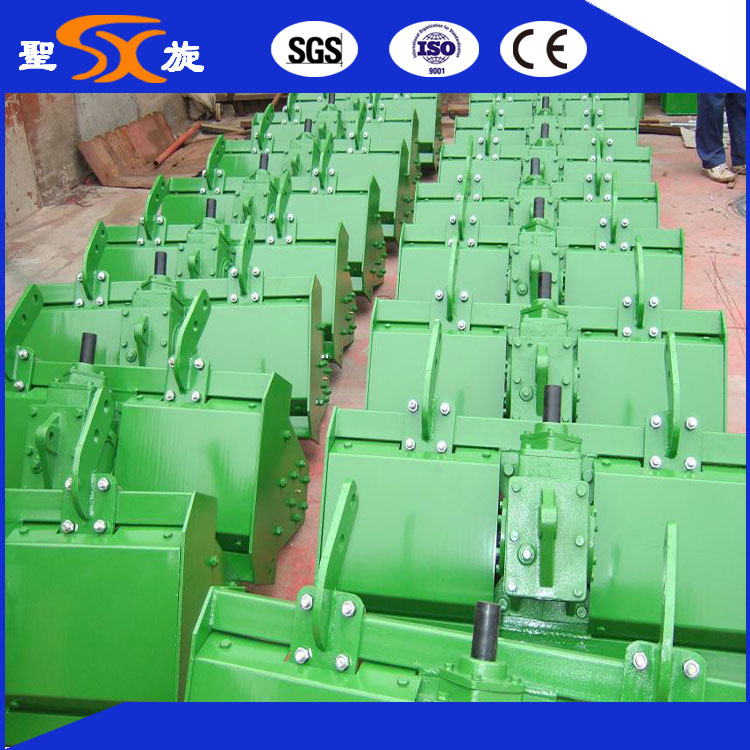

---- Products Show ----
![Middle Gear Transmission Farm/Agricultural/Rotary Stubbling Tiller with Ce, SGS Certification]()
---- Packing &shipping ----
![Middle Gear Transmission Farm/Agricultural/Rotary Stubbling Tiller with Ce, SGS Certification]()
---- Certifications ---- ![Middle Gear Transmission Farm/Agricultural/Rotary Stubbling Tiller with Ce, SGS Certification]()
We also have other models for rotary machine:
SGTN-100 rotary stubbling tiller
SGTN-120 rotary stubbling tiller
SGTN-125 rotary stubbling tiller
SGTN-140 rotary stubbling tiller
SGTN-150 rotary stubbling tiller
SGTN-160rotary stubbling tiller
SGTN-180 rotary stubbling tiller
SGTN-200 rotary stubbling tiller
SGTN-220 rotary stubbling tiller
SGTN-250 rotary stubbling tiller
SGTN-280 rotary stubbling tiller
SGTN-300 rotary stubbling tiller
SGTN-350 rotary stubbling tiller
Model | SGTN-100 | SGTN-115 | SGTN-120 | SGTN-125 | SGTN-140 | SGTN-150 | SGTN-160 | SGTN-180 | SGTN-200 | SGTN-220 | SGTN-250 | SGTN-300 |
| | | | | | | | | | | | | |
(hp)
Matched power | 18-20 | 18-20 | 25 | 25 | 25-30 | 25-30 | 30-40 | 50-55 | 55-75 | 60-80 | 75-90 | 80-90 |
(cm)
.Working width | 95 | 110 | 115 | 120 | 135 | 145 | 155 | 175 | 195 | 215 | 245 | 295 |
NO. of blades | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 32 | 32 | 40 | 40 | 56 |
Type of blade | SGTN-L |
(kg)
Total weight | 200 | 205 | 210 | 215 | 220 | 230 | 250 | 370 | 390 | 410 | 440 | 500 |
(mm)
O.D. | (L) | 850 | 900 | 900 | 900 | 900 | 900 | 900 | 1020 | 1020 | 1020 | 1020 | 1020 |
| | (W) | 1040 | 1190 | 1240 | 1290 | 1440 | 1540 | 1640 | 1860 | 2060 | 2260 | 2560 | 3060 |
| | (H) | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1152 | 1152 | 1152 | 1152 | 1152 |
| (cm) working depth | | 8-14 |
| | | 10-16 |
(r/min)
PTO axle rotary speed | 530-730 | 540-720 |
(r/min)
Knife axle rotary speed | 180-250 | 200-240 |
(km/h)
Walking speed | 1-4 | 2-5 |
(%)
Rate of working depth | ≥85 |
(cm)
Soil level after worked | ≤5 |
(%)
Vegetation covered rate | ≥55 |
(%)
The rate of crushed soil | ≥50 |
| Linkage | (Standard three-point mounted) |
About Our Factory
Established in 1984, Weifang Shengxuan Machinery Co., Ltd. is a professional manufacturer and exporter that is concerned with the design, development and production of farm machinery. We are located in Weifang City, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
We have over 150 employees, with an annual sales figure that exceeds USD 1500,000 and are currently exporting 90% of our products to worldwide countries. Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction.
As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching Italy, Germany, and Turkey.
----Buyer reading----
1. Trade terms: FOB,CIF,EXW2. Sample Policy: You can test the quality of our sample firstly before you purchase them in mass quantity. 3. MOQ: 1 set 4. Payment Way:
