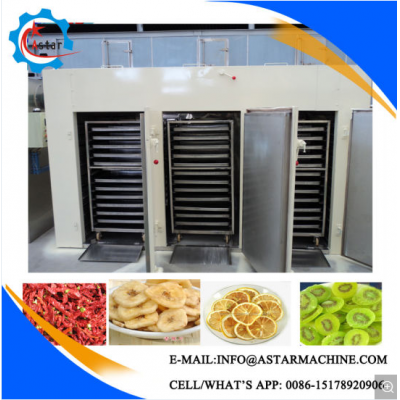

Hot Air Vegetable Food Drying Machine / Fruit Dehydrator/Vegetable Dehydrator
1. Description:
1. CTC series hot air circulating drying oven is made by a low noise, high temperature axial flow fan and automatic temeprature control system.
2. Food dryer/ dehydrator machine
The whole circulation system is fully enclosed to make that the heat efficiency of the drying oven increases from 3-7%of the traditional drying oven to 35-45% of the present one. The highest heat efficiency can reach to 50%.
3. Industry Cabinet Dryer ::
For the heating source, there are many kinds: steam, electrical, far infrared or steam and electrical to be chosen.
The used temperatures to be used: steam heating 50-140°C, Max.150°C.
The moisture while using the electrical or temperature: 50-350°C.
There are the automatic control system and the computer control system for users' selection.
Commonly used steam pressure 0.02-0.08 Mpa(0.2-8kg/cm2)
If using the electrical heating and being type one, the calculation is 15kw, and the practical use is 5-8kw/h.
The special requirements should be indicated at the time of order.
The price for the non-standard oven should be consulted.
The use temperatures more than 140°C and less than 60°C should be indicated at the time of order.
4. Industry Food Dehydrator Machine Usage:
Such as vegetables, fruits,fishes,medicines, Chinese herbs, particles, granules, packing bottle, pigment dyes, sausages, plastic resins, and baking finish etc.
Fruit : apple, pineapple, mango, kiwi, lemon, cherry, berry, gogi, fig etc
Vegetables: carrot, potato, ginger, pepper, tomato, cabbage, chilli, garlic, onion, mushroom etc
Meat : fish, seafood, pork, lamb, chicken, etc
Herbs: Leaves ,moringa leaf ,tea
Nuts: cashew nuts, walnuts, peanuts,
Beans: Cocoa Beans, pea,
Flowers : Rose etc
Plants and so on
2. Hot Air Food Dryer Machine Specification:
| Model | CT-C-O | CT-C-IA | CT-C-I | CT-C-II | CT-C-III | CT-C-IV |
| Capacity of each batch | 25kg | 60kg | 120kg | 240kg | 360kg | 480kg |
| Power of Fan | 0.45kw | 0.45kw | 0.45kw | 0.9kw | 1.35kw | 1.8kw |
| Consumption of steam | 5kg/h | 10kg/h | 18kg/h | 36kg/h | 54kg/h | 72kg/h |
| Total Power | 9kw/h | 9kw/h | 15kw/h | 30kw/h | 45kw/h | 60kw/h |
| Thermal area | 5m2 | 10m2 | 20m2 | 40m2 | 80m2 | 100m2 |
| Air volume | 3450m3/h | 3450m3/h | 3450m3/h | 6900m3/h | 10350m3/h | 13800m3/h |
| Temperature used | ±2°C | ±2°C | ±2°C | ±2°C | ±2°C | ±2°C |
| Quantity of trays(pcs) | 16 | 24 | 48 | 96 | 144 | 192 |
| The size of tray(mm) | 460x640x45 mm | |||||
| Outside dimension (mm) | 1850x1000x2044 | 1700x1200x2000 | 2600x1200x2000 | 2600x2200x2000 | 3600x2200x2000 | 4760x2200x2290 |
| Inside dimension(mm) | 1050x800x1500 | 900x1000x1500 | 1800x1000x1500 | 1800x2000x1500 | 2700x2000x1500 | 3600x2000x1500 |
| Baking vehicles | 0 | 1 | 2 | 4 | 6 | 8 |
3. Hot Air Food Dryer Machine More Photos :
Packing In the Factory
Spare Parts Of Food Dryer Machine
Final Dried Product Photo As Below :
