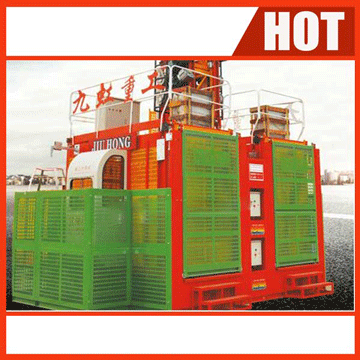

2013 Hot! Ce Iso Authorized Sc200 Single Cage 2t Construction Building Elevator,Construction Lifter,Buck Hoist, High Quality Construction Building Elevator,Construction Lifter,Buck Hoist,
1,Quick Details
Condition: New
Place of Origin: Shandong, China (Mainland), SHANDONG PROVINCE
Brand Name: JIUHONG, JIUHONG
Model Number: SC200/200 Construction Elevator,Construction Hoist, SC200/200
Usage: Construction Hoist, For High Building Construction
Power Source: Electric
Sling Type: Rack and Pinion
Maximum Lifting Weight: 4t, 2 ton per cage
Maximum Lifting Height: 150m
Lift Speed: 36m/min
Certification: ISO CE
Warranty: 1 Year
After-sales Service Provided: Engineers available to service machinery overseas
Type: SC200/200 Construction Elevator,Construction Hoist
Power: 11*3*2kw
Lift Drive / Actuation: Electric Motor
Lift Mechanism: Rack and Pinion
2,
| Packaging Details: | Rack and pinion building construction hoist, the electric control parts and smaller parts are packed in wooden case, others are nude package in 20' or 40' containers. |
|---|---|
| Delivery Detail: | 10-15 days after deposit,Construction Elevator,Constru |
3,1mast 2. powered drive unit, electrical unit 3. drive unit 4. limit switch 5. mounting plate of anti-fall safety device 6. anti-fall safety device 7. limiting device 8. ladder 9. cage 10. electric control box 11. base frame guardrail 12. tie-in 13. cable rack 14. electric boom, cab 15. lower stop block
Name | Unit | SC100 | SC100/100 | SC200 | SC200/200 |
Rating loading capacity | Kg | 1000 | 2×1000 | 2000 | 2×2000 |
Passenger number | Person | 12 | 2×12 | 16 | 2×16 |
Rating rising rate | M/min | 36 | 36 | 36 | 36 |
Max. promoting height | M | 200 | 200 | 200 | 200 |
Motor power | KW | 2×11 | 2×2×11 | 3×11 | 2×3×11 |
Cage size | M | 3*1.5*2.5 | 3*1.5*2.5 | 3*1.5*2.5 | 3*1.5*2.5 |
650 mast section weight | Kg | 128 | 156 | 128 | 156 |
650 mast section length | M | 650×650×1508 | 650×650×1508 | 650×650×1508 | 650×650×1508 |
