Place of Origin: Shandong, China (Mainland)
Brand Name: JIUHONG
Model Number: ZLP630
Rated Loading Capacity: 630kg
Colour: Red,Can be Customized
Motor Power: 1.5KW*2
Platform Dimension: 6000*0.72*1300
Voltage: 220V/380V/415V-3Phase/50hz/60HZ
Steel Rope Diamter: 8.3mm
Lifting Height: 100m-120m
Model: ZLP630 Suspended Working Platform
Locking Cable Angel: 3-8°
Overhang Length of Front Beam: 1.3-1.5m

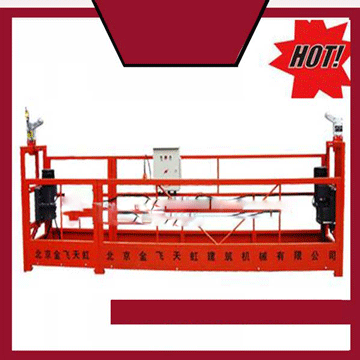

2,Pictures show
,
| Packaging Details: | Steel Shelf Package,Water Proof. |
|---|---|
| Delivery Detail: | 7-10 Days After received the advance deposit |
4,STANDARD PARAMETER FOR SUSPENDED PLATFORM
Model | ZLP1000 | ZLP800 | ZLP630 | ZLP500 | ZLP250 |
Rated Load (kg) | 1000 | 800 | 630 | 500 | 250 |
Lifting Speed (m/ min) | 8.3+0.5 | 8.3+0.5 | 8.3+0.5 | 8.3+0.5 | 8.3+0.5 |
Platform Length (m) | 7.5 | 7.5 | 6 | 5 | 2.5 |
Standard lifting height (m) | 100 | 100 | 100 | 100 | 100 |
Steel rope | 8.6 | 9.1 | 8.3 | 8.3 | 8.3 |
Rated power | 2.2x2 | 1.8x2 | 1.5x2 | 1.1x2 | 1.1x1 |
Voltage | Standard: 380V/50HZ/3Phase; Customized: 110~440V | ||||
Frequency | 50 | 50 | 50 | 50 | 50 |
