Extremely low ESR
Low leakage current
High frequency capacitance retention
Non-ignition failure mode
Voltage rating of 2.5V - 50V
Operating temperature rang of -55℃ to +125℃
Moisture Sensitivity Level 3
RoHS Compliant and lead-free terminations
Typical applications include decoupling and filtering in industrial and automotive end applications such as DC/DC converters, portable electronics, telecommunications, and control units.
CA55 | D | 35V | 22µF | M |
Series
| Case size
| Rated voltage
| Capacitance
| Capacitance tolerance
|

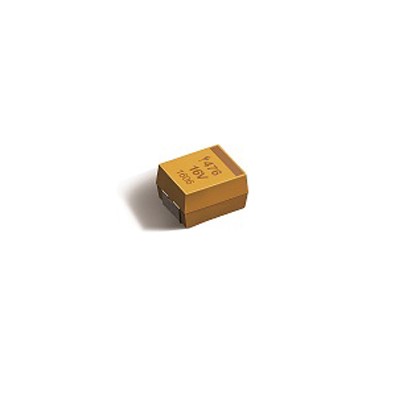

Polymer Tantalum Solid Electrolytic Chip Capacitors | A B C D D1 E F
| 2.5V 4V 6.3V 10V 16V 20V 25V 35V 50V | Refer to Capacitance and Rated Voltage Range Table
| M=±20% |
4.Dimensions （size:mm）Case Size | L | W | H | S | W1 |
A | 3.20 | 1.60 | 1.60 | 1.20 | 0.80 |
B | 3.50 | 2.80 | 1.90 | 2.20 | 0.80 |
Case Size | L | W | H | S | W1 |
A | 3.20 | 1.60 | 1.60 | 1.20 | 0.80 |
B | 3.50 | 2.80 | 1.90 | 2.20 | 0.80 |
Rated Cap(µF) ) | Max Cap Deviation(%)
| Max DF(%)
| Max DCL(µA)
| |||||||
-55℃ | 85℃ | 125℃ | -55℃ | 25℃ | 85℃ | 125℃ | 25℃ | 85℃ | 125℃ | |
1-68 | -25 | +20 | +30 | ≤10 | ≤6 | ≤10 | for ≤20V DC rating，I0≤0.1CU or 5µA whichever is greater for ≥25V DC rating，I0≤0.01CU or 0.5µA whichever is greater | 10 times of I0 | 12.5 times of I0 | |
100-470 | 14 | 10 | 14 | |||||||
680-1000 | 18 | 14 | 18 | |||||||
1500-2200 | ||||||||||
3300-4700 | ||||||||||
