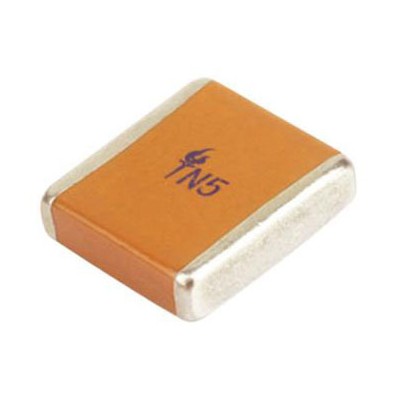

Capacitance ranging from 100pF to 1.5μF
Voltage ratings of 250V – 3kV
Operating temperature rang of -55℃ to +125℃
Lead-free terminations, RoHS and Reach Compliant
Typical applications include DC/DC, high voltage coupling/DC blocking, Back-lighting inverters, LAN/WLAN interface, power supplies.
CT48 | -1206 | -X7R | -1kV | -1000pF | -K | -N | -T |
Series
| Case size
| Dielectric
| Rated voltage
| Capacitance
| Capacitance tolerance
| Termination Finish
| Packaging |
Class I Ceramic | 0603 0805 1206 1210 1808 1812 2220 2225 | C0G | 250V 500V 630V 1kV 2kV 3kV | Refer to Capacitance and Rated Voltage Range | B=±0.10pF C=±0.25pF D=±0.5pF F=±1% G=±2% J=±5% | N=100% Sn | T=7” Reel |
Appearance | Size Code | 0603 | 0805 | 1206 | 1210 | 1808 |
| L | 1.6±0.2 | 2±0.3 | 3.2±0.3 | 3.2±0.4 | 4.5±0.4 |
W | 0.8±0.2 | 1.25±0.2 | 1.6±0.3 | 2.5±0.3 | 2±0.3 | |
Tmax | 1 | 1..45 | 1.9 | 2.8 | 2.3 | |
t | 0.35±0.25 | 0.5±0.25 | 0.5±0.35 | 0.6±0.3 | 0.64±0.38 |
Item | Specification Limits | Measuring Conditions |
Operating Temperature Range | -55℃ to +125℃ | — |
Capacitance | Within specified tolerance | Freq.: 1.0 kHz±10% Voltage: 1.0Vrms±0.2V |
Dissipation Factor | tgδ≤2.5% | |
Insulation Resistance | 10000MΩ or 500MΩ•μF whichever is less | Voltage shall be applied with follow conditions for 60±5secs : UR =250V 250V UR≥500V 500V Charging and discharging current shall be 50mA or less. |
Dielectric Strength | No breakdown or visual defects | Voltage shall be applied with follow conditions for 5 seconds: UR =250V 2.0UR UR =500V 1.5UR UR≥1000V 1.2UR Charging and discharging current shall be 50mA or less. |
Temperature characteristics | ±15% | Capacitance change with reference to +25°C and 0 Vdc applied. |
6.Our advantage
（Quality）
Torch brand products are extensively applied in high-end fields such as aviation, spaceflight, ship, communication, electric power, rail transit and new energy for their leading technology and reliable quality .
Our company has passed several certifications of management system,formed a set of regulation documents.Such as
ISO 9001
ISO 14001:2004
GB/T28001-2001
SA8000:2008SA8000
OHSAS18001
Reach，ROHS
In 2016 Torch’s multi-layer chip ceramic capacitor made new contributions to the key spaceflight missions of China such as the successful first flight of Long-March carrier rocket,the rendezvous and docking between shenzhou-11 and tiangong-2 ,and the first flight of long march-5.
（Manufacturer）
Our company has mastered a series of core technologies ranging from development of material formula product design to production process.We have more than 30 years experience in making capacitor.
（Customized）
Some of our products accept customization.Contact us to know more
（Service）
We have a professional after-sale service team.
