Round Baler For Tractors
Round Baler For Tractors
  • >= 1  Plant US $12,000.000
Supply Ability:
100 Plant/Plants per 0
Port:
Qingdao port
Your Email:
Quantity:
Plant
  • Product Detils
  • Company Profile
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
Model Number:
Product Description

Product Description

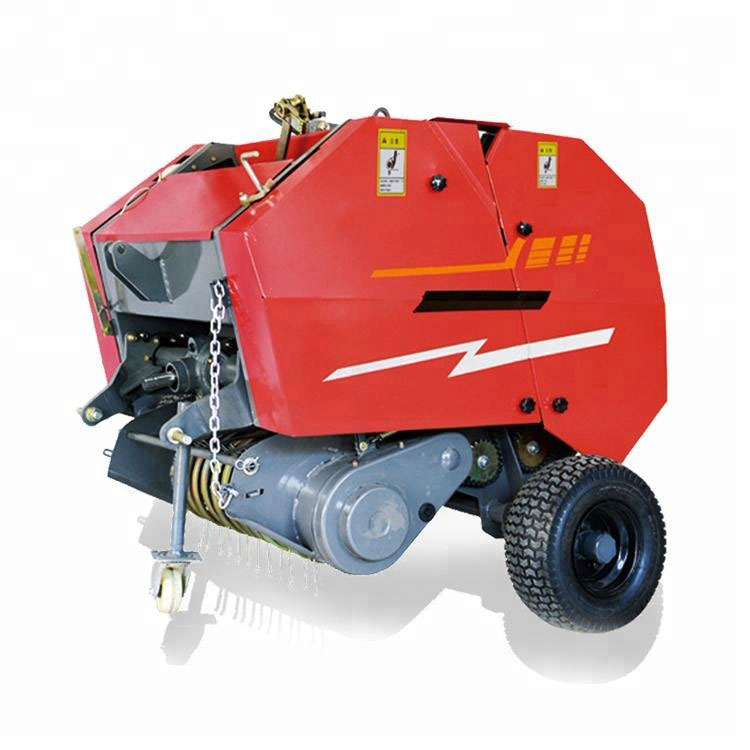

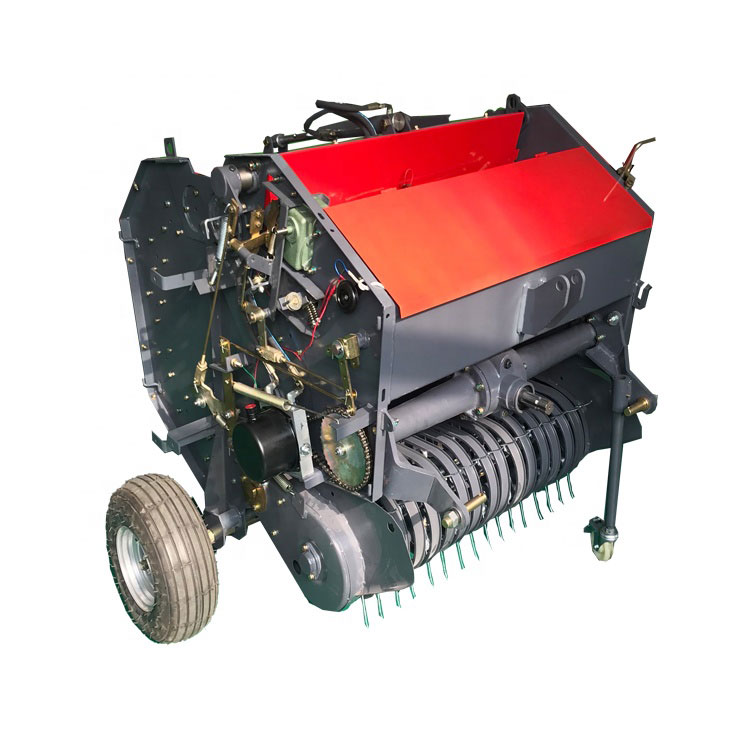

Round Baler For Tractors


The application of hay baler machine

The hay baler machine/straw bundling machine is widely used in agriculture and animal husbandry. It can collect and bundle green grass, straw, wheat stalk, corn stalk, wheat/ rice straw, grass, corn straw, pasture straw bale, etc. After baled by the machine, the bundle is very convenient for transportation, reserve and deep processing. Its compact design enables the cut grass to be collected and baled on any type of ground, also on hills, in mountain areas and on steep slopes.  It is highly efficient machine because it enable bales to be prepared which are easy to handle and with an hourly working speed of 2-5km. So, the hay straw baler machine is very welcomed by domestic and overseas farmers.

Type:Round Baler

Operating Speed:2-5km/h

Condition:New

Place of Origin:China

Application:Bale Hay Rice Wheat Straw

Dimension(L*W*H):115*130*120cm

Weight:440 kg

Certification:CE, ISO

Warranty:1 year

After-sales Service Provided:Engineers available to service machinery overseas

Product name:Round Baler For Tractors

Color:Customized

Bale size:50*70 CM

Pickup width:70cm

Bale weight:15-25kg

Match power:25-50 HP

Capacity:80-120 Bales/h


Specifications of hay baler machine

870F/1070F/1090F series models use Forced Feeding technology, can prevent Jam problem when pickup Maize straw.

Model

9YKD-50

9YKD-60

9YKD-70

9YKD-90

Model Number

850

870/870F

1070/1070F

1090/1090F

Bale size(dia.*width)

50*70cm

60*70cm

62*95cm

82*95cm

Machine Dimension (L*W*H)

115*130*120cm

131*146*138cm

131*167*156cm

157*167*170cm

Bale weight

15-20kg

20-30kg

30kg

50kg

Pickup width

700mm

800mm

950mm

950mm

Drum speed

200r/m

200r/m

200r/m

200r/m

Math power

25-50hp

25-50hp

25-50hp

25-50hp

PTO speed

540r/m

540r/m

540r/m

540r/m

Efficiency

2-5km/h

2-5km/h

3-8km/h

3-8km/h

Productivity

1500-3000Kg/h

1500-3000Kg/h

1950-3900Kg/h

2500-5100Kg/h

Density

≥115Kg/m3

≥115Kg/m3

≥115Kg/m3

≥115Kg/m3

Force Feeding

/

870F have

1070F have

1090F have

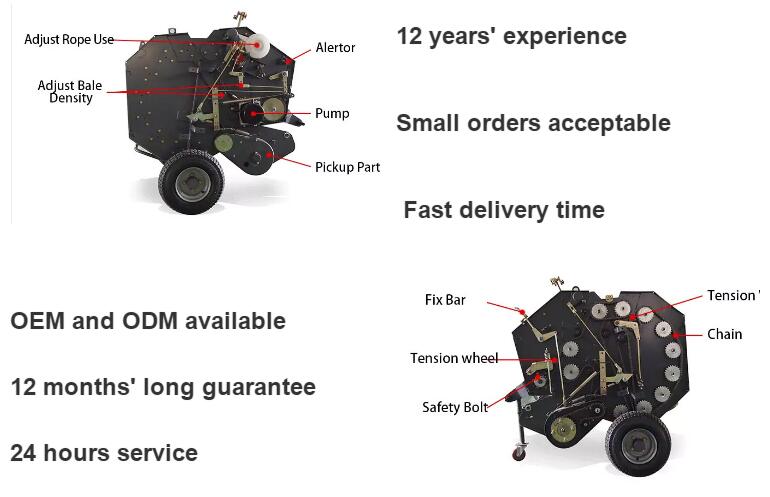

Main parts of the hay baler machine

The hay baler machine is composed of pick-up part, compress rolls, sprocket transmission mechanism, a rope box, a lead rope rod, an early warning device, hydraulic control mechanism and three point linkage etc. It can move and work with a 25-50 HP tractor by PTO shaft.

Automatic operation:  lead rope when bundling, pick up wheat straw, bundling, cut twine automatically.

The bundled bales are firm and not messy, easy to transport and store.

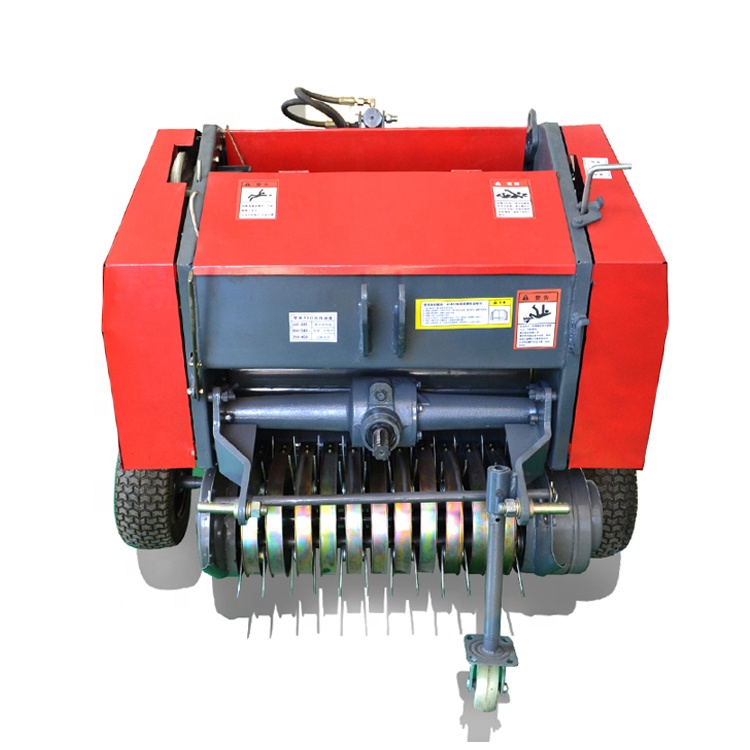

Detailed Images




Main Features

1. Matching 25-50hp tractor.

2. PTO transmission, 3 point hitch.

3. Bale length and density adjustable.

4. Natural hemp twine,harmless to animals.

5. Auto release system by rope or button.

Detailed Images


Advantages

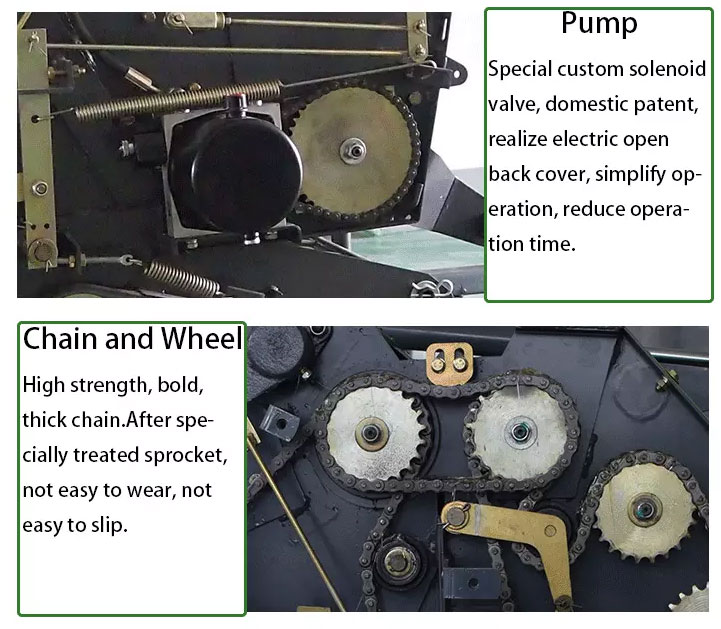

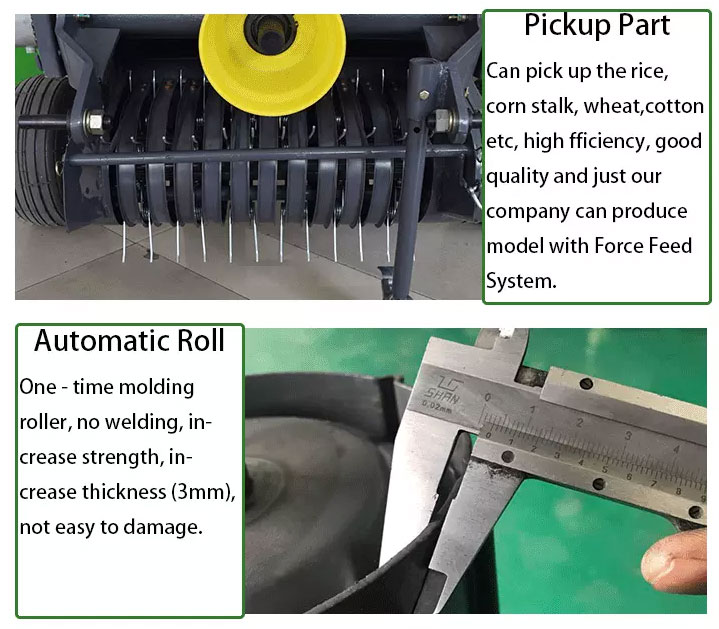

Details of mini round baler parts

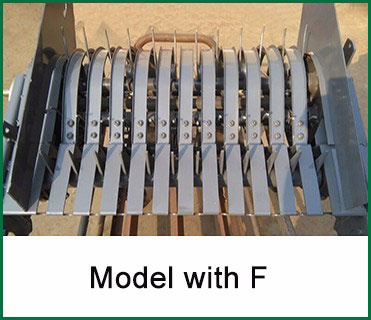

Force Feeding System & Normal

For corn stalks, it is usually tough and long, the normal models are easy to block. Force feeding models, can solve this problem better.

1542425020653257.jpg  1542425202903679.jpg

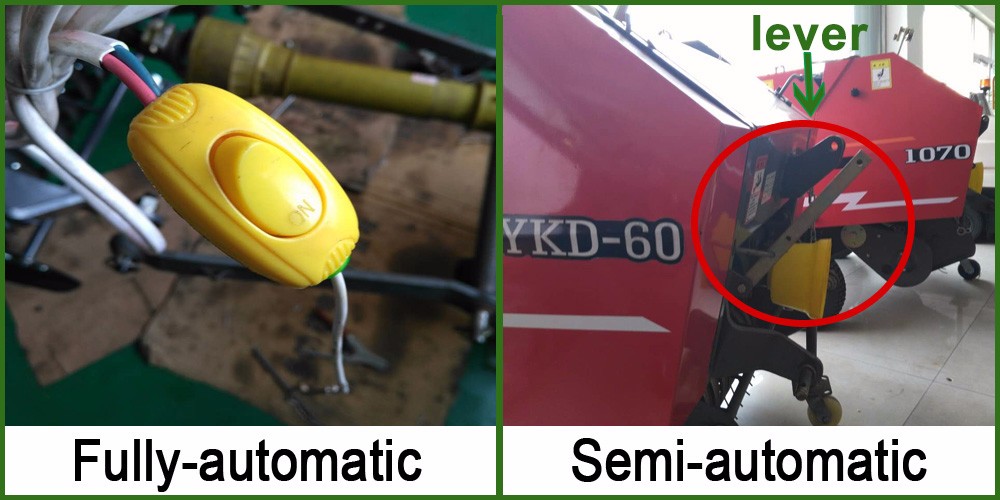

Full automatic & Semi-automatic

When the chamber is full, the semi-automatic model need manual level to open the rear cover. Fully-automatic model just need press the button. Save the manpower and improve working efficiency.


Our Service


About Us

WEIFANG BINHAI GROUP WORK WIN CO.,LTD. is a leading manufacturer and provider of total integrated supply chain solutions. We offer the best agricultural equipments, garden equipments, and accessories.

Our main product lines: tractor series, agricultural cultivating machinery series,spraying series,harvesting machinery series,post-processing machinery series,casting and forgings series. Our farm implements could match with domestic tractor (FOTON, YTO), and foreign famous brand tractor (JOHN DEERE, NEW HOLLAND, KUBOTA etc.)
We have a multilingual team, and many big branch factories. A regional market presence-including southeast Asia, Indonesia, Russia, Spain, Chile, Brasil, Australia etc.
Group Work Win strives to build a long term relationships by providing our customers with continuous and reactive support. We aim to supply better quality products and after-sales service.

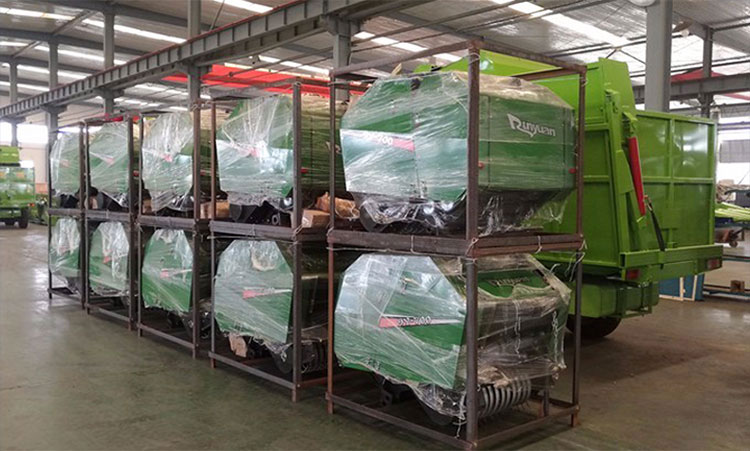

Package & Delivery

Package Mode: iron crate or iron frame or customized

Delivery: 15-25 working days after payment


FAQ

Q1: How about your company?
A1: We are a leading manufacturer and provider of total integrated supply chain solutions for agricultural machinery.
Q2: What's "RBYK0850/RBYK0870" mean?
A2: "RB" -------- "RB" is "Round Baler".
"YK" -------- "round baler" in Chinese is "Yuan Kun".
"08" -------- Acctually, it should be "80", picking up width 80cm.
"50" --------- Diameter of bale is 50cm.
"70" --------- Exactly, the diameter of bale is 61cm.
Q3: What is the delivery time?
A3: 15-20 working days after payment.
Q4: About the package?
A4: Iron frame or iron crate.
Q5: What is the MOQ?
A5: Normally the MOQ is one set. There are some exceptions to this requirement because of the type of machines.
Q6: Can I put my brand name on your agricultural machines instead of your brand name?
A6: Yes. We could do OEM/OBM.
Q7: What about the payment terms?
A7: T/T. We also can accept other payment terms
Q8: Can we mix different models together?
A8: Sure. We can offer different agricultural equipments, you could mix different products or models in 20FT or 40FT container but in order to make the best use of container room, usually we advise you to check the size of the machines.
