Description
Big Blue Polyester Pleated Cartridges are made of high quality polyester filter media and designed for general water filtration purposes, have low pressure drop and high flow capacity. Big Blue polyester pleated cartridges offer high retention efficiency.
Polyester filter media of big blue polyester cartridges, central PP corn and plastisol end caps as a whole bonding together, welded to ensure no bypass. Big Blue polyester filters are washable and reusable commodiously. Numerous pleated counts enlarge surface area, durable and improving filtration efficiency.
Feature
1. Pleated design increases surface area and maximizes dirt holding capacity
2. Big Blue polyester pleated filters are low pressure drop and high flow rate
3. Polyester filters are washable and reusable, economically price and good filtration efficiency
4. High quality polyester filter media and chemical resistant, good for for general water filtration
5. Big Blue polyester pleated cartridges are Easy to install, saving maintenance and replacement cost
Applications
1. PCW
2. Pre RO/DI
3. Electronics
4. Food & Beverage
5. Industrial Water & Plating
Specification
| Filter Media | Polyester (PET) |
| Length | 9.8", 10", 20", 30", 40" |
| Outside Diameter | 4.5" |
| Inside Diameter | 1.1" (28mm) |
| Filtration Rating | 1μm, 5μm, 10μm, 20μm, 30μm, 50μm, 100μm |
| Core | Polypropylene |
| Outer Netting | Polypropylene |
| End Caps/Gaskets | Plastisol/Polyurethane |
| End Cap Type | Double Open End (DOE) |
Performance
Operation Data for Big Blue Polyester Pleated Cartridges
| Maximum Operating Temperature | 75℃(167℉) |
| Max. Differential Pressure | 4.8 bar at 20℃ (70 psi at 68℉) |
| 3.4 bar at 50℃ (50 psi at 122℉) | |
| Maximum reverse pressure | 40 psid @ 70°F (2.8 bar @ 21°C) |
| Recommended Change Out Differential Pressure | 2.4 bar (35 psid) |

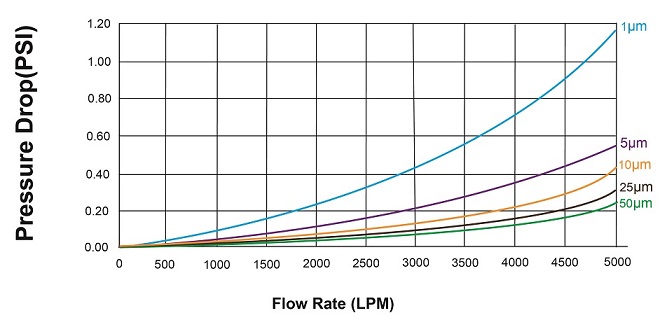

Pressure Drop vs Flow Rate for 10" Big Blue Pleated Cartridge
Tech Support

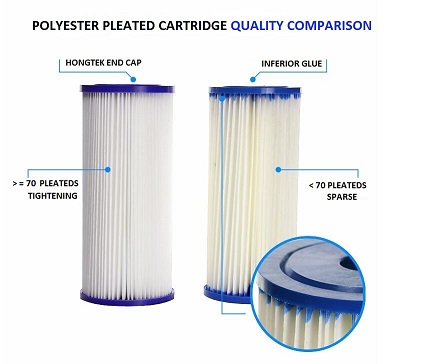

● Big Blue polyester pleated filters are tightening pleated with larger filtration area, others are sparse pleated counts with less surface area
● Hongtek end cap is made of high quality Polyurethane, smooth surface is good for sealing, low quality end caps are made of inferior glue
● Big Blue polyester pleated cartridges have advanced outer netting to strengthen the whole construction, others don't make good outer netting
● The Pleated counts of Hongtek big blue polyester pleated cartridges is equal or greater than 70, low quality made less than 70 pleated counts
Oder Information
| BPC | Length | Micron Rating | Outside |
BPC Series Big Blue Polyester Pleated Cartridges | 9.8 = 9.8" | 1 = 1μm | W = With PP Netting |
| 10 = 10" | 5 = 5μm | ||
| 20 = 20" | 10 = 10μm | ||
| 30 = 30" | 20 = 20μm | ||
| 30 = 30μm | O = Without Netting | ||
| 40 =40" | 50 = 50μm | ||
| 100 = 100μm |
For Example:
BPC-10-1-W
BPC Series Big Blue Polyester Pleated Cartridges - 10" - 1μm - With PP Netting
