Description

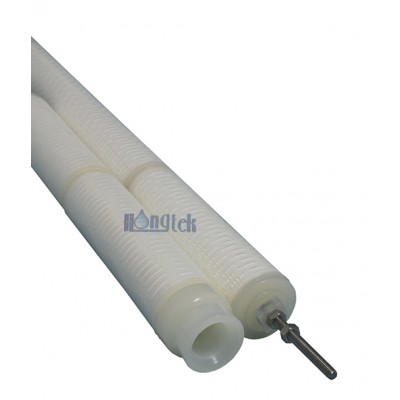

Backwashable PP Pleated Cartridges are mainly designed for power plant condensed water filtration. PP Filter media of backwashable pleated cartridges are available in absolute ratings ranging from 1 to over 100 microns to meet the removal requirements of each individual condensate system. Like all the condensate filter cartridges from Hongtek, a variety of end fittings can be selected to retrofit the elements in existing power plant condensate filter systems.
Feature
1. High surface area of superior pleated media, high dirt holding capacity
2. Wide range of chemical compatibility, long service life and economic cost
3. Less damage from iron and copper to the boiler and turbine of condensed system
4. Backwashable cartridges absolute micron rating, removal efficiency rated at 99.9%
5. Backwashable PP pleated cartridges designed for power plant condensed water filtration
6. Backwashable pleated cartridges can be backwashed to prolong life and easy to change out
Applications
1. Electronics
2. Boiler Water
3. Cooling Water
4. Pre RO Filtration
5. Sea Water Desalination
6. Condensed Water Filtration
7. Power Plant Water Treatment
Specification
| Filter Media | Polypropylene |
| Length | 60"(1524mm), 70"(1778mm) |
| Outside Diameter | 2.75"(70mm) |
| Filtration Rating | 1μm, 3μm, 5μm, 10μm, 20μm, 50μm, 100μm |
| Core | Polypropylene |
| Support/Drainage | Polypropylene |
| Gasket/O-ring | Silicone, EPDM, Viton, NBR |
| End Cap/Cage | Polypropylene |
| End Cap Type | DOE, 222/Flat, 222/Fin, 226/Flat, 226/Fin, 215/Flat, 215/Fin |
Feature
● High surface area of superior pleated media, high dirt holding capacity
● Wide range of chemical compatibility, long service life and economical cost
● Less damage from iron and copper to the boiler and turbine of condensed system
● Backwashable cartridges Absolute micron rating, removal efficiency rated at 99.9%
● Backwashable PP pleated cartridges designed for power plant condensed water filtration
● Backwashable pleated cartridges Can be backwashed to prolong life and easy to change out
Application
| Electronics | Pre RO Filtration | Petrochemical Processes |
| Boiler Water | Plating Solutions | Condensed Water Filtration |
| Cooling Water | Sea Water Desalination | Power Plant Water Treatment |
Performance
| Maximum Operating Temperature | 80℃(176℉) |
| Max. Differential Pressure | 4.0 bar at 20℃ (58 psi at 68℉) |
| 2.0 bar at 60℃ (29 psi at 140℉) | |
| 1.4 bar at 80℃ (20 psi at 176℉) | |
| Maximum reverse pressure | 1.0 bar at 80℃ (14 psi at 176℉) |
| Recommended Change Out Differential Pressure | 2.0 bar (29 psi) |
Tech Support

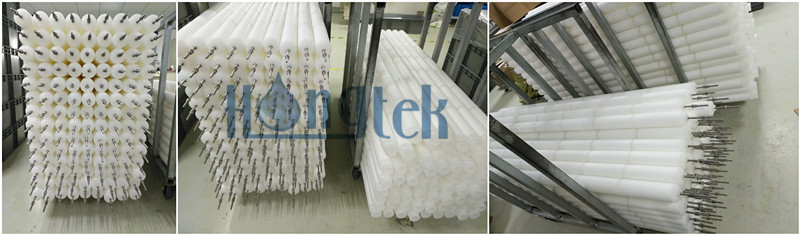

Display of Backwashable PP Pleated Cartridges
● Backwashable PP pleated cartridges are easy to maintenance and lower change out costs
● High surface area of superior pleated media, high dirt holding capacity, removal efficiency rated at 99.9%
● A variety of end fittings can be selected to retrofit the elements in existing power plant condensate filter systems
● 60 inchs & 70 inchs backwashable PP Pleated Cartridges are mainly designed for power plant condensed water filtration
Oder Information
| BCF | Length | Micron Rating | Gasket/O-ring | End Cap |
BCF Series Backwashable PP Pleated Cartridges | 60 = 60" | 1 = 1μm | S = Silicone | DOE = Flat Gaskets Double Open End |
| 3 = 3μm | 2E = 2-222 O-ring with Flat End | |||
| 5 = 5μm | E = EPDM | 6E = 2-226 O-ring with Flat End | ||
| 10 = 10μm | 2F = 2-222 O-ring with Fin | |||
| 70 = 70" | 20 = 20μm | N = NBR | 6F = 2-226 O-ring with Fin | |
50 = 50μm | ES = Extended PP & S.S. Thread Adapter | |||
100 = 100μm | V = Viton |
For Example:
BCF-60-5-S-ES
BCF Series Backwashable PP Pleated Cartridges - 60" - 5μm - Silicone - Extended PP & S.S. Thread Adapter
