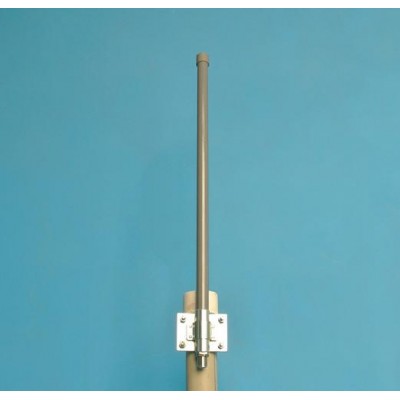

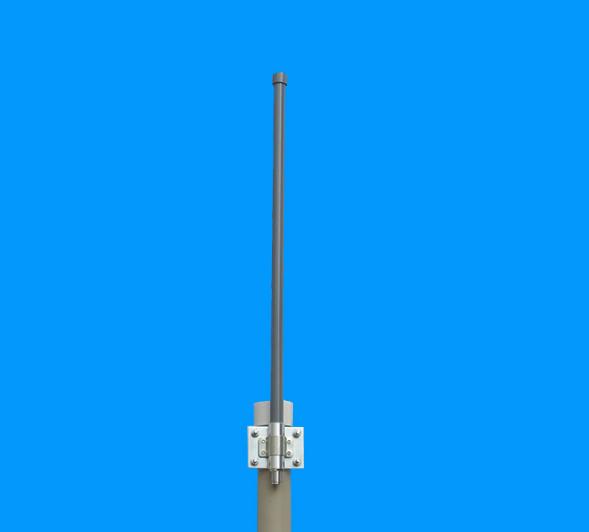

AMEISON 2300-2700mhz 11dbi Omnidirectional fiberglass Antenna high gain 4g lte omni antenna
Feature：
Exquisite appearance
Good impact resistance，
waterproofing and anticorrosion ability
Full day working
Optimized dimension
low standing wave，strong anti-interference ability
Application：
2.4G/Wifi/Wlan/4g/LTE system
Point-to-multipoint system
AMXF-2327-11 Electrical Specifications | |
Frequency range（MHz） | 2300～2700 |
Bandwidth（MHz） | 400 |
Gain（dBi） | 11 |
Half-power beam width（°） | H:360 V:7 |
VSWR | ≤1.5 |
Input Impedance（Ω） | 50 |
Polarization | Vertical |
Maximum input power（W） | 100 |
Lightning protection | DC Ground |
Input connector type | N Female or Requested |
Mechanical Specifications | |
Dimensions（mm） | Φ20*1200 |
Antenna weight（kg） | 0.53 |
Operating temperature（°c） | -40～60 |
Rated Wind Velocity（m/s） | 60 |
Radome color | Gray |
Mounting way | Pole-holding |
Mounting hardware（mm） | ￠35-￠50 |
