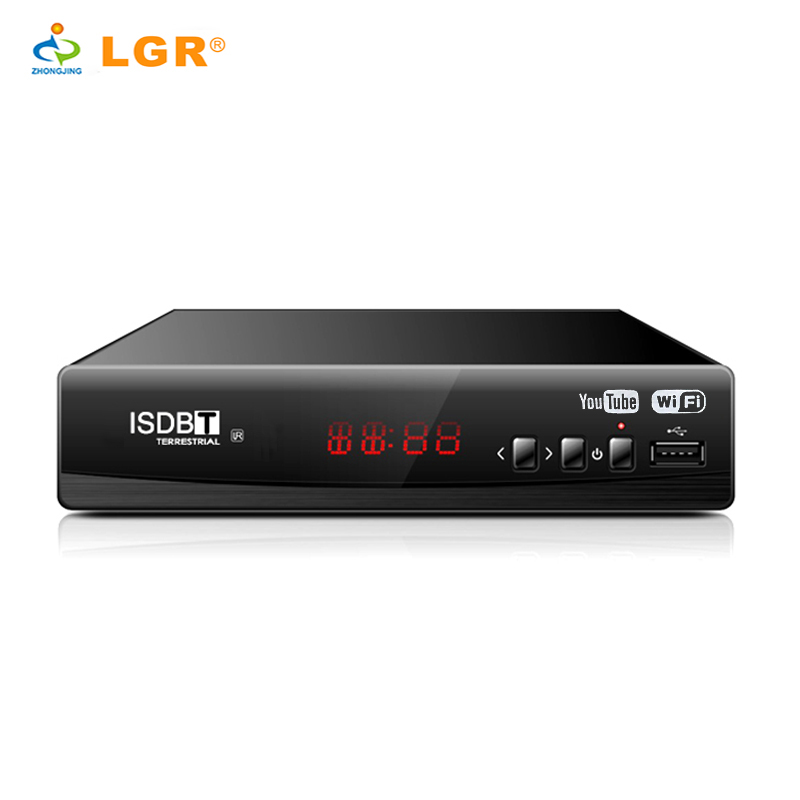

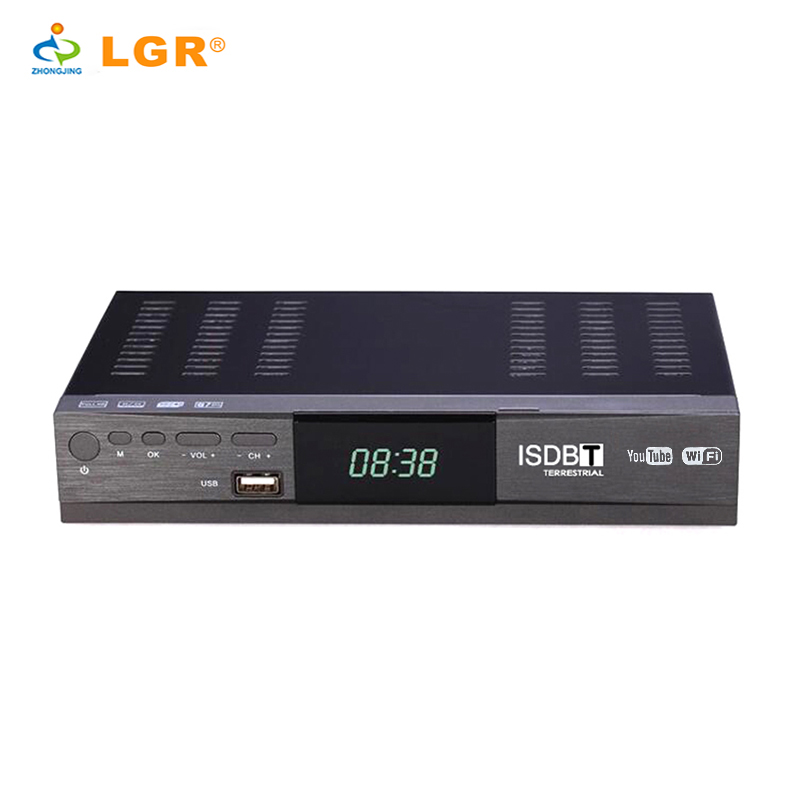

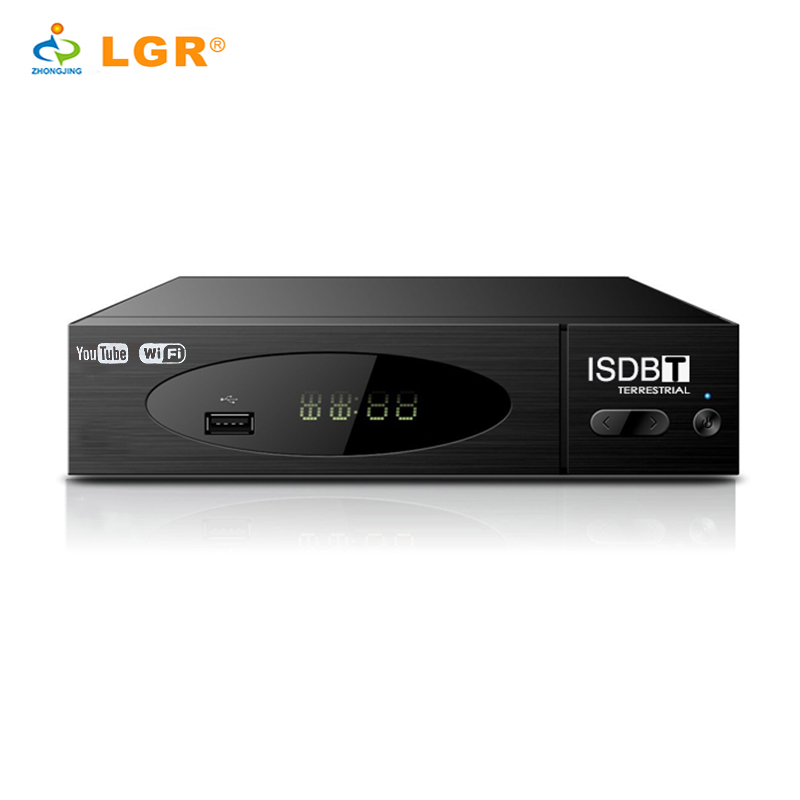

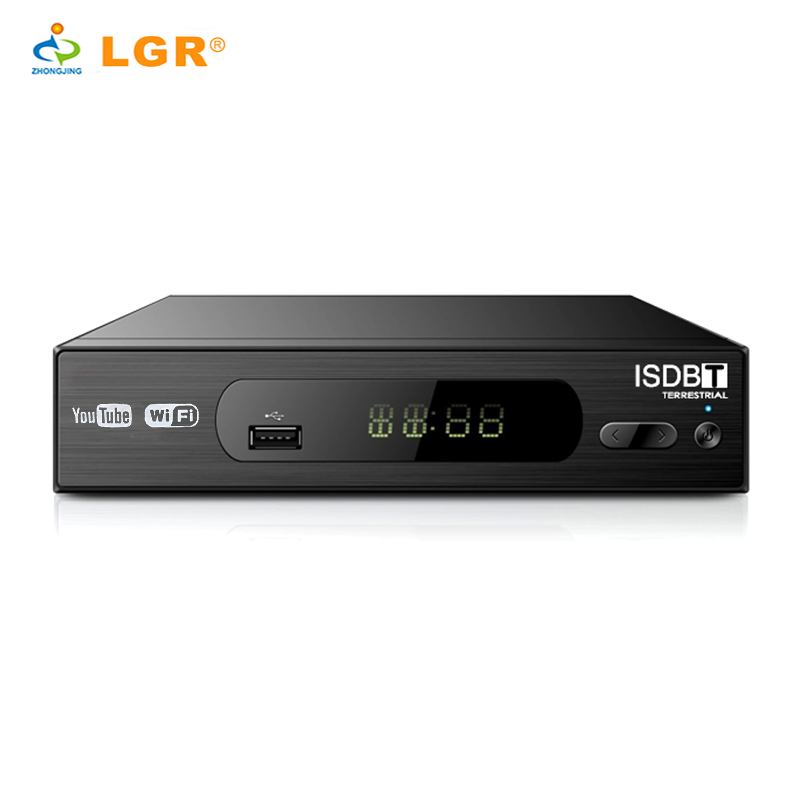

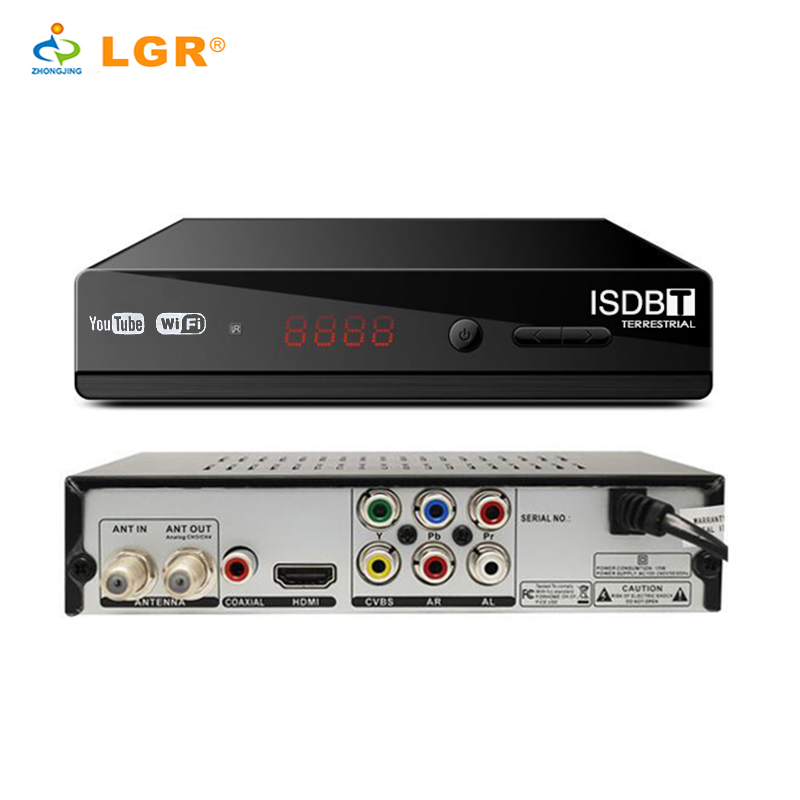

General Specifications of ISDB-T with USB WiFi  and YouTube terrestrial receiver

Main chipset: AVL1508

Support YouTube  and WIFI

Key Selling Features:

Full HD ISDB-T Receiver

USB Media player

Easy to use and attractive menu
1. Fully SD/HD ISDB-T compliant,support full HD 1080p
2.Support SD/HD MPEG2 and MPEG4 AVC H.264
3.Auto and manually scan all available TV and radio channels
4.Powerful and highly effective 7-day EPG function
5.Multi-language menu,subtitle and audio output supported,support closed caption(CC)
6.USB 2.0 for PVR,Scheduled PVR,TIMESHIFT,software upgrade and media files playback
7.Support aspect ratio 16:9, 4:3,Pan&Scan,letter box.
8.Support parental local and FAV function
9.Easy to use and attractive menu
10.Support various media files playback as below:
Music: MP3,WMA,WAV,AAC Photo: JPEG,BMP,PNG
Video: MKV,AVI,XVID,MOV,VOB,FLV,DAT,MPEG,MPG,MP4,TS…
Tuner and Demodulation parameter:
RF input frequency: 13-62 Ch(470mHz~806mHz) Bandwith: 6MHz
Demodulation: QPSK,16QAM,64QAM or DQPSK
Code Rate:1/ 2, 2/3, 3/4, 5/6,7/8 Automatic
Guard: 1/4, 1/8, 1/16, 1/32
FFT Mode: 2K, 4K, 8K

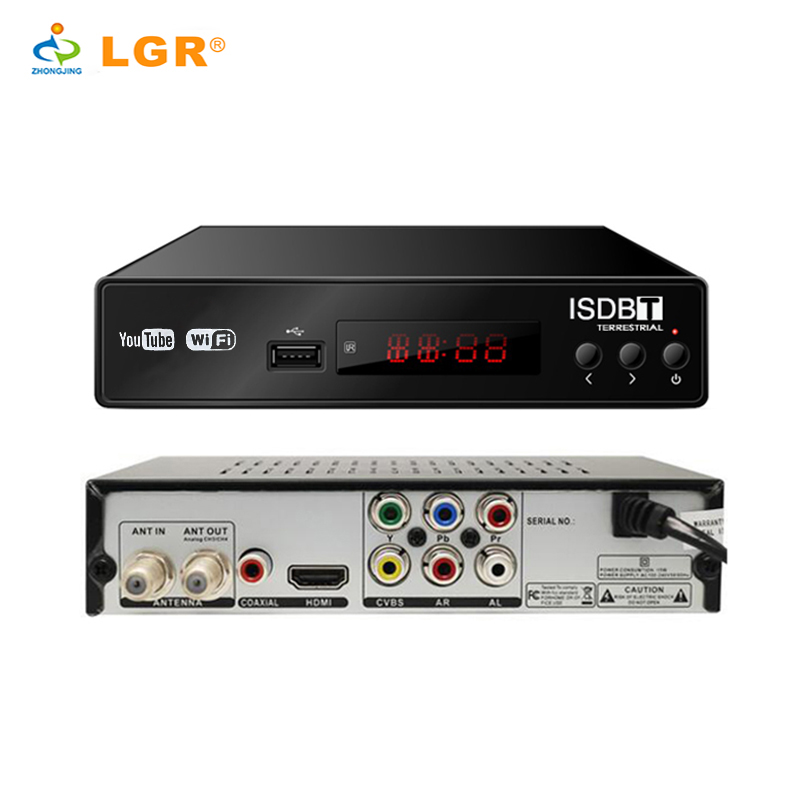

Input and Output:
USB,CVBS,L/R AUDIO,YUV,Coaxial,RF IN,RF loop though
Accessories Included:
Remote control
User manual
AV cable
Hardware Compliance
Power Consumption:MAX 8W
Power Voltage:AC 90~240V
Adaptor Voltage:NO
Power Cord Length:1M

Packing : 1 Color Box

Color box : 198*155*58mm/250*60*255mm

One Color box include:

1* ISDB-T Receiver

1* Remote Controler

1* AV Cable

1* User Manual

Qty per export carton : 20pcs pieces

Meas. per export carton : 375*260*235mm/41*31*33cm

G.W:11KGS

N.W:10KG
