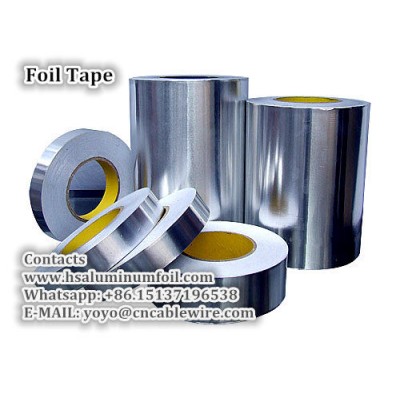

Foil Tape

Foil Tape introduction

Aluminum foil tape with high-quality pressure-sensitive adhesive, good viscosity, strong adhesion, anti-aging effect! Insulation performance greatly improved, specifications are (0.05mm-0.08mm) * various width and length.

Foil Tape Features

1.Aluminum foil tape surface clean, flat, not allowed to have corrosion, holes, brown oil spots, do not allow wrinkles and folding,aluminum foil surface allows doesn’t affect the use of horizontal stripes, bright lines, color difference,etc.

2.Aluminum foil tape end should be neat, no dirt, impurities, etc. There is not allowed serious burr, strung layer, arrows, tower and bruised,etc.

3.Aluminum foil tape surface should be no oil, no smell, wetting tension is not less than 35 dyne. If the customer has special requirements in accordance with the implementation of customer standards.

4.Adhesion test: does not allow adhesion, aluminum foil roll can not be free to open the situation.

Mechanical Properties of 1235 Alloy Annealed Products

Thickness (mm)	Status	Mechanical properties		Pinhole number		Brush water experiment
		Tensile strength (Mpa)	Elongation	Pinhole diameter (mm)	Number
0.012＜0.02	0.H22	50~90	≥2.0	＜0.3	5	Wetting tension> 35 dyne
0.021＜0.04		50~90	≥2.5	＜0.3	0
0.041＜0.05		50~90	≥3.5	＜0.3	0
	H18	≥140	≥1.0	≥1.0
1.Mechanical performance requirements above the required requirements must be reviewed
2.Thickness greater than 0.03mm products for double-sided light products, special circumstances for contract review

Introduction of our company

Gongyi Shengzhou Metal Products Trading Co.,Ltd. is a professional Aluminium Coil Suppliers and Aluminum Circles manufacturers,mainly supply Aluminium Coil,Aluminum Circles,Aluminium discs,Aluminum Sheet,1100 Aluminum Sheet,1050 Aluminum Sheet,1060 Aluminum Sheet, Household Aluminum Foil,Aluminum Foil for Pharmaceutical Packaging,Aluminum Foil Tape,Aluminum Foil for Air Conditioner,Aluminum Foil for Container ,Aluminum Circles for Kitchenware,Aluminum Disc for Cookware,Aluminium Circle Sheet etc. series of aluminum products, sincerely welcome everyone to visit.
