PVC Flat-Twin Cu Cable
Description
1.Operating temperature：70℃
2.Rated voltage：300/500V
3.Standard：JB/T8734.2、BS6004
4.Model：BVVB

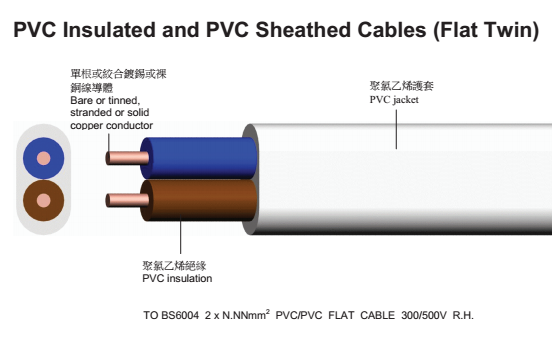

5.Bare or tinned,stranded or solid copper conductor
6.Flame retardant colour-coded PVC insulation
7.Flame retardant PVC jacket
Application
1.Used for fixed wiring
2.Used for high mechanical protection required or humid environment, etc
3.Can be laid out directly or hidden
Technical specification
| Cross-sectional Area | No. & diameter of wire | Reference overall diameter | Reference weight | Min. insulation resistance at 70℃ |
| mm2 | N/mm | mm | Kg/km | MΩ.km |
| 2x0.75 | 1/0.98 | 3.8x6.2 | 42 | 0.012 |
| 2x1.0 | 1/1.13 | 4.1x6.6 | 50 | 0.011 |
| 2x1.5 | 1/1.38 | 4.4x7.2 | 63 | 0.011 |
| 2x2.5 | 1/1.78 | 5.2x8.6 | 93 | 0.010 |
| 2x4.0 | 7/0.85 | 6.0x10.4 | 141 | 0.0080 |
| 2x6.0 | 7/1.04 | 7.0x12.4 | 202 | 0.0065 |
| 2x10 | 7/1.35 | 8.6x14.8 | 315 | 0.0065 |
