AMEISON 698-2700MHz Omnidirectional Antenna 5dbi with N female connector
AMEISON 698-2700MHz Omnidirectional Antenna 5dbi with N female connector
  • >= 500  Piece US $11.000
Supply Ability:
80000 Piece/Pieces per 0
Port:
Shenzhen
Your Email:
Quantity:
Piece
  • Product Detils
  • Company Profile
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
AMEISON
Model Number:
AMXF-7027-5
Product Description

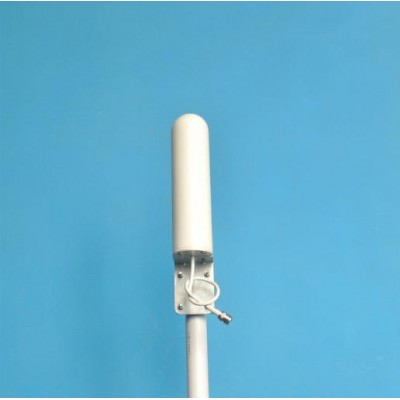

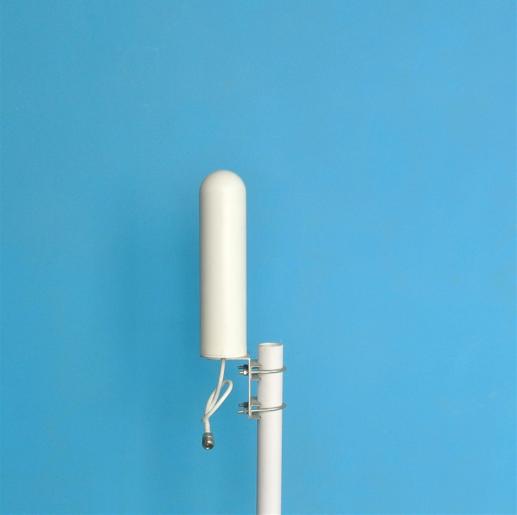

AMEISON 698-2700MHz Omnidirectional Antenna 5dbi with N female connector



Feature

Exquisite appearance

Good impact resistance

waterproofing and anticorrosion ability

Full day working

Optimized dimension

low standing wavestrong anti-interference ability

Application

CDMA/GSM/PCS/2G/3G/4G/LTE/WLAN system

Point-to-multipoint system




AMXF-7027-5

Electrical   Specifications

Frequency rangeMHz

698-960 / 1710-2700

BandwidthMHz

262 / 790

GaindBi

3 / 5

Half-power beam width°

H:360    V:55

VSWR

≤2.0

Input ImpedanceΩ

50

Polarization

Vertical

Maximum input powerW

100

Lightning protection

DC Ground

Cable length cm

30

Input connector type

N female or Requested

Mechanical Specifications

Dimensions (mm)

Φ60*230

Antenna weightkg

0.6

Cable length cm

30

Operating temperature°c

-4060

Rated Wind Velocitym/s

60

Radome color

White

Mounting   way

Pole-holding

Mounting hardwaremm

35-50
