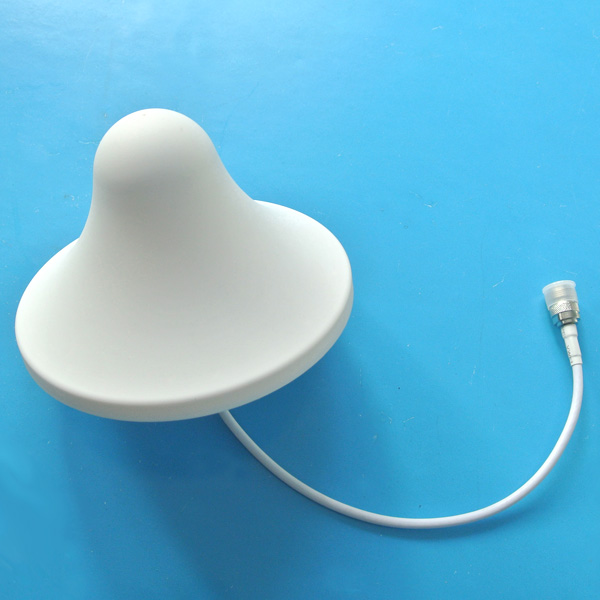

AMEISON 698-2700MHz Omnidirectional Ceiling Dome Antenna with 3dbi N female connector for indoor ceiling mount
Feature：
Exquisite appearance
Suitable for ordinary ceiling mounting
Optimized dimension
Wide frequency band，
low standing wave，
strong anti-interference ability
Application：
Indoor omnidirectional coverage
GSM/CDMA/PCS/3G/4G/WLAN/LTE system
AMXC-7027-3 Electrical Specifications | |
Frequency range（MHz） | 698～960/1710～2700 |
Bandwidth（MHz） | 262/990 |
Gain（dBi） | 3 |
Half-power beam width（°） | H：360 V：55 |
VSWR | ≤2.0 |
Input Impedance（Ω） | 50 |
Polarization | Vertical |
Maximum input power（W） | 50 |
Lightning protection | DC Ground |
Input connector type | N Female |
Mechanical Specifications | |
Dimensions (mm) | Φ165*95 |
Cable length（cm） | 30 |
Antenna weight（kg） | 0.2 |
Operating temperature（°c） | -40～60 |
Radome material | ABS |
Radome color | white |
Mounting way | fastened with screw nuts |
