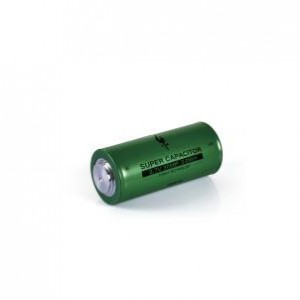

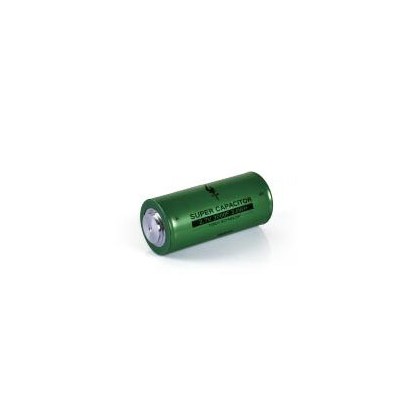

1. Features

Rated voltage of 2.7V

Capacitance ranging from 650F to 3000μF

Large capacitance for high energy density

Low ESR for high power density

Long cycle life

Suitable for quick charge and discharge

2. Applications

Typical applications include wind turbine pitch control, energy regeneration and motor start in escalators, hybrid vehicles, rail, UPS & telecom systems.

3.Ordering Information

CSD03

2R7

308

C54

Series

Temperature characteristics

Rated voltage

Capacitance(µF)

Capacitance tolerance

Size code

Termination finish

Packaging

CSD03

CP: -25℃~70℃

MT: -40℃~70℃

LT: -50℃~70℃(C_R＜2F)

-55℃~70℃(C_R≥2F)

2R7=2.7V

First two digits

represent

ignificant

figures.Third digit

specifies number

of zeros.

Example:

308=3000000000µF

=3000F

J=±5%

K=±10%

M=±20%

Refer to dimensions

X= Aluminium

E= Grid packing

4.Dimensions（size:mm）

Size code	L	L1	D	D1	D2	Weight(g)
C50	57.5±0.5	3±0.05	60±0.5	32±0.5	36±0.5	160±5
C51	80±0.5	3±0.05	60±0.5	32±0.5	36±0.5	260±5
C52	91±0.5	3±0.05	60±0.5	32±0.5	36±0.5	280±10

5.Our advantage

（Quality）

Torch brand products are extensively applied in high-end fields such as aviation, spaceflight, ship, communication, electric power, rail transit and new energy for their leading technology and reliable quality .
Our company has passed several certifications of management system,formed a set of regulation documents.Such as
ISO 9001
ISO 14001:2004
GB/T28001-2001
SA8000:2008SA8000
OHSAS18001
Reach，ROHS
In 2016 Torch’s multi-layer chip ceramic capacitor made new contributions to the key spaceflight missions of China such as the successful first flight of Long-March carrier rocket,the rendezvous and docking between shenzhou-11 and tiangong-2 ,and the first flight of long march-5.

（Manufacturer）

Our company has mastered a series of core technologies ranging from development of material formula product design to production process.We have more than 30 years experience in making capacitor.

（Customized）

Some of our products accept customization.Contact us to know more

（Service）

We have a professional after-sale service team.
