Product Description

Product Application

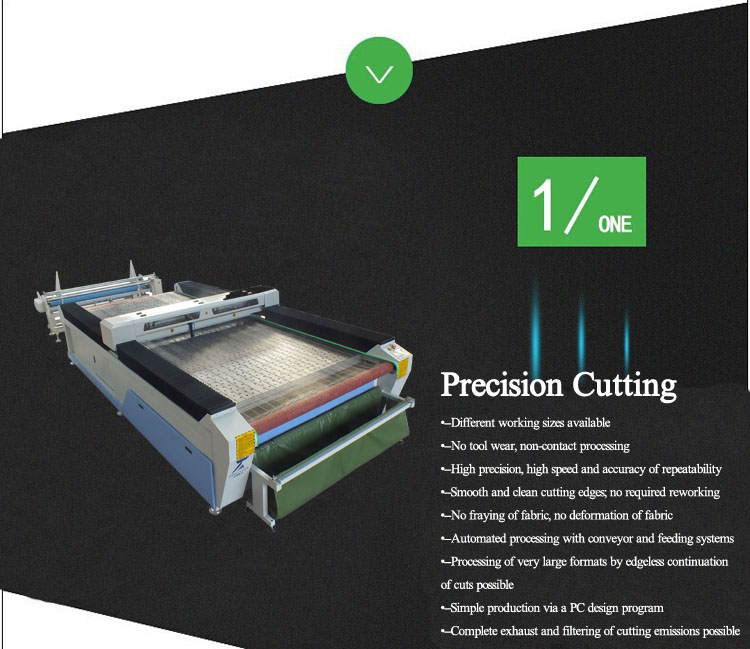

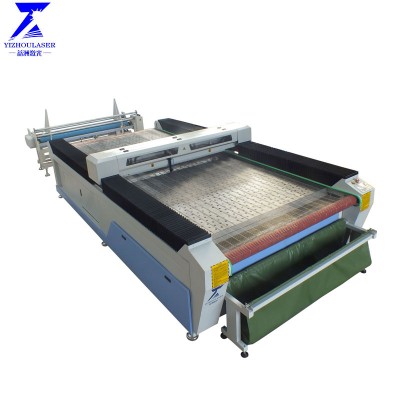

CCD laser cutting machine with vision for sublimated dye textile
This laser cutting machine is equipped with advanced Vision system.Camera auto positioning and Laser cutting applied on printed fabric, such as digital printed apparel, sublimated sports garment, cycling clothes, racing suits, swimming suit, printed toys, carpet, home furnishing, banners, flags and so on.

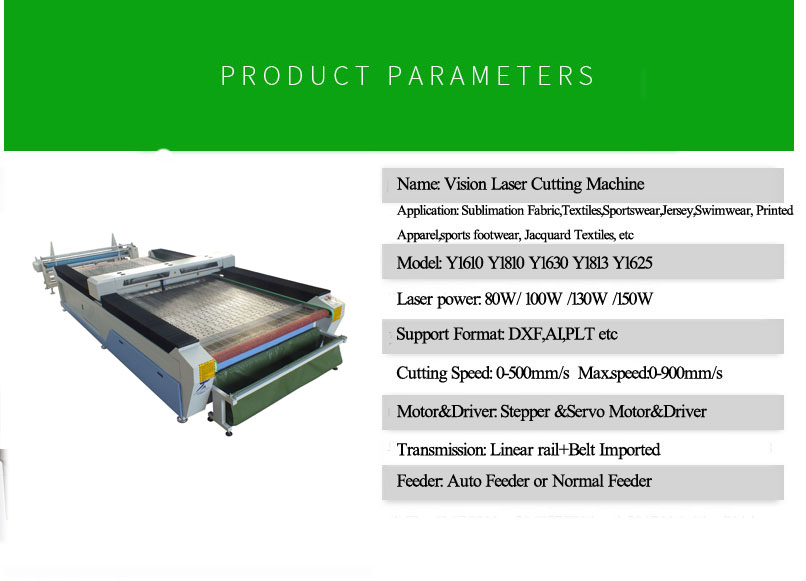

SPECIFICATIONS FOR CNC LEATHER CUTTING MACHINE
Driver&Motor	Driver	Stepper driver	Leadshine
	Motor&Driver Power	servo	Delta
	Motor	servo motor	delta
Main performance parameters	Working size	1600*3000mm	1600*3000 mm
	Travel speed (max. & min.)	900mm/s	10mm/s
	Table	auto feeding	stainless steel

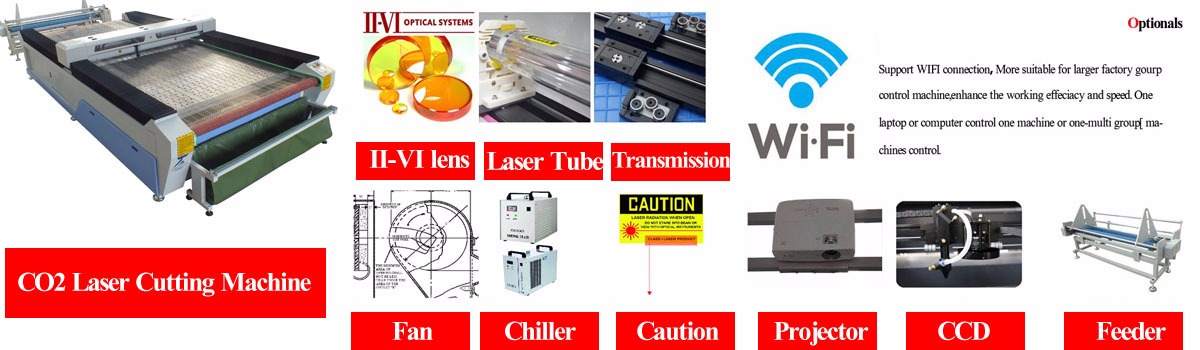

Laser details	Laser power/Life	150W EFR/RECI	10000 hours
	Cooling type	water chiller	CW-5200
	Laser tube	L:1650 mm	Dia. 80mm

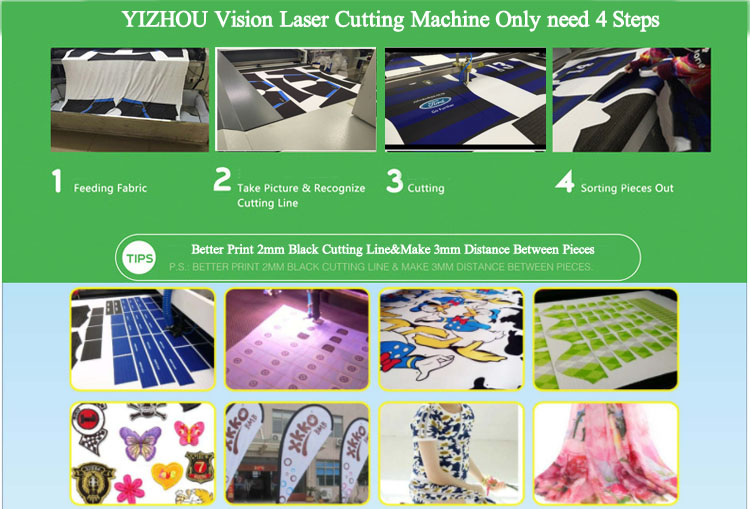

Work Flow

Features

* Fast and Precise Cutting of Dye Sublimated Textiles
* No need to create cut designs
* Fabric deformation or printing error can still be cut accurately
* Cuts Any Type of Textile

Step 1

Various graphics printed on fabric and loaded to the laser cutter working table with our auto-feeder.

Step 2

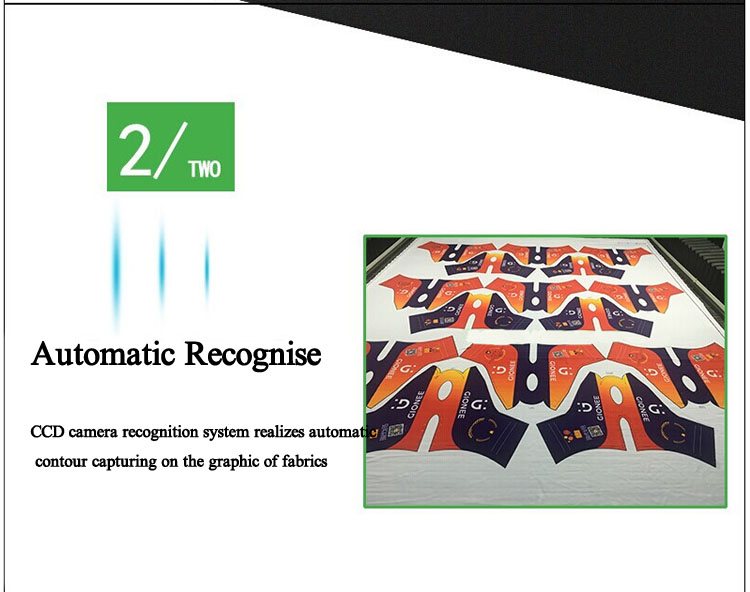

Material information extracted by the HD Camera automaticly

1:1 size, error code:0.02mm

Step 3

The software recognize outer contour of graphics, then automatically create the cutting path

Our Service

Packing & Delivery

Packaging
Size	2.3m (L) * 2.2m (W) * 1.3m (D)
Weight	0.7T
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
