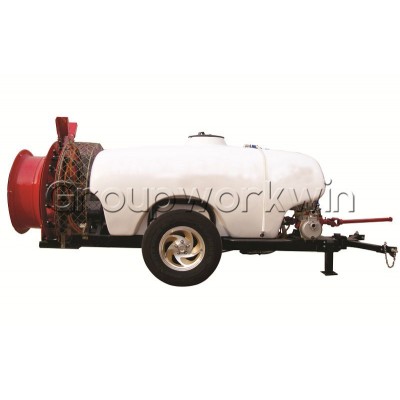

Trailed Air Blast Orchard Sprayer Specifications:
Features:
• Large chemical tank capacity reduces times of adding water; High efficiency, suitable to large area spraying of orchards, grassland;
• Large wind capacity and long-distance is suitable for wide row distance and leafy orchards;
• Fast wind speed, good penetrating; more spraying areas;
• Uniform spraying and droplet particles can effectively increase the adhesion and utilization of chemical.
Machine | Trialed | |
Working mode | Air blast, double side spraying | |
Chemical tank capacity (L) | 1500 | |
Pump | Discharge (L/min) | 120 |
Rotation speed (rpm) | 540 | |
Working pressure (mpa) | 0.8 | |
Max pressure (mpa) | 3.5-4.0 | |
Fan rotation speed (rpm) | 2200 | |
Matched power (hp) | ≥35 | |
Spraying span (cm) | 1200-1500 (calm wind station) | |
Working speed (km/h) | 4-8 | |
Dimension (mm) | 3750*1410*1600 | |
