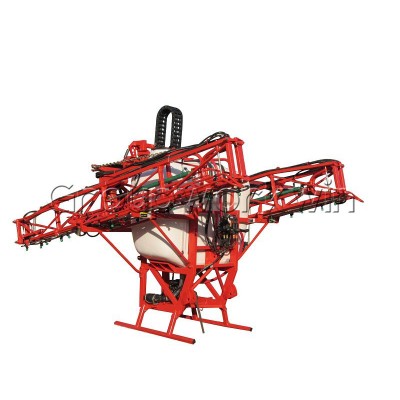

Three Point Mounted Sprayer
Three Point Mounted Sprayer
Supply Ability:
0 per 0
Port:
Your Email:
Quantity:
  • Product Detils
  • Company Profile
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
Model Number:
Product Description

Three Point Mounted Sprayer Specicatifions:


• Three- point mounted machine with fully hydraulic foldable booms;
• Wide working width and high working efficiency;
• Boom lifting and folding is fully hydraulic controlled, saving time and effort;
• Four-step filters can prevent nozzles from blocking;
• Mixing system has reflux and high-pressure mixing configuration, which fully guarantee even liquid and best control of pest and disease;
• 3880 boom sprayer can realize single boom lifting, more suitable for hilly areas;
• 3880E boom sprayer is suitable for long plots, matched power>180hp.

Model

 3880

 3880A

 3880B

 3880C

 3880D

 3880E

 3800

 3800A

Chemical box capacity (L)

1000

1200

1200

1500

1500

2000

1200

1500

Spraying span (m)

18

18

21-22

18

21-22

21

25

25

 Chemical box material

Fiberglass

Lifting and folding mode

 Full hydraulic control

Spraying angle(°)

110

Dimension
(mm)

4120*3500*2910
3880E:3500*3450*2900
Transport:2700*1980*2130

Weight(kg)

1200-1500

Discharge volume of membrane pump (L/min)

180-210

Max rotation speed (r/min)

540

Max pressure of pump (mpa)

1.5-2.0

Working pressure (mpa)

0.3-0.5

Matched power (hp)

110-300

Filter mesh number (mesh)

25-60

Working efficiency (ha/h)

10-13

Mixture mode

High pressure influx and reflux mixture

Folding

Hydraulic folding
