DESCRIPTION

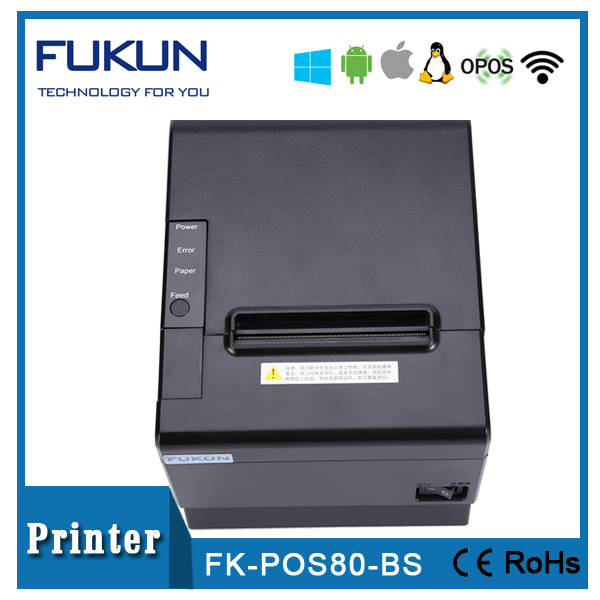

FK-POS80-BS is a thermal POS printer with auto-cutter. It has good printing quality, high printing speed and high stability, which is widely used in POS system, food service industry and many other fields.

FK-POS80-BS connects other devices via parallel, Ethernet or USB port. It offers drivers for WINDOWS and LINUX operating systems.

The supported operating systems are as below:

WINDOWS XP

WINDOWS 7 32/64

WINDOWS 8

WINDOWS 10

UBUNTU 12.04 32/64

UBUNTU 14.04 32/64

Specification

Thermal Printer Item No.:FK-POS80-BS		Thermal Printer Parameter
Thermal Printer Printing parameter	Printing method	Thermal printing
	Resolution	203DPI,8 dots/mm
	Printing speed	250mm/s
	Interfaces and printer types	Standard: cash drawer/USB interface Optional: Serial/parallel/Ethernet ports
Power Supply	Input	100-240V AC,50-60HZ
	Output	24V DC-2.5A
	External Only	Power Adaptor
Command set	/	ESC/POS compatible commands
FLASH	FLASH	FLASH 8K bytes, NV bitmap 256K bytes
Printer Character	Chinese	GB18030 24×24
	Words, figures	ASCII 9×17,12×24
	User-defined	Support
	Code Page:	45 kinds of code page
Printer Bar codes	1D	UPC-A、UPC-E、EAN-8、EAN13、CODE39、ITF、CODEBAR、CODE128、CODE93
Printer Bar codes	2D	QR Code
Printer Paper Requirement	Type	Standard thermal receipt paper
Printer Paper Requirement	Width	79.5±0.5mm
Physical characteristics	Operating condition	-10℃ ~ 50℃，25% ~ 80%RH
	Storage condition	~40℃ ~ 70℃，≤93%RH（40℃）
	Outline dimension	145mm×195mm×144mm（W×L×H）
	Weight	1.5Kg
Reliability	TPH life	150km
	Cutter life	2,000,000 times
	Motor life	360,000 hours
Thermal Printer Software function	Driver procedure	Windows（WIN7/WIN8/WIN10/Vista/XP/2000） Ubuntu 12.04 32/64, Ubuntu 14.04 32/64

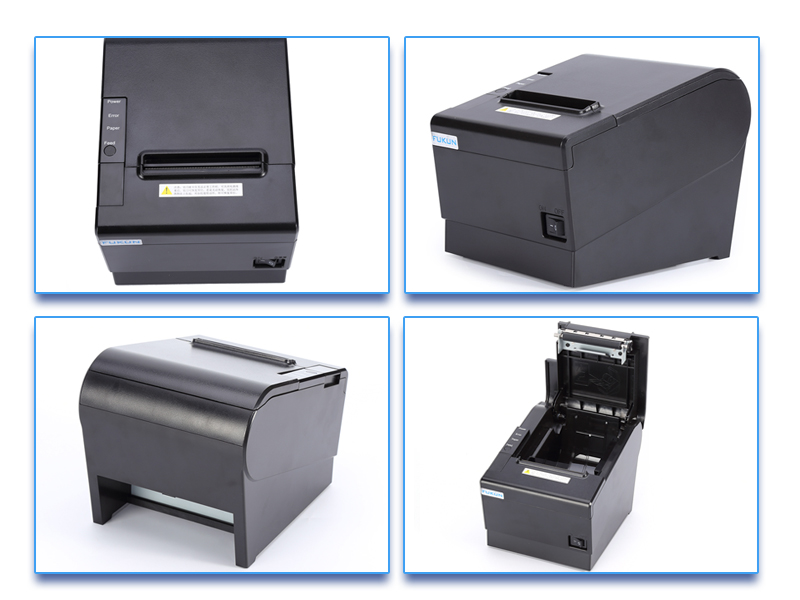

PRODUCT OVERVIEW:

Features:

Company Information:

80 printer-1 .jpg thermal pos-2.jpg thermal printer supplier-3.jpg
