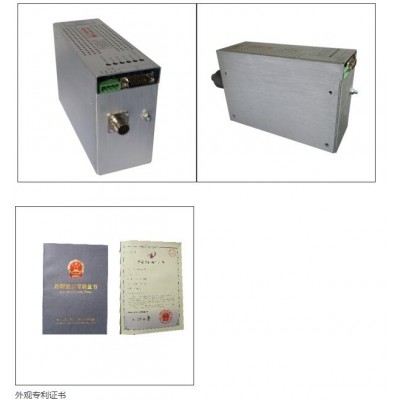

The XRN Series is the result of wisman’s exceptional high voltage packaging and surface mount fabrication techniques, coupled with its proprietary encapsulation technology producing this ultra compact-sized OEM 50Watt X-ray generator module.The XRN Series is designed to power grounded cathode X-ray tubes from a variety of well known manufacturers. It features a 0 to 50kV high voltage output, and up to 2mA of emission current limited to 50, 65 or 75 Watts, operating from a +24Vdc input. The XRN utilizes a closed loop filamentry beam control circuit to provide a highly regulated beam current. The ground referenced low noise dc filament supply operates between 0.3 and 3.5 amps. Offering tight regulation, high stability and low ripple, the XRN provides users both local and remote analog control to set beam voltage, emission current and filament current limit.An optional USB, RS-232  interface is available.

TYPICALAPPLICATIONS
Powering grounded cathode X-ray tubes from
Kevex, Oxford, RTW, Superior, Varian and Trufocus.
OPTIONS
XCC XRW Compatible HV Cable (50kV only)
SIC Standard Interface Controller
(USB & RS-232)
5VPM 0 to 5 Volt Programming and Monitor Scaling
GB Grid Bias Option

Originally designed to provide up to 75watts with a maximum of 50kV or 2mA for cathode grounded X-Ray tubes, this new product provides up to 65kV with a maximum current of 2mA and power of 65W. The additional output voltage is crucial to support increasingly demanding analytical X-Ray applications.

Powered via a 24Vdc input, the XRN features closed loop, emission current beam control, with a DC filament operating between 0.3A and 3.5A. The XRN provides tight regulation, high stability, low ripple, and both local and remote analog control to set beam voltage, emission current and filament current limit.

Available with an optional UBS/RS-232 digital interface or a Grid Bias option to drive popular gridded X-Ray tubes, the XRN can be custom configured to address a wide variety of applications.

wisman’s high voltage electro mechanical designs, proprietary components, and encapsulation technology ensure long term reliability within these ultra compact  modules.  Dimensions:
50kV Unit: 5.00”H x 2.87”W x 8”D
(127.00mm x 72.90mm x 203.25mm).
65kV Unit: 5.00”H x 2.87”W x 9”D
(127.00mm x 72.90mm x 228.65mm).
XCC Option: 5.00”H x 2.87”W x 9”D (50/75W units only)
(127.00mm x 72.90mm x 228.65mm).
SIC Option: 5.75”H x 2.87”W x 8”D
(146.05mm x 72.90mm x 203.25mm)., the XRN is among the smallest  X-Ray generator on the market today.
