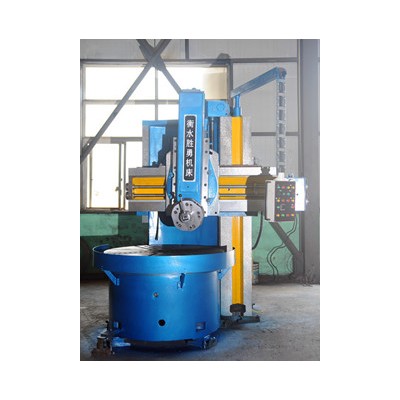

Single column cnc vertical lathe VTL machine for metal working
Single column cnc vertical lathe VTL machine for metal working
  • >= 1   US $50,000.000
Supply Ability:
5 per 0
Port:
Tianjin
Your Email:
Quantity:
Contact supplier Start Order Add To Cart
  • Product Detils
  • Company Profile
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
hengshui shengyong
Model Number:
C5125
Product Video
Product Description

Technical specification of Automatic cnc vertical turret lathe tool C5125

1 Table diameter 2300mm

2 Maximum turning diameter 2500mm

3 Maximum height of workpiece 1350mm

4 Maximum weight of workpiece 10 t

5 Speed change of table 2.5-80 r/min

6 Working table Step of rotation speed 16

7 Feed rates 0.8-86 mm/min

8 Step 12

9 Horizontal travel of tool post 1600mm

Vertical travel of tool post 915mm

10 Horizontal travel of side cutter bar 750mm

Vertical travel of side cutter bar 1100mm

11 Crossrail travel 850mm

12 Maximum section scale of tool bar 35×45mm

13 Power of main motor 45 kw

Revolutions 1470 r/min

14 Power of Feed motor 1.3/1.7 kw

Revolutions 940/1440 r/min

15 Machine weight 23 t

16 Overall dimensions(L×W×H) 3450×3430×4100 mm
