Hengshui Shengyong Heavy-duty Machine Tool Manufacturing Co.,Ltd specializes in the researches, developments, manufactures and sells of metalworking machines: Vertical lathe machines,Vertical Turning Lathe, Vertical turret lathe ，Single column vertical lathe , Double column vertical lathe ,Heavy duty horizontal lathe machine, Gantry milling machine, boring milling machine , etc.

Single column Vertical Lathe machine model:

C5112/C5116/C5118/C5120/C5123/C5125/C5126

Maximum turning diameter: 1250/1600/1800/2000/2300/2500mm

Maximum height of workpiece: 1000/1000/1000/1200/1300/1350 mm

Maximum weight of workpiece 3.2 / 5 / 5 / 6 / 8 / 10 t

Double column Vertical Lathe machine model:

C5225/C5232/C5240/C5250/C5263

Maximum turning diameter:2500/3150/4000/5000/6300mm

Table diameter : 2500/3150/4000/5000/6300 mm

Our factory video:

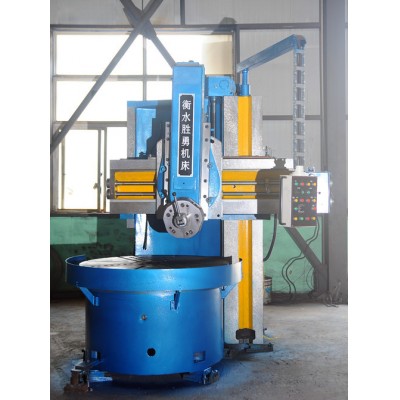

Technical specification of Vertical turning center lathe machine C5125

1 Table diameter 2300mm
2 Maximum turning diameter 2500mm
3 Maximum height of workpiece 1350mm
4 Maximum weight of workpiece 10 t
5 Speed change of table 2.5-80 r/min
6 Working table Step of rotation speed 16
7 Feed rates 0.8-86 mm/min
8 Step 12
9 Horizontal travel of tool post 1600mm
Vertical travel of tool post 915mm
10 Horizontal travel of side cutter bar 750mm
Vertical travel of side cutter bar 1100mm
11 Crossrail travel 850mm
12 Maximum section scale of tool bar 35×45mm
13 Power of main motor 45 kw

Revolutions 1470 r/min

14 Power of Feed motor 1.3/1.7 kw
Revolutions 940/1440 r/min
15 Machine weight 23 t
16 Overall dimensions(L×W×H) 3450×3430×4100 mm
