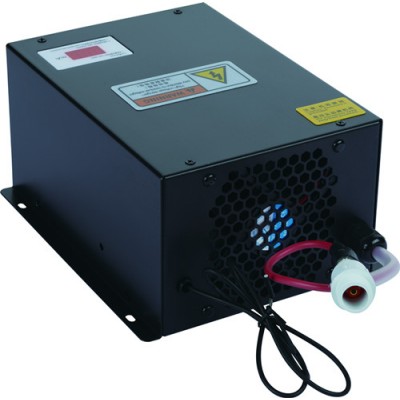

LCD Screen AC110V 60W HV Carbon Dioxide Powersupply

BR-60W CO2 laser power supply

Feature

1.This LCD screen CO2 power supply has high efficiency and quick response with its zero current half bridge soft switching circuit. Thus it is easy to cooperate with most brand 60W co2 laser tube.

2.This 60W CO2 laser power supply terminal control is simple and adapted to high and low level signals. TTL level can be used to control the start and stop of laser power. At the same time, an abnormal protection switch was added to detect if the external water is ventilated or not.

3.Both analog signals of 0 to 5V and PWM signals are used to control and regulate this AC110V CO2 power supply’s output laser power.

4.This HV carbon dioxide power supply has good grounding protection

5.With advanced open circuit protection, the 60W CO2 power supply can work in an open-circuit state for a short time, which can avoid the damage of the LCD screen CO2 power supply caused by the bursting of the laser tube.

6.This AC110V CO2 power supply can adopts ether external LCD digital display module by network cable,which can show HV carbon dioxid power supply’s working current,working statues and failure code.  It is very good function for both machine factory and machine users

7.This BR-60W CO2 power supply uses ordinary H/L/P/G/IN/5V terminal block to input laser control signal and black steel case.

8.The HV carbon dioxide power supply use one PCS fan for cooling. It use Japan’s bearing and make the fan works for very long time.

Specification
