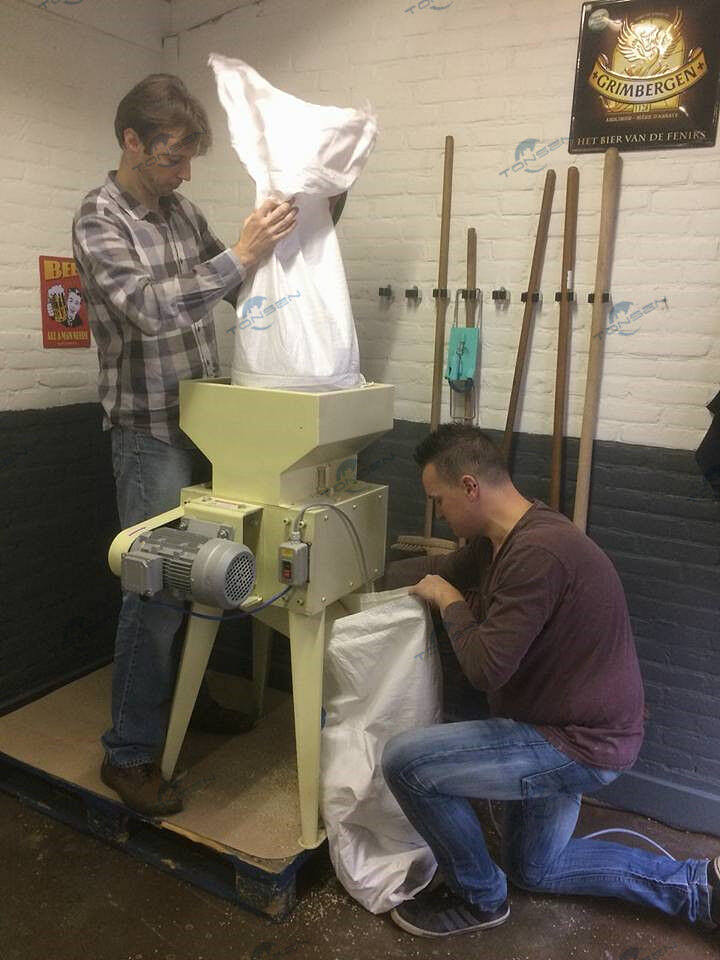

1.Milling System

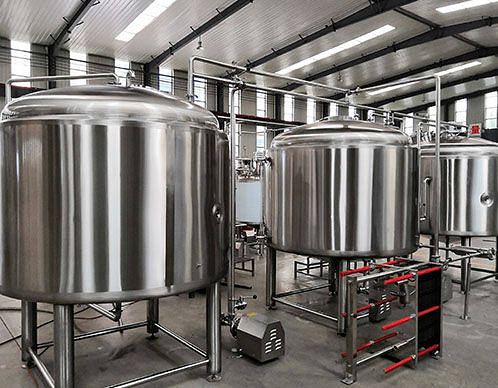

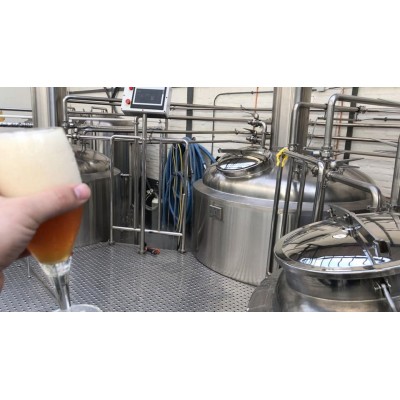

2.Brewhouse System

Heating Methods: Electric, Steam, Gas fired

Vessels: 2/3/4/5 Vessels;

Regular: MLT+BKW+HLT

Plate Heat Exchanger

Motor: CE/UL Listed

Pumps: CE/UL Listed

Oxygenator

Working Platform

Brewhouse Pipelines and Valves

*Optional:
Grist Case

Wort Buffer Tank

Hop Back

Platform with Sink

Flowmeter

3.Fermenting system

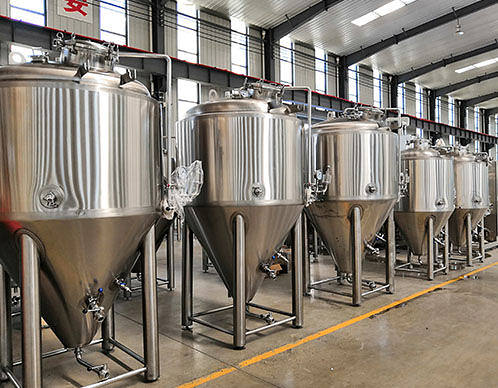

10BBL or 20BBL Fermenters

Cooling Jacketed Conical

Insulated PU 80~ 100mm

Working Pressure: 0.15-0.2Mpa

*Optional
Carbonation Stone

Level meter

Side Manway

Red copper Layer

Dry Hop Dose Device

Others

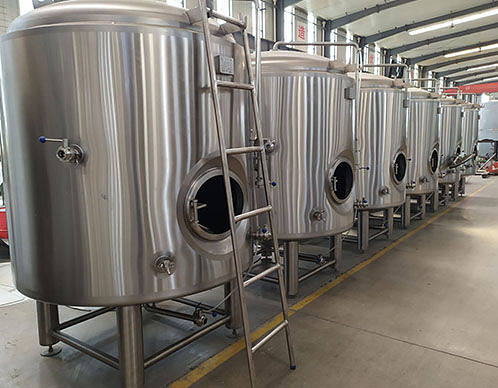

4.Beer Bright Tank

Standard stainless steel tank for beer maturation and serving.

Single layer type, Horizontal type, stacked type are available.
Our Brite Tank available from 1HL to 100HL with an average 10% Head Space. All tank have a Dish top & bottom, Cylinder body. Certified stainless steel material for all tanks, with 100% TIG welded joints and seams with sanitary interior polish. Dimple Plate jacket for Glycol cooling & high efficient Polyurethane foam insulated.  All tanks use Tri-clamp connections, are designed for up to 14.7 PSI and tested at 30 PSI.

We can custom fabricate any tank to meet your brewery’s space and height restrictions.

Standard Features:

•   Dish Cover at top & bottom, with an average of 10% head space

•   Dimple plate jacket for glycol cooling

•   Interior shell: 304 stainless steel, thickness 3mm /11 gauge

•   Cooling jacket: 304 stainless steel, thickness 2mm /14 gauge

•   Exterior shell: 304 stainless steel, thickness 2mm /14 gauge

•   2” Polyurethane insulation

•   Interior surface to finish pickled and passivated

•   Exterior surface to brushed, #4 finish Or Interior surface to polished to RA≤0.22μm Exterior surface adapts satin polish.

•   Side manway, shadowless

•   Accessories:Sample Valve x1;Pressure relief/vacuum valve x1; Temp. sensor / thermometer x1;Carbonation Stone x1; Bottom outlet with butterfly valve x1;Spraying Ball with down tube x1;Stainless pipe legs with adjustable foot pads x4.


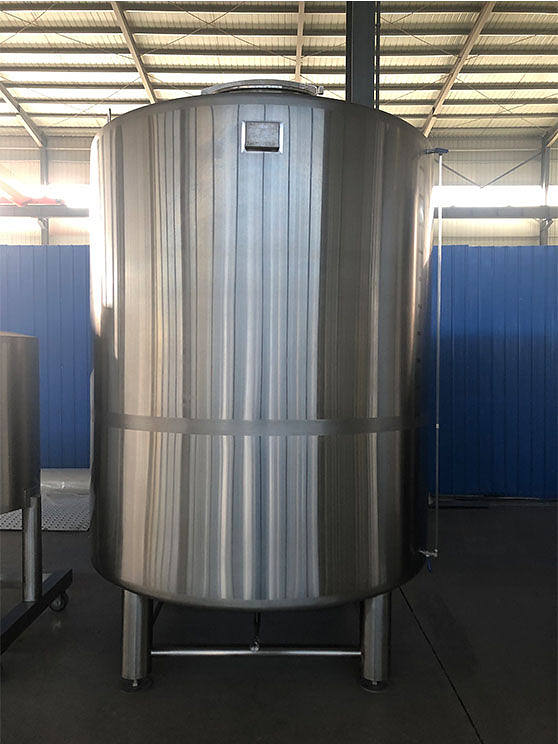

5. Cooling system

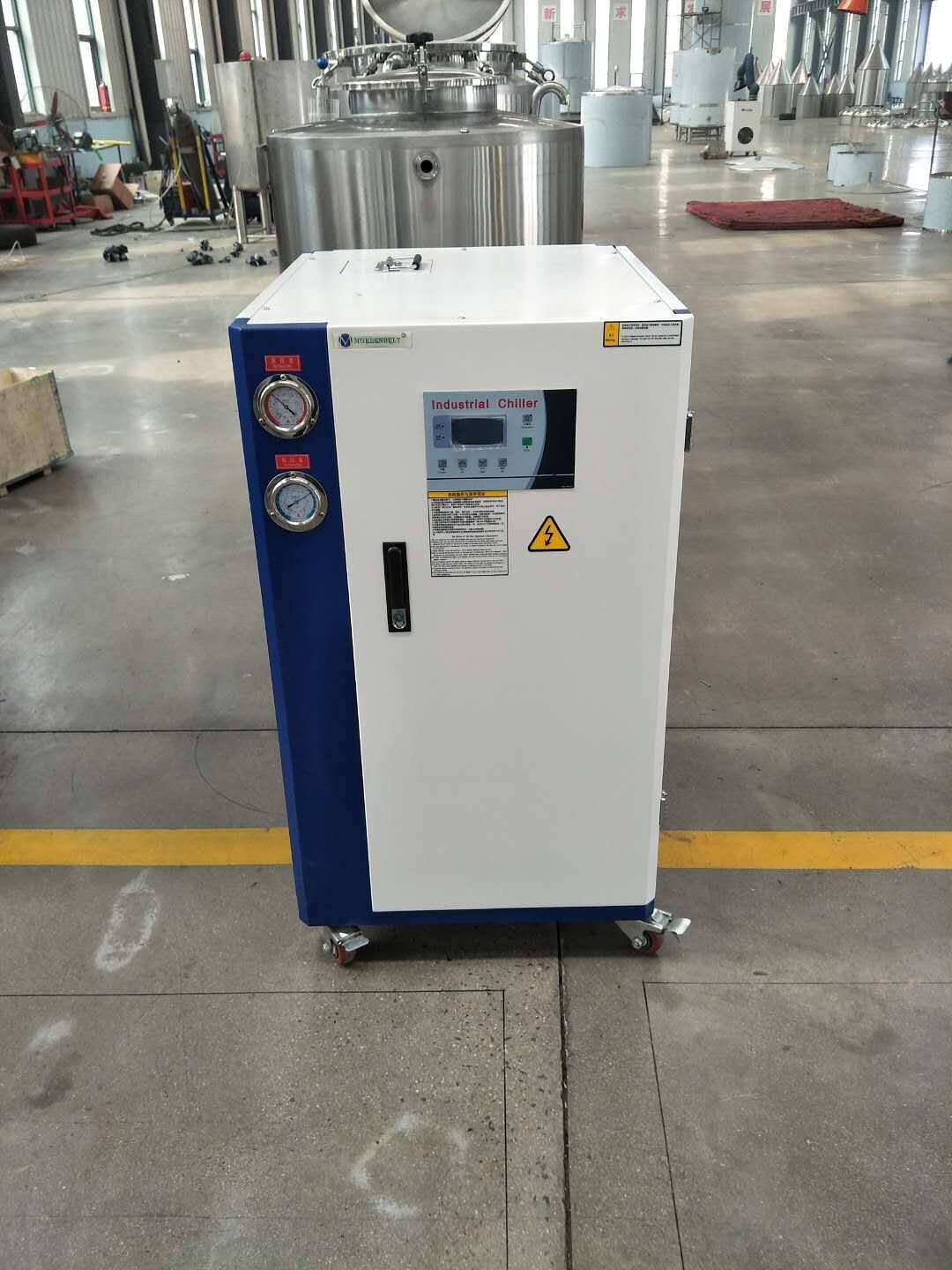

Glycol Water Tank 30BBL
Insulated with PT-100Chiller
Cooling Pump, CE/UL Listed

5.Brewery CIP Station
Alkali Tank

Sterilization Tank

Interior Finish Polish: 0.4~0.6μm

pipelines and Valves

CIP PumpCE/UL Listed

CIP Hose

*Optional
Heating Element

Controller

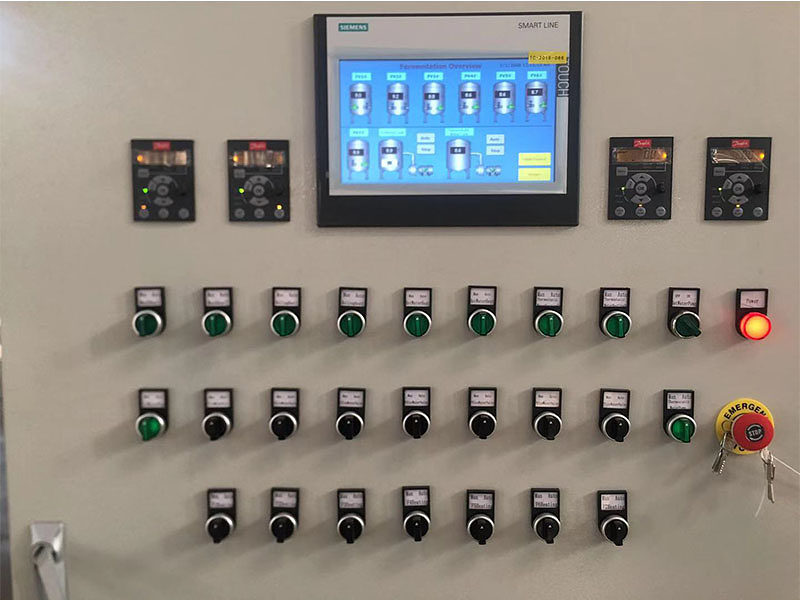

6.Controlling system

PID Type: Digital Display

PLC Type: With Siemens Touch Screen

Basic:

MLT Temperature Setting

BKW Temperature Setting

HLT Temperature Setting

Fermentor Temperature Setting

Gly Water Tank Temperature Setting

Pump Speed Control by VFD, DANFOSS

Agitator Speed Control by VFD, DANFOSS

*Others

Pneumatic Valves Controller

Flowmeter
