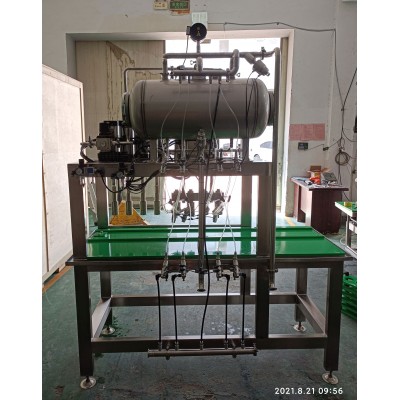

Small Beer Bottle Filling Capping Machine Main Technical Parameters

Main function and feature
1,Automatic control by PLC, all parameters can be adjusted.

2,Filling and capping process can be finished in this machine at one time.

3,With CO2 pressurization and could add vacuum.

4,Adopt isobar filling method and with unique pressure maintaining system,performance stable and reliable, beer loss minimum.

5,With pressure compensator, to guarantee a stable filling process.

Working process:

Fix the bottles-CO2 purge- isobaric-filling- pressure stabilization-pressure relief-stop-move the bottles to the capping stations--capping--take the bottle
Vacuum:Fix the bottles-purging-vacuumizing-isobaric-filling-pressure stabilization--pressure relief--stop--move the bottles to the capping stations--capping--take the bottle

*Tonsen Brewhouse System
Brewhouse is various in combinations of vessels, of course to achieve the same four steps mashing, lautering, boiling, whirlpool, by special brewing intentions of brewer including wort output, wort gravity, sparging water, brews in certain time, brewing method etc. Tonsen accepts special design for these variations.
Heating Methods: Electric, Steam, Gas fired
Vessels: 2/3/4/5 Vessels;

Regular: MLT+BKW+HLT

Plate Heat Exchanger

Motor: CE/UL Listed

Pumps: CE/UL Listed

Oxygenator

Working Platform

Brewhouse Pipelines and Valves

Optional:

Grist Case

Wort Buffer Tank

Hop Back

Platform with Sink

Flowmeter

*Tonsen Fermenting system:
according to our standard configuration, the complete beer brewing equipment with 6pcs two batches beer fermentation tanks or with 12 pcs one batch fermentation (based on 12 days fermenting period).

The inside and external of tanks are adopt international standards 304 stainless steel material, mirror polished up to ≤0.8um≤0.6um≤0.2um polishing quality standards, fully meet the PLC automatic cleaning and disinfection of the controlled system requirements. Cone 60° resist compression design, with sample valve, CIP arm, racking arm, pressure gauge, solenoid valve, safety valves and so on.

*Tonsen Bright beer tank/Serving Tank:
Effective volume: 100L-10000L/1BBL~30BBL/1HL~100HL

Type: veritical type, easy cleaning; horizontal type, space saving

Design pressure: 0.3Mpa

Working pressure: 0.2Mpa

Materials: 304 Stainless Steel/316 Stainless Steel Option

Control System, CIP arm and 360° spary ball
