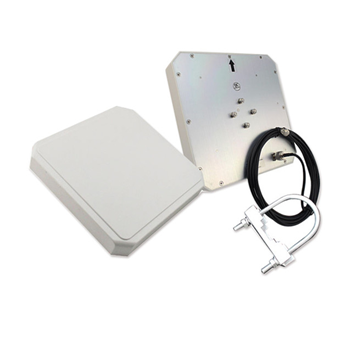

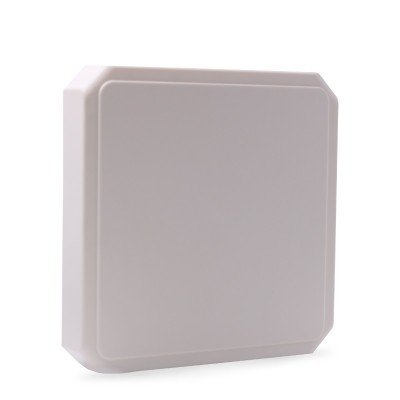

High Quality UHF Circular 9dbi Antenna
Model Number: ST-AN9002C
General Descriptions
ST-AN9002C is high performance UHF circular 9dBi antenna and the reading distance up to 6-8 meters. It is widely used in RFID system such as logistics, vehicle access control, and anti-counterfeit and industrial production process control system.
Technical Specifications
Model | ST-AN9002C | |
Electrical specifications | ||
Frequency range (MHz) | 902-928Mhz/865~868Mhz | |
Polarization | circular | |
Gain(dBi) | 9dBi | |

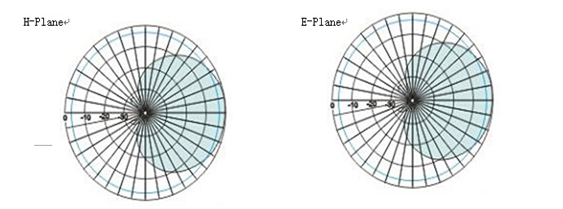

Half-power beam width(°) | Hor:60 Ver:55 | |
Front-to-back ratio(dB) | ≥23 | |
Impedance(Ω) | 50 | |
VSWR | ≤1.3 | |
Maximum input power(W) | 100W | |
Lightning protection | DC Ground | |
Mechanical specifications | ||
Connector | N-female | |
Connector position | Bottom | |
size（mm） | 257×257×33mm | |
Packing size（mm） | 300×300×80mm | |
Antenna weight（kg） | 1.0kg | |
Packing weight（kg） | 1.6kg | |
Wind loading area(㎡) | ≤0.2 | |
Rated wind velocity(m/s) | 60 | |
Reflector material | Aluminum | |
Radome material | ABS | |
Radome color | white | |
Operating temperature(℃) | -40～80℃ | |
| ||
