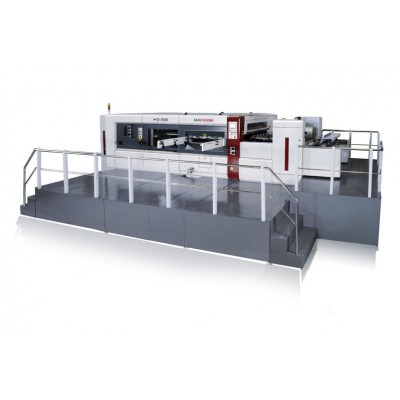

MWZ1300N/MWZ1450N/MWZ1620N/MWZ1850N Lead edge feeder automatic die cutting machine with stripping section.
MWZ1300N/MWZ1450N/MWZ1620N/MWZ1850N Lead edge feeder automatic die cutting machine with stripping section.
FOB Price:
US $200,000.000 / Set
Min.Order:
1 Set/Sets
Supply Ability:
40 Set/Sets per 0
Port:
qingdao
Your Email:
Quantity:
Set
Contact supplier Start Order Add To Cart
  • Product Detils
  • Company Profile
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
Model Number:
Product Description

This series is our high-end standard range.They are able to handle all grades of corrugated board from 1-8.5mm.Generous speeds up to 4,800sph on some models, all with lead edge feeder, complete stripping, non-stop delivery and safety detection,ensuring die-cutting process is of high quality and efficient.


Technical specifications


ModelMWZ 1300NMWZ 1450NMWZ 1620NMWZ 1620N
Max. paper size1330×980mm1480×1080mm1650×1210mm1880×1420mm
Min. paper size550×480mm600×500mm650×500mm650×550mm
Max. cutting size1330×960mm1450×1050mm1620×1190mm1850×1400mm
Max. cutting pressure250×104N300×104N300×104N350×104N
Stock range1mm≤Corrugated board≤8.5mm1mm≤Corrugated board≤8.5mm1mm≤Corrugated board≤8.5mm1mm≤Corrugated board≤8.5mm
Cutting precision±0.5mm±0.5mm±0.5mm±0.5mm
Max. mechanical speed4800s/h4200s/h4000s/h3500s/h
Cutting rule height23.8mm23.8mm23.8mm23.8mm
Pressure adjusting range±1mm±1mm±1mm±1mm
Min. front margin8mm8mm8mm8mm
Inner chase size1330×1004mm1480×1104mm1650×1224mm1880×1430mm
Paper delivery height1320mm（460mm）1330mm（460mm）1390mm（460mm）1390mm（460mm）
Main motor power15kw15kw18.5kw22kw
Total power25kw31.1kw34.6kw40kw
Machine Dimension (include the  platform)8155×4517×2612mm8650×4917×2627mm9196×5251×2687mm10630×6100×2800mm
Machine Dimension (exclude the  platform,turning frame)7316×2500×2612mm7836×2722×2627mm8368×3165×2687mm9480×3230×2800mm
Tatal weight≈22.5t≈23.5t≈27t≈34t
