You and your customers both seek high quality and reliable productivity. We strive to make sure your needs are reflected in the type of diecutter we can offer to you.

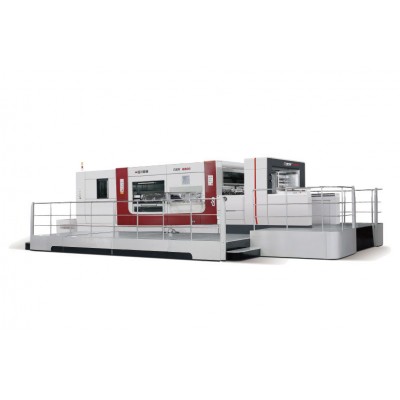

The machine embraces advanced technology to ensure high production speed, shorter make-readies and perfect quality.
Maximum speed is 5,500sph, which helps you with bulk production without detracting from cutting quality.
The extensive R&D afforded to each component guarantees the highest quality at high speeds. The precision lead edge/ cassette feeding device effectively prevents scratches on printed and coated surfaces. The main gear drive gives a stable and strong performance with a high working efficiency via its full stripping and non-stop delivery features.
| Model | 1650G | 1650GT |
| Max.paper size | 1650×1200mm | 1650×1200mm |
| Min.paper size | 650 x 500mm | 650 x 500mm |
| Max. cutting size | 1630x 1180mm | 1630x 1180mm |
| Max. cutting pressure | 450x104N | 450x104N |
| Stock range | 1mm≤Corrugated board≤9mm | 1mm≤Corrugated board≤9mm |
| Cutting precision | ±0.5mm | ±0.5mm |
| Max.mechanical speed | 5500s/h | 5500s/h |
| Cutting rule height | 23.8mm | 23.8mm |
| Pressure adjusting range | ±1.5mm | ±1.5mm |
| Min. front margin | 10mm | 10mm |
| Inner chase size | 1660x 1210mm | 1660x 1210mm |
| Paper delivery height | 350mm | 1300mm |
| Main motor power | 22kw | 22kw |
| Totalpower(exclude air compressor) | 37kw | 37kw |
| Machine Dimension (include the platform) | 11200 x 5560 x 2560mm | 11200 x 5560 x 2860mm |
| Machine Dimension(exclude the platfom、turming frame） | 10100 x 3250 x 2560mm | 8850x 3250x 2860mm |
| Total weight | ~38t | ~40t |
