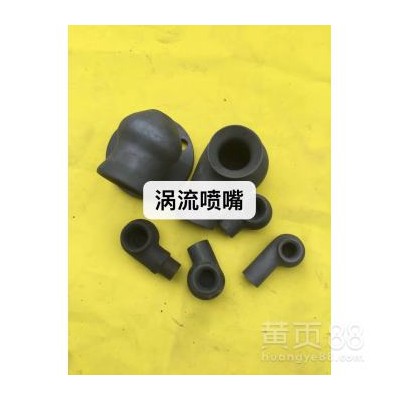

The classification and selection of desulphurization atomizing nozzles can be selected according to the specific use requirements. Separate from dust removal industry, choose spiral nozzle or SMP nozzle. The liquid atomizing particles of this kind of nozzle are relatively large in effect, large in aperture and large in flow, which is also to prevent blockage. The stainless steel material is mainly 316 stainless steel, or plastic, more material, C276 Hastelloy, 1.4529, silicon carbide, ceramics and so on. The spray effect of this nozzle can be described as a heavy rain or a rainstorm.

The spraying industry, such as waste incineration, sewage treatment defogging, dust removal in small cement plants and so on, USES wide-angle solid conical nozzles, mainly 304 stainless steel, with a small amount of plastic material. There is also a special nozzle for the defogger inside the desulfurizer, that is, the nozzle of the defogger is used for the cleaning of the defogger. This kind of nozzle flow size is various, small can reach the state of light rain, big can reach the state of medium rain, advantages and characteristics: uniform atomization, uniform atomized particles. A certain coverage can be achieved at a large Angle. And it is a uniform covering of all solid circles.

Cooling, humidifying industry. Conventional use of fine atomizing nozzle, air atomizing nozzle, combustion nozzle, etc., the use of this kind of nozzle on the water quality requirements are relatively high, especially fine atomizing nozzle on the water pressure requirements are particularly high, a little bit of impurities may make the nozzle blocked, or even scrapped nozzle. And the demand for water pressure is also high, need between 10-70 kilograms of water pressure. Air atomizing nozzle: name interpretation is need compressed air, compressed air through the pressure so as to achieve the effect of water atomization, the advantages of this type of nozzle is, atomization range, after atomized spray particles floating with air flow, so as to achieve a wide range of coverage, plus a single nozzle jet distance can reach 2-5 meters. So the coverage of the nozzle is not a problem, but each product is not, is a little exaggerated gas consumption, a single nozzle an hour of air flow 2-4 square, so for compressed air is also a not small demand.

Fine atomizing nozzle coverage in a square or so, air atomizing nozzle in 5-6 square or so. The use condition of combustion nozzle is relatively loose, the atomizing effect is similar to that of fine atomizing nozzle, but there is no high requirement for water quality and water pressure.

Another atomizing nozzle is used in the cleaning industry, equivalent to the cleaning nozzle. Large Angle coverage for cleaning and so on. So not all cleaning nozzles are fan shaped, and not all spray nozzles can't be used for cleaning. Such as solid conical nozzles, wide Angle solid conical nozzles, spiral nozzles and so on.
